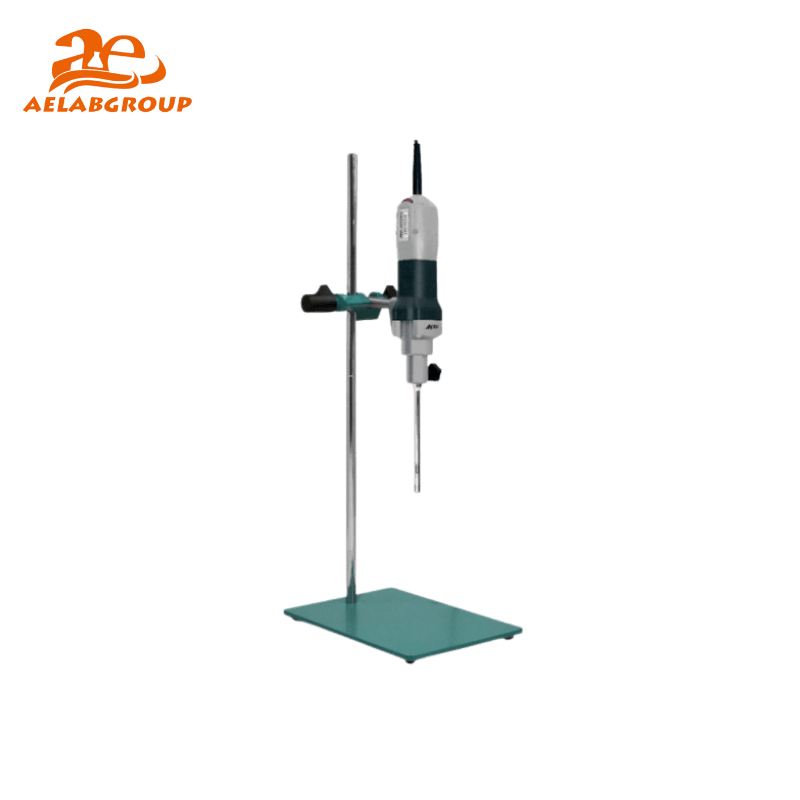

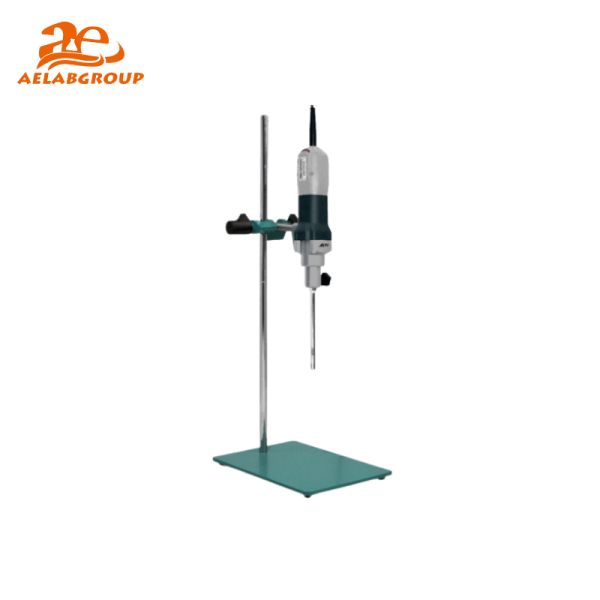

Model :AD18
The AELAB AD18 Homogenizer is a reliable, high-performance laboratory instrument for mixing and homogenizing liquids of varying viscosity and volume. Its stainless steel 316L working head supports multiple configurations (8–24 G) and handles sample volumes from 15 mL to 5 liters. The device features six-gear speed control (13,000–34,000 rpm), a maximum torque of 12 N.cm, and can operate safely at temperatures up to 120 °C. Compact, durable, and equipped with safety protections such as restart and shutdown functions, the AD18 is ideal for biotechnology, chemical, and materials science laboratories.
Need Help with This Product?
The AELAB Homogenizer AD18 is a high-precision, versatile laboratory instrument designed to handle a wide range of mixing and homogenization tasks. It operates on a rated voltage of AC 220 V with input power of 710 W and output power of 430 W, delivering smooth and continuous performance in S1 (continuous) mode. The homogenizer is equipped with a stainless steel 316L working head and supports multiple configurations, including 8, 10, 12, 18, and 24 G, accommodating sample volumes from as small as 15 mL to as large as 5 liters.
Designed for efficiency and durability, the AD18 features a six-gear speed control knob with an adjustable idle range of 13,000–34,000 rpm and a maximum working head torque of 12 N.cm. It is capable of handling liquids with viscosities up to 5,000 mPa·s and temperatures up to 120 °C. Safety features include restart protection, safe shutdown, and operation within ambient temperatures below 40 °C. Compact yet robust, the machine weighs only 8 kg and measures 215×310×720 mm. Its precise control, flexible operation, and durable construction make it ideal for laboratories in biotechnology, chemical research, and materials processing.
Features:
Wide Voltage and Power: AC 220 V, input 710 W, output 430 W for stable continuous operation.
High-Speed Control: Six-gear speed adjustment with idle range 13,000–34,000 rpm.
Versatile Working Heads: Stainless steel 316L, available in 8, 10, 12, 18, and 24 G.
Large Mixing Capacity: Handles sample volumes from 15 mL to 5 L depending on head size.
High Viscosity Handling: Suitable for liquids up to 5,000 mPa·s and temperatures up to 120 °C.
Maximum Torque: 12 N.cm for efficient homogenization.
Durable Materials: Stator and rotor made of SS 316L with PTFE bearings.
Safety Features: Restart protection, safe shutdown, and controlled immersion-dependent operation.
Compact and Portable: Dimensions 215×310×720 mm, weight 8 kg, suitable for various laboratory setups.
Optimized for Precision: Rotor speeds up to 18 m/s and adjustable immersion depth for consistent results.
Machine parameters
| Parameter | Value |
|---|---|
| Rated voltage | AC 220 V |
| Rated frequency | 50\60 Hz |
| Input power | 710 W |
| Output Power | 430 W |
| Rated torque | 12.1 N.cm |
| Working mode | S1 ( Continuous ) |
| Operation control method | speed control knob |
| Speed adjustment range - idle running | 13000～34000 rpm |
| Working head material | Stainless steel 316L |
| Working head configuration specifications | 8\10\12\18\24 G |
| Maximum torque of working head | 12 N.cm |
| Speed control type | 6 gears |
| Restart protection function | Yes |
| Safe shutdown function | Yes |
| Allowable ambient temperature | not more than 40℃ |
| Allowable relative humidity | not more than 80% |
| Machine appearance size | 215×310×720 mm |
| Machine weight | 8 kg |
Work Head
| Work head specification (G) | 8 | 10 | 12 | 18 | 24 |
|---|---|---|---|---|---|
| Mixing capacity (H₂O) | 15～50 | 20～100 | 30～800 | 50～1500 | 80～5000 |
| Suitable maximum viscosity (mPa.s) | 1000 | 1000 | 1000 | 2000 | 5000 |
| Maximum temperature (℃) | 120 | 120 | 120 | 120 | 120 |
| Overall length (mm) | 156 | 182 | 215 | 242 | 245 |
| Stator diameter (mm) | 8 | 10 | 12 | 18 | 24 |
| Work head material | SS 316L | SS 316L | SS 316L | SS 316L | SS 316L |
| Bearing material | PTFE | PTFE | PTFE | PTFE | PTFE |
| Rotor maximum linear speed (m/s) | 10 | 11 | 12 | 15 | 18 |
| Minimum/maximum immersion liquid height (mm) | 15\105 | 25\130 | 35\150 | 45\160 | 50\165 |
