Model :AE-LAI-3DT~AE-LAI-3D

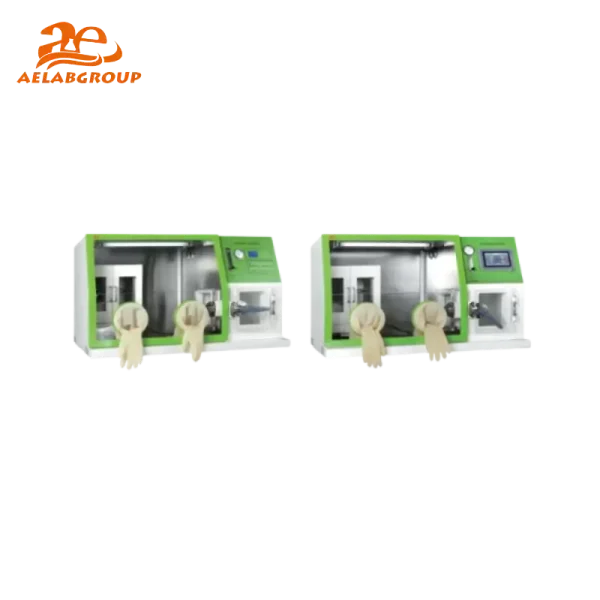

The AELAB AE-LAL Series Anaerobic Incubators create a stable, oxygen-free environment for microbial cultivation. Featuring dual-chamber design, precise temperature control, and UV sterilization, these units ensure accurate growth conditions for anaerobic bacteria in clinical, pharmaceutical, and academic laboratories.
Need Help with This Product?
The AELAB AE-LAL Series Anaerobic Incubators provide controlled oxygen-free environments for cultivating anaerobic microorganisms. Each unit integrates an incubation chamber and an operation chamber, enabling safe sample handling and culturing under continuous anaerobic conditions. Designed for microbial research, clinical diagnostics, and industrial microbiology, the AE-LAL Series combines precision temperature regulation with high structural reliability.
The AE-LAL Series is constructed with Stainless Steel chambers for long-term corrosion resistance and easy decontamination. Both chambers include transparent, impact-resistant glass windows for direct visual monitoring. The large LCD interface and microcomputer controller allow accurate regulation of temperature and timing functions. Each unit incorporates UV sterilization, latex gloves for sealed manual operation, and a deoxidization catalyst to sustain the anaerobic state. The double-door configuration increases plate capacity and sample handling efficiency.
The system creates an anaerobic environment by flushing chambers with a precise gas mixture—typically hydrogen and carbon dioxide—to displace oxygen. Internal sensors and a microcomputer controller automatically maintain the required anaerobic status. Dual-chamber heating ensures temperature stability across the working and incubation zones, while the catalyst accelerates oxygen removal, maintaining conditions suitable for anaerobic microbial growth and fermentation studies.
The AE-LAL Series supports manual and automatic gas regulation through integrated flow control valves. Data display on the LCD screen allows direct observation of internal temperature and operation status. The user-friendly interface simplifies calibration and long-term process monitoring in GLP-compliant laboratories.
The AE-LAI-3DT model is optimized for high-throughput laboratories and pharmaceutical testing environments requiring precise dual-zone temperature control. The AE-LAI-3D model, with a smaller footprint and reduced power rating, is ideal for research institutions and teaching laboratories handling moderate sample volumes.
The AELAB AE-LAL Series complies with international GLP and ISO laboratory standards for microbial incubation. Each unit undergoes performance validation for temperature accuracy, anaerobic sealing, and sterilization efficiency. AELAB’s design ensures reliable long-term operation, supporting consistent results in regulated laboratory environments.
| Feature | AE-LAI-3DT | AE-LAI-3D |
|---|---|---|
| Time to Create Anaerobic State (Sample Chamber) | <5 min | <5 min |
| Time to Create Anaerobic State (Operation Chamber) | <1 h | <1 h |
| Anaerobic Environment Maintenance | >12 h (without mixed gas) | >12 h (without mixed gas) |
| Temperature Range | RT +3 – 60 °C | RT +3 – 60 °C |
| Temperature Stability | ±0.3 °C | ±0.3 °C |
| Temperature Uniformity | ±1 °C | ±1 °C |
| Display Resolution | 0.1 °C | 0.1 °C |
| Timing Range | 1–9999 min | 1–9999 min |
| Power Rating | 1200 W | 600 W |
| Power Supply | AC 220 V, 50 Hz | AC 220 V, 50 Hz |
| Interior Chamber Size (W×D×H) | 30 × 19 × 29 cm | 30 × 19 × 29 cm |
| Operation Chamber Size (W×D×H) | 82 × 66 × 67 cm | 82 × 66 × 67 cm |
| Exterior Size (W×D×H) | 126 × 73 × 72 cm | 126 × 73 × 138 cm |
| Net/Gross Weight | 240 / 320 kg | 240 / 320 kg |
| Construction | Stainless Steel, glass observation window | Stainless Steel, glass observation window |
| Accessories | UV lamp, deoxidization catalyst, latex gloves | UV lamp, deoxidization catalyst, latex gloves |
