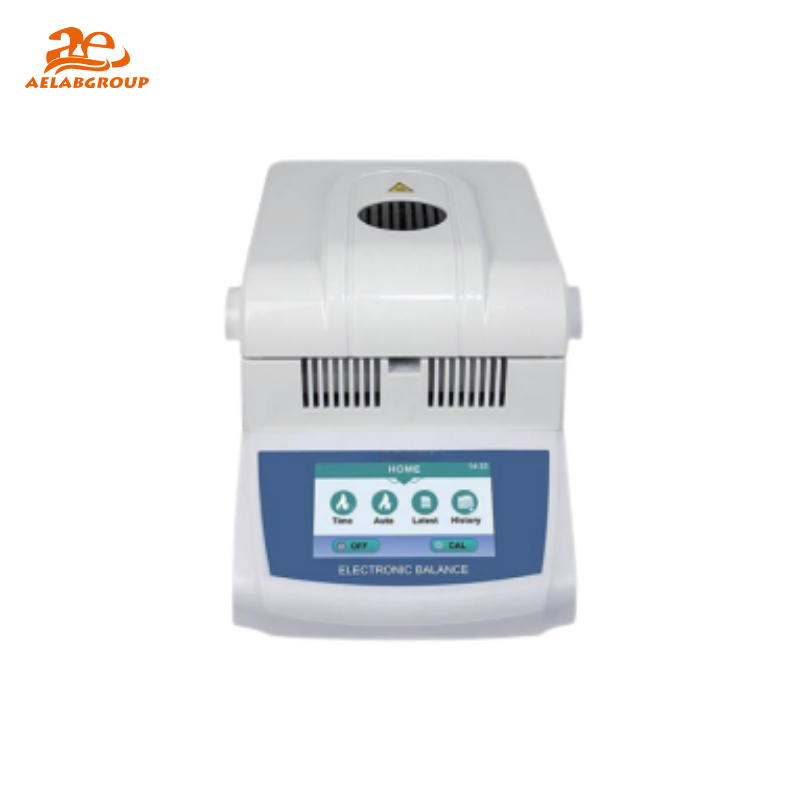

Model :AE-HM005~AE-HM105~AE-HM102~AE-HM101
The HM Series Halogen Moisture Analyzers feature an advanced 5.5″ LCD touch screen and a durable aluminum alloy base. These devices utilize high-efficiency halogen lamps for fast moisture analysis, capable of measuring samples from 50g to 100g with a readability of up to 0.001g. The moisture range spans from 0~100%, and the accuracy for moisture measurement is ±0.5%. The built-in RS232 interface enables seamless connection to printers and PCs for easy data management. With a temperature range of 60~160°C, the analyzers ensure precise drying conditions with adjustable time and temperature controls. Whether using the Auto Stop or Timed Stop mode, these analyzers are perfect for reliable and repeatable moisture content determination in various applications.
Need Help with This Product?
The Halogen Moisture Analyzer HM Series provides precise and efficient moisture analysis for a wide range of applications. Designed with a 5.5″ LCD touch screen, it offers a user-friendly interface for easy operation and control. The analyzers feature a robust aluminum alloy base and ABS shell, ensuring durability and stability in laboratory settings. Equipped with high-efficiency halogen lamps, these devices offer fast and accurate moisture content measurement across a range of 0~100%. With a capacity range from 50g to 100g and readability as precise as 0.001g, the HM Series guarantees reliable results for both small and large samples. The analyzers are equipped with a temperature range of 60°C to 160°C, allowing for precise moisture drying control with an adjustable ±1°C step increment. With Auto Stop/Timed Stop features and the ability to store drying records for up to 8 samples, they offer maximum convenience for researchers and professionals. Additionally, the RS232 interface allows for easy connection to printers and PCs for data transfer and reporting.
Features：
| Model | AE-HM005 | AE-HM105 | AE-HM102 | AE-HM101 |
| Capacity | 50g | 100g | 100g | 100g |
| Readability | 0.005g | 0.005g | 0.002g | 0.001g |
| Moisture Range | 0~100% | 0~100% | 0~100% | 0~100% |
| Accuracy for Moisture measure | ±0.5% (Sample≥5g) | ±0.5% (Sample≥5g) | ±0.5% (Sample≥5g) | ±0.5% (Sample≥5g) |
| Moisture Readability | 0.02% | 0.02% | 0.01% | 0.01% |
| Repeatability | 0.2% | 0.2% | 0.1% | 0.0% |
| Interface | None | RS232 Interface | RS232 Interface | RS232 Interface |
| Scale Pan Size | Φ100mm | Φ100mm | Φ100mm | Φ100mm |
| Heating Way | High efficiency Halogen Lamp | High efficiency Halogen Lamp | High efficiency Halogen Lamp | High efficiency Halogen Lamp |
| Heating Time | 1~99 minutes interval of 1 second | 1~99 minutes interval of 1 second | 1~99 minutes interval of 1 second | 1~99 minutes interval of 1 second |
| Time End Control mode | Auto Stop / Timed Stop | Auto Stop / Timed Stop | Auto Stop / Timed Stop | Auto Stop / Timed Stop |
| Sample Drying Record | 8 times | 8 times | 8 times | 8 times |
| Temperature Range | 60~160°C | 60~160°C | 60~160°C | 60~160°C |
| Temp. Increase Step | ±1°C | ±1°C | ±1°C | ±1°C |
| External Size (WDH) | 205x325x170mm | 205x325x170mm | 205x325x170mm | 205x325x170mm |
| Shipping Size (WDH) | 325x460x295mm | 325x460x295mm | 325x460x295mm | 325x460x295mm |
| Net Weight | 2.9kg | 2.9kg | 2.9kg | 2.9kg |
| Gross Weight | 4.2kg | 4.2kg | 4.2kg | 4.2kg |
