Model :HB150-S1

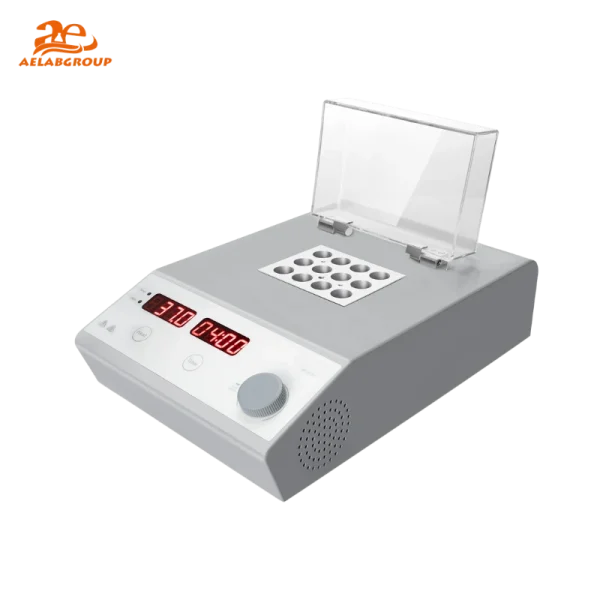

The AELAB HB150-S1 LED Digital Single Module Dry Bath provides precise and uniform heating up to 150°C, designed for a wide range of laboratory temperature applications. Its LED digital control, external sensor, and overheating protection ensure accurate, safe, and stable thermal performance for sensitive experiments.
Need Help with This Product?
The AELAB HB150-S1 LED Digital Single Module Dry Bath is a precision-controlled heating device designed for consistent and accurate temperature incubation up to 150°C. Ideal for research, clinical, and molecular biology applications, this unit provides stability, user safety, and superior thermal uniformity. Its compact design, external temperature sensor, and easy knob adjustment make it an indispensable tool for laboratories requiring accurate temperature regulation.
The AELAB HB150-S1 Dry Bath operates by using a precisely controlled heating module that maintains consistent temperatures across interchangeable aluminum blocks. The built-in sensor monitors real-time temperature while an external temperature probe ensures accurate sample readings. The LED display provides easy temperature and time adjustments through an intuitive control knob.
🔹 High Precision Control: Maintains stable temperatures with ±0.3°C accuracy
🔹 User-Friendly Interface: LED display with easy knob adjustment
🔹 Enhanced Safety: Overheating protection and sound reminder function
🔹 Flexible Use: Compatible with multiple interchangeable blocks for different tube sizes
🔹 Clean Operation: Heat-preserving lids prevent contamination and ensure uniform heating
| Application Type | Recommended Model | Key Benefit |
|---|---|---|
| Educational & Training Labs | AELAB HB105-S1 | Economical single-block model with lower temperature range. |
| Molecular Biology & Clinical Research | AELAB HB150-S1 | Wide temperature range up to 150°C with precise LED control. |
| Advanced Research & Industrial Labs | AELAB HB150-S2 | Dual-block version for higher throughput applications. |
Molecular biology laboratories
Enzyme reaction incubation
DNA denaturation and hybridization
Clinical sample preparation
Biochemical and pharmaceutical research
| Block Type | Capacity | Diameter × Depth (mm) |
| 0.2mL × 30 | 6.3 × 20 | 18900459 |
| 0.5mL × 20 | 7.85 × 28.4 | 18900460 |
| 1.5mL × 20 | 11 × 35 | 18900461 |
| 2mL × 20 | 11 × 34.7 | 18900462 |
| 5mL × 12 | 16.6 × 46 | 18900463 |
| 15mL × 12 | 16.6 × 73 | 18900464 |
| 50mL × 4 | 29.2 × 73.5 | 18900465 |
| Dual-purpose bead/water bath (S1) | 87 × 68 × 52 | 18900522 |
| Dual-purpose bead/water bath (S2) | 143 × 87 × 58 | 18900523 |
| Aluminum beads | — | 18900520 |
| Parameter | Specification |
|---|---|
| Model | HB150-S1 |
| Cat. No. | 5032101210 |
| Temperature Range | Room temperature +5°C to 150°C |
| Temperature Setting Range | 25°C – 150°C |
| Temperature Control Accuracy | ±0.3°C (25–90°C) / ±0.6°C (90–150°C) |
| Temperature Display Accuracy | 0.1°C |
| Temperature Uniformity @37°C | ±0.2°C |
| Time Setting Range | 0 min – 99 h 59 min |
| External Sensor | Yes |
| Display | LED digital display |
| Power Consumption | 100W |
| Voltage / Frequency | 110 / 220V, 50 / 60Hz |
| Dimensions (W×D×H) | 290 × 210 × 120 mm |
| Weight | 3.2 kg |
| Permissible Ambient Temperature | 10–40°C |
| Permissible Ambient Humidity | <80% RH |
