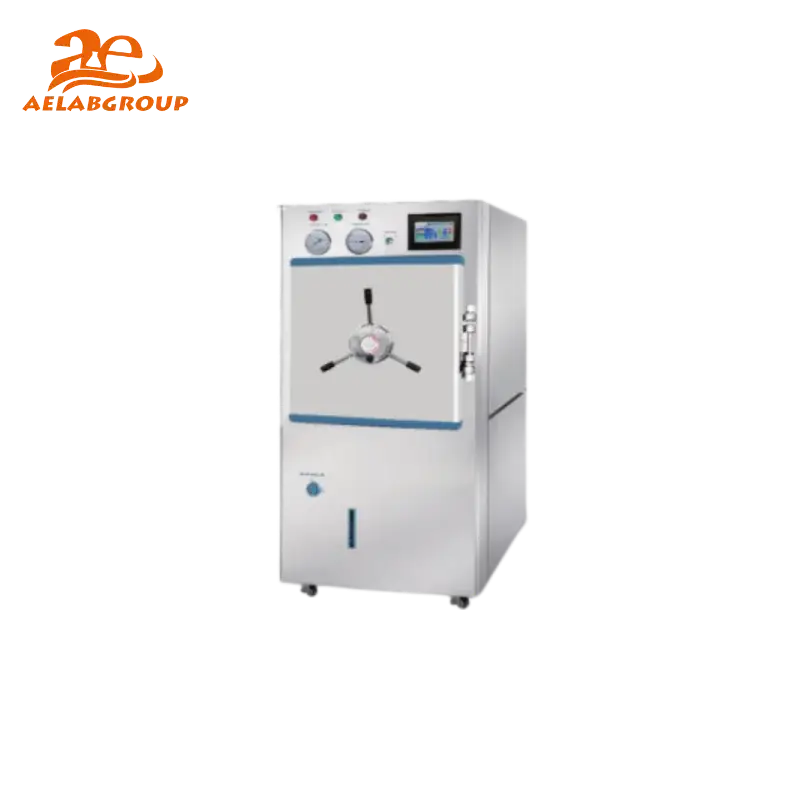

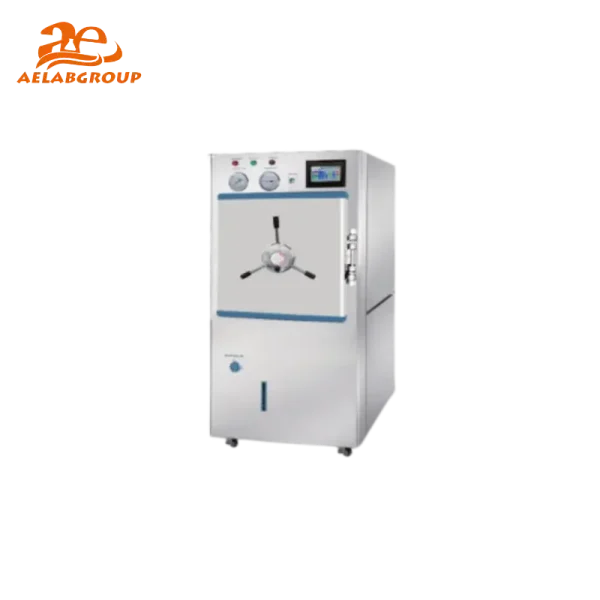

Horizontal Pressure Steam Sterilizer WDZX-120L series

Overview

A horizontal pressure steam sterilizer is a device used for sterilizing equipment and materials through the application of high-pressure steam. It is commonly used in medical, laboratory, and industrial settings to ensure that items are free from microorganisms and contaminants.

This sterilizer features a horizontal chamber, where the items to be sterilized are placed. The chamber is designed to withstand high pressures, which allows it to reach temperatures above the boiling point of water. Steam is introduced into the chamber, and the combination of high temperature and pressure effectively kills bacteria, viruses, and other pathogens.

Features :

Intelligent microcomputer control system: Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.

Interlock device: The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.

The structure of cover’s opening: Using 8 rotary extendable stick to improve sealing and safety performance.

Preset program: Can preset fixed program that sterilize the liquid and solid body.

Memory storage system: Store the last operation program so convenient next operation.

Exhaust steam control: After sterilization, exhaust steam valve should be opened(Digital display screen reminds exhaust steam) when sterilization time run out.

Interface check: Provide temperature and pressure check interface; convenient to check multiple position temperature measurement.

Digital display screen: Digital display screen and working indicator light display running state.

Safety devices: Interlock device, overtemperature and over pressure protecting system, burned protection, safety relief valve, current leakage protector and automatic fault detection.

Print function(add configuration): Print the current temperature and sterilization time.

Specifications

Parameter/Model

WDZX-120L

WDZX-200L

WDZX-300L

Configuration

Semi-automatic Control

The main material

Stainless steel

Volume/GW

120L/225Kg
