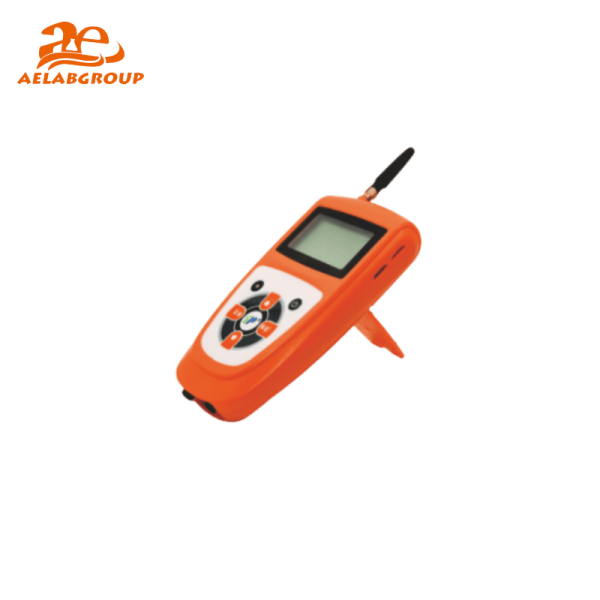

Model :TOP-1200
The TOP-1200 Plant Canopy Analyzer is a durable, waterproof tool for measuring light interception and analyzing plant growth, nutrient levels, and environmental factors. It uses advanced spectral technology to gather data on vegetation, soil, and pests, and includes GPS and voice broadcast for easy field use.
Need Help with This Product?
The TOP-1200 Plant Canopy Analyzer is a versatile tool used in agricultural research and farming production. It measures light interception within plant canopies and investigates the relationship between plant growth, development, and light utilization. Designed with a high waterproof grade (IP67), it features an all-aluminum alloy body for durability.
Utilizing visible/near-infrared light reflection and multi-channel spectral scanning technology, the analyzer quickly gathers data on vegetation surface parameters, plant canopy information, nutrient levels, soil health, environmental factors, and plant pests and diseases.
Features:
TOP-1200 Plant Canopy Analyzer is widely applied for farming production and agricultural research,canopy energy resource investigation, measure the light interception among plant canopy, and research the relation between plant growth & development, production quality and light utilization.
Characteristic:
| Category | Specification | Details |
|---|---|---|
| Working Environment | Temperature Range | 0~60℃ |
| Humidity Range | 0~100% RH (non-condensing) | |
| Storage Environment | Temperature Range | -10~80℃ |
| Humidity Range | 0~40% RH | |
| Power Supply | Input Voltage | 8~12VDC |
| Light Source | Type | LED |
| NDVI Range | Measurement Range | -1~1 |
| LAI Range | Minimum Measurement | >0 |
| Optical Parameters | Center Wavelengths | 680nm, 800nm |
| Spectral Bandwidth | <8nm FWHM | |
| View Angle | 30° | |
| Measurement Area | Coverage | 0.23~0.38㎡ |
| Channels | Quantity | 2 |
