Overview

A Plant Nutrition Analyzer is a precision instrument used to assess the levels of vital nutrients in plants, including nitrogen, phosphorus, potassium, and other micronutrients. By analyzing plant tissue or sap, it provides detailed information on the nutritional status of crops. This data is crucial for fine-tuning fertilization practices, addressing nutrient deficiencies, and maximizing plant growth and yield. The analyzer is an essential tool in modern agriculture, helping to ensure that crops receive the right nutrients at the right time for optimal health and productivity.

• Be able to save chlorophyll, nitrogen and leaf temperature at the same time, easy to draw graph of plantnutrient, leaf temperature etc. Provide for plant precision irrigation and fertilization.
• Nondestructive test plant quickly, not to effect plant growth.
• Rapid determination: Test plant chlorophyll, nitrogen and leaf temperature at the same time.
• Manual measurement pattern.
• View past stored data, show three parameters at the same time.
• The computer can transfer wired or wireless data so as to manage and analysis.
• Easy to store data, directly show stored data. Show low power consumption.

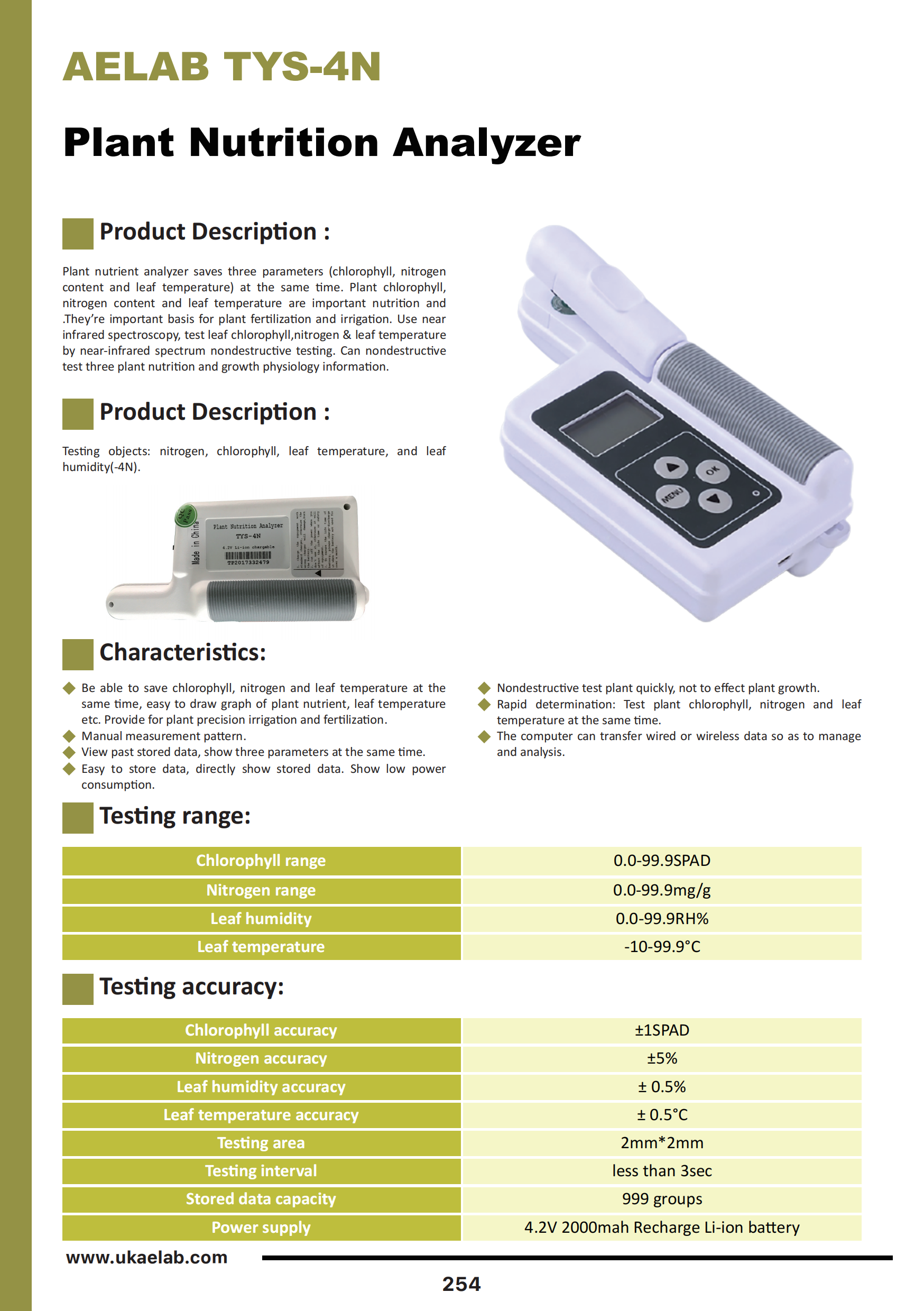

Specifications

Testing range:

Chlorophyll range: 0.0‐99.9SPAD

Nitrogen range: 0.0‐99.9mg/g

Leaf humidity: 0.0‐99.9RH%

Leaf temperature:‐10‐99.9°C

Testing accuracy:

Chlorophyll accuracy: ±1SPAD

Nitrogen accuracy: ±5%

Leaf humidity accuracy: ± 0.5%

Leaf temperature accuracy: ± 0.5°C

Testing area: 2mm*2mm

Testing interval: less than 3sec

Stored data capacity: 999 groups

Power supply: 4.2V 2000mah Recharge Li‐ion battery
