Model :AE-101,AE-102... AE-301,AE-302... AE-401,AE-402... AE-501,AE-502... AE-601.AE-602... AE-1ATC,AE-2ATC

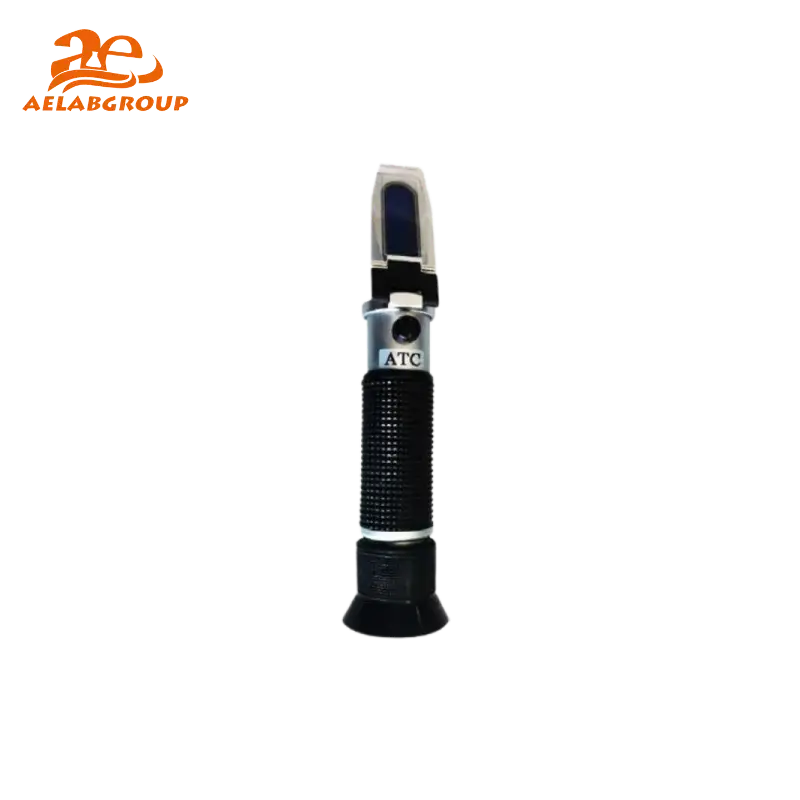

The AELAB Pocket Refractometer AE Series packs laboratory-level accuracy into a rugged, hand-held device. With Automatic Temperature Compensation (ATC), sapphire prisms, and finely-etched scales, each model delivers fast, reliable readings for food, clinical, industrial, and research applications—all without external power or bulky equipment.
Need Help with This Product?
The AELAB Pocket Refractometer AE Series packs laboratory-level accuracy into a rugged, hand-held device. With Automatic Temperature Compensation (ATC), sapphire prisms, and finely-etched scales, each model delivers fast, reliable readings for food, clinical, industrial, and research applications—all without external power or bulky equipment.
Features:
| Lab Scenario | Suggested Models | Why They Fit |
|---|---|---|
| Quality-control of soft drinks & juices | AE-099, AE-105, AE-107 | Fine-resolution Brix scales for 0–32 % & 28–62 % ranges |
| Honey moisture verification (apiculture) | AE-112, AE-120 | Dual Brix / water scales optimized for honey standards |
| Brewery wort gravity checks | AE-1101 | Combined Brix & specific-gravity scale in one reading |
| Clinical urine SG & protein screening | AE-501, AE-505 | Dual SG + protein scales with 0.002 SG precision |
| Seawater aquaculture salinity | AE-202, AE-206 | 0–28 % salinity (±0.20 %) plus optional Brix reading |
| Automotive coolant & battery service | AE-401 – 408 | Multi-fluid scales for ethylene/propylene glycol & SG |
Food & Beverage QC: fruit-juice processors, wineries, breweries, honey packers
Clinical & Veterinary Labs: rapid urine SG/protein assessments
Industrial Maintenance: coolant, antifreeze, and cutting-fluid concentration checks
Research & Education: chemistry teaching labs, field studies, geological surveys
Agriculture & Aquaculture: soil solution salinity, nutrient solutions, hatcheries
| Alcohol | Model | Measure Range | Precision | Temperature |
| AE-303 | 0~50%v/v | 1.0% | ATC | |
| 50~80%v/v | 2.5% | |||
| AE-305 | 0~50%w/w | 1.0% | ATC | |
| 50~80%w/w | 2.5% | |||
| AE-306 | 0~25%VOL | 0.20% | ATC | |
| AE-301 | 0~25%VOL | 0.2%VOL | ATC | |
| 0~40%Brix | 0.2%Brix | |||
| AE-302 | 0~25%VOL | 0.2%VOL | ATC | |
| 0~20Baume | 0.2Baume | |||
| Urine/Protein | AE-501 | 0~12g/dl | 0.2g/dl | ATC |
| 1.000~1.040sg | 0.002sg | |||
| AE-505 | 0~12g/dl | 0.2g/dl | ATC | |
| 1.000~1.050sg | 0.002sg | |||
| 1.3330~1.3600RI | or 0.0005RI | |||
| AE-502 | 0~12g/100ml | 0.2g/100ml | ATC | |
| 1.000~1.050UG | 0.005UG | |||
| 1.3325~1.3600nD | 0.0005nD | |||
| AE-503 | 0~12g/dl | 0.2g/dl | ATC | |
| 1.000~1.040UG | 0.005UG | |||
| 1.3325~1.3600nD | 0.0005nD | |||
| Wine | AE-602 | 0~140 Oe | 1 Oe | ATC |
| 0~25KMW(Babo) | 0.2KMW(Babo) | |||
| 0~32%Mas Sacch | 0.2%Mas Sacch | |||
| AE-603 | 0~170 Oe | 2 Oe | ATC | |
| AE-606 | 30~140 Oe | 1 Oe | ATC | |
| 0~32%Brix | 0.2%Brix | |||
| AE-601 | 0~140 Oe | 1 Oe | ATC | |
| 0~32%Brix | 0.2%Brix | |||
| AE-604 | 0~190 Oe | 2 Oe | ATC | |
| 0~38KMW(Babo) | 0.5%Brix | |||
| 0~44%Brix | 0.5%Brix | |||
| AE-605 | 30~140 Oe | 1 Oe | ATC | |
| 0~25KMW(Babo) | 0.2%KMW | |||
| Refractive Index | AE-703 | Refractive Index: 1.440~1.520 | 0.001 | |
| ATC | ||||
| Beer | AE-1101 | 0-32% Brix | ±0.20% Brix | ATC |
| 1.000-1.120 Wort Specific Gravity | ±0.001 |
| Honey | Model | Measure Range | Precision | Temperature |
| AE-112 | 13~25%Honey Moisture | water 0.1% | ATC | |
| AE-120 | Brix: 58-90% | Brix: ±0.5% | ATC | |
| Baume: 38-43Be' | Baume: ±0.5Be' | |||
| Water: 10-33% | Water: ±1% | |||
| Salinity | AE-202 | Salinity: 0~28% | 0.20% | ATC |
| AE-201 | Salinity: 0-100‰ | 1‰ | ATC | |
| Density: 1.000-1.070 | 0.001 | |||
| AE-206 | Salinity: 0~28% | 0.20% | ATC | |
| Brix: 0~32% | 0.20% | |||
| AE-205 | Salinity: 0-10‰ | 1‰ | ATC | |
| Density: 1.000-1.070 | 0.001 | |||
| Brix: 0~10% | 0.20% |
| Brix | Model | Measure Range | Precision | Temperature |
| AE-115 | Brix58-92% | ±0.5% | ||
| AE-099 | Brix0-18% | ±0.2% | ATC | |
| AE-117 | Brix0-80% | ±0.5% | ||
| AE-108 | Brix45-82% | ±0.5% | ||
| AE-101 | Brix0-90% | ±0.5% | ||
| AE-102 | Brix0-10% | ±0.1% | ATC | |
| AE-103 | Brix0-20% | ±0.1% | ATC | |
| AE-105 | Brix0-32% | ±0.2% | ATC | |
| AE-106 | Brix0-50% | ±0.5% | ||
| AE-107 | Brix28-62% | ±0.2% | ATC |
| Battery/Coolants/
Antifreeze/Cleaner/ (ATC) |
Model | Measure Range | Precision | Temperature |
| AE-401 | Ethylene Glycol | -50oF~32oF | 10oF | |
| Propylene Glycol | -50oF~32oF | 10oF | ||
| Battery Fluids | 1.15~1.30KG/L | 0.01KG/L | ||
| AE-402 | Ethylene Glycol | -50oC~0oC | 10oC | |
| Propylene Glycol | -50oC~0oC | 5oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-403 | Ethylene Glycol | -50oC~0oC | 10oC | |
| Propylene Glycol | -50oC~0oC | 5oC | ||
| Cleanning Watter | -40oC~0oC | 10oC | ||
| Battery Fluids | 1.15~1.30KG/L | 0.01KG/L | ||
| AE-404 | Ethylene Glycol | -50oC~0oC G13 | 5oC | |
| Propylene Glycol | -50oC~0oC G11/12 | 5oC | ||
| Cleanning Watter | -40oC~0oC SRFI | 10oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-405A | Ethylene Glycol | -60oC~0oC(0~66.6%) | 10oC | |
| Propylene Glycol | -50oC~0oC(0~62.4%) | 5oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-406A | Ethylene Glycol | -84oF~32oF(0~70%) | 10oF | |
| Propylene Glycol | -60oF~32oF(0~63%) | 5oF | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| AE-408 | Ethylene Glycol | -60oC~0oC | 5oC | |
| Ethylene Glycol | 0~100% | 5% | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| Emulsion | AE-406 | Concentration of emulsified liquid | ATC | |
| M-10: 0-15% | 0.50% | |||
| MDT: 0-15% | 0.50% | |||
| Urea/Adblue | AE-1ATC | Ethylene Glycol | -50oC~0oC G13 | 5oC |
| Propylene Glycol | -50oC~0oC G11/12 | 5oC | ||
| Cleanning Watter | -40oC~0oC SRFI | 10oC | ||
| Battery Fluids | 1.10~1.40KG/L | 0.01KG/L | ||
| Adblue(Urea) | 30~35% | 0.1 | ||
| AE-2ATC | Adblue(Urea) | 0~40% | 0.1 | |
