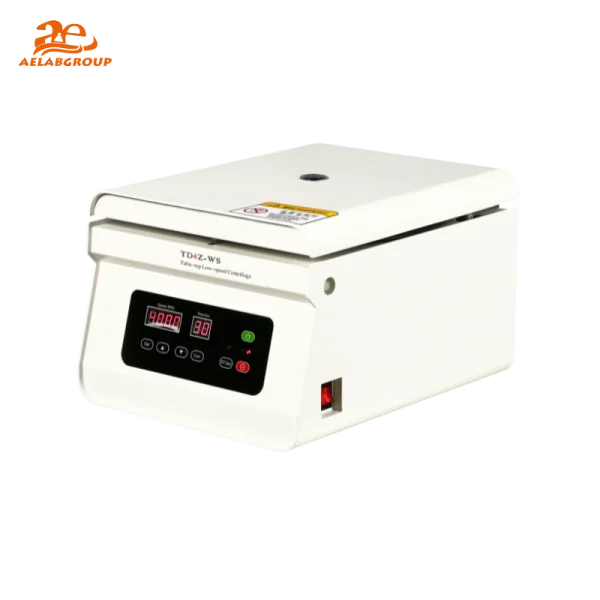

Model :TD4Z-WS
The AELAB TD4Z-WS benchtop low-speed centrifuge performs controlled centrifugal separation for routine sample preparation in medical, hospital, pathology, and institutional laboratories. Featuring digital speed regulation, brushless DC motor technology, and multiple angle rotor options, the TD4Z-WS centrifuge ensures stable operation, reproducible results, and compact benchtop installation.
Need Help with This Product?
The AELAB TD4Z-WS benchtop low-speed centrifuge performs reliable centrifugal separation for routine sample analysis in medical, hospital, pathology, and institutional laboratories. Designed with a compact steel structure and digital control system, the TD4Z-WS centrifuge supports stable speed regulation and low-noise operation.
The AELAB TD4Z-WS laboratory centrifuge integrates a brushless DC motor and microprocessor-based control system to regulate rotational speed and relative centrifugal force. With multiple angle rotor configurations, the TD4Z-WS centrifuge adapts to a wide range of clinical and research sample preparation tasks.
The AELAB TD4Z-WS benchtop low-speed centrifuge adopts a reinforced steel structure that enhances mechanical stability while maintaining a compact and lightweight footprint. The enclosed housing minimizes vibration and acoustic output during centrifugation, supporting long-term laboratory operation.
The AELAB TD4Z-WS centrifuge generates centrifugal force through controlled rotational motion driven by a brushless DC motor. The digital control system regulates speed and time parameters to separate components based on density differences under relative centrifugal force up to 2680×g.
The AELAB TD4Z-WS benchtop low-speed centrifuge features an integrated digital display for direct parameter input and monitoring. Standalone operation supports routine laboratory workflows without external control systems.
The AELAB TD4Z-WS benchtop centrifuge is used for routine centrifugation in medical diagnostics, hospital laboratories, pathology departments, institutional research laboratories, and industrial sample preparation workflows involving blood, serum, urine, and general laboratory samples.
The AELAB TD4Z-WS centrifuge is manufactured under controlled quality systems to ensure consistent performance, operational safety, and reproducibility suitable for regulated laboratory environments. Digital control supports standardized testing procedures and routine quality assurance protocols.
| Model | TD4Z-WS |
| Maximum Speed (rpm) | 0–4000 |
| Maximum RCF (×g) | 2680 |
| Speed Accuracy (rpm) | ±10 |
| Timer Range (min) | 0~99 |
| Motor Type | Brushless DC Motor |
| Display | Digital Display / LCD Display |
| Noise | ≤50 dB(A) |
| Power Consumption (W) | 125 |
| Voltage | 100–240 V, 50 Hz |
| Dimensions (mm) | 450 × 340 × 270 |
| Weight (kg) | 19 |
| Rotor Type | Maximum Speed (rpm) | Capacity | Maximum RCF (×g) |
|---|---|---|---|
| No.1 Angle Rotor | 4000 | 12 × 10 mL AR | 2680 |
| No.2 Angle Rotor | 4000 | 4 × 50 mL AR | 2680 |
| No.3 Angle Rotor | 4000 | 12 × 15 mL AR | 2680 |
| No.4 Angle Rotor | 4000 | 24 × 10 mL AR | 2680 |
| No.5 Angle Rotor | 4000 | 12 × 20 mL AR | 2680 |
| No.6 Angle Rotor | 4000 | 6/4×50ml AR | 2680 |
