Overview

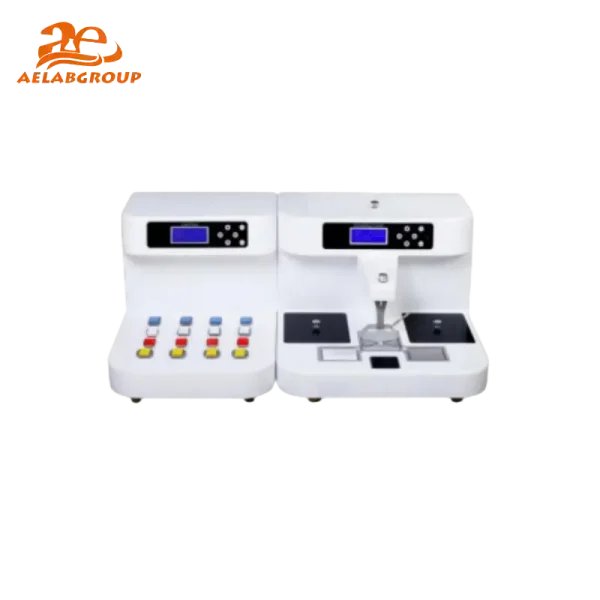

The Tissue Embedding Center YD-6K with Cold Plate is an advanced laboratory instrument designed to assist in the preparation of tissue samples for histological examination. This unit allows for the embedding of tissue specimens into paraffin, a process essential for preserving the structure of the tissue and enabling the production of thin sections for microscopic analysis.The YD-6K model is equipped with a cold plate, which helps in rapidly cooling and solidifying the paraffin once the tissue is embedded. The embedding process is carefully controlled to ensure that the tissue is properly oriented and supported within the paraffin block. This is crucial for obtaining clear and accurate sections during the subsequent microtomy stage.Overall, the Tissue Embedding Center YD-6K is an essential tool for laboratories engaged in histology, providing a reliable and efficient means of preparing tissue samples for detailed study.

Features:

• Integrated design, fast heat up, high safety factor, long working life, good sealing properties and no wax dripping situation
• The newest high technology and Button Panel Control, new type of heating material
• The machine is made up of embedding system, cooling part .the design can be flexibly selected between embedding machine and cooling part.
• Memory function and Auto Recover feature, Automated control system make it possible for presetting the Embedding system or Cold plate switch on / off with setting time and temperature on schedule
• Special nano technical make it heat up quickly and equably.
• The LCD display can show the temperatures of the paraffin bath, thermostatic bath and paraffin nozzle. So the user can operator it easily.
• Low voltage lighting systems and Adjustable wax flow speed
• Small cold spot in working table .
• Large capacity paraffin bath can contain enough paraffin for use at one time.
• The heating function with multilevel security protection system.
• There are 3 heating hole for forceps in two side of the paraffin nozzle .
• Magnifying glass with lamp is optional accessory
• Collection drawer to collect paraffin from working table Specification:
• Capacity of the paraffin pan : 6000 ml.
• Temperature range of Paraffin pan: 0 ~99℃
• Temperature range of working table: 0 ~99℃
• Temperature range of left and right warming box: 0 ~99℃
• Freezing range temperature of cold plate: 0 ~ -20℃
• Freezing range temperature of small cold spot in working table : 0 ~ -10℃
• Control mode: manual touch plate or foot switch
• About 120pcs of molds or 140pcs cassettes for each hot reservoir
• Capacity of Cold plate :About 50-80pcs of Tissue mold or cassettes
• Environment temperature: 0℃~ 40℃
• Time control: Switch on and switch off time of the machine is set in 24 hours optionally.
• Nominal voltage: AC110V-220V±10％.
• Rated frequency:50Hz/60Hz
• Power consumption: (dispenser part)10A /1800W, (cold plate part)5A/ 130W
• Dimension: Embedding center (60x66x42cm), Cold plate (47x66x42cm)
• Gross /Net Weight: 50/25kg(for Cold plate ) 115/60kg(for AE-6K)

Specifications

Specification:

• Capacity of the paraffin bath : 6000 ml.
• Melting paraffin prefabricate: 0 ~99℃
• Freezing range temperature of cold plate: 0 ~ -20℃
• Freezing range temperature of small cold spot in working table : 0 ~ -15℃
• Complete machine consuming more electricity: Less than 1KVA
• Control mode: Auto, foot
• About 120pcs of molds or 140pcs cassettes for each hot reservoir
• Capacity of Cold plate :About 40-60 pcs of Tissue Mold
• Environment temperature: 0℃~ 40℃
• Time control: Switch on and switch off time of the machine is set in 24 hours optionally.
• Nominal voltage: AC110V-220V±10％.
• Rated frequency:50Hz/60Hz
• Power consumption: (dispenser part)10A /1800W, (cold plate part)5A/ 130W
• Dimension: Embedding center (60x52x36.5cm), Cold plate (36x52x36.5cm)
• Gross /Net Weight: 65/35kg(for AE-6D) 115/67kg(for AE-6LA)
