Model :DM Series

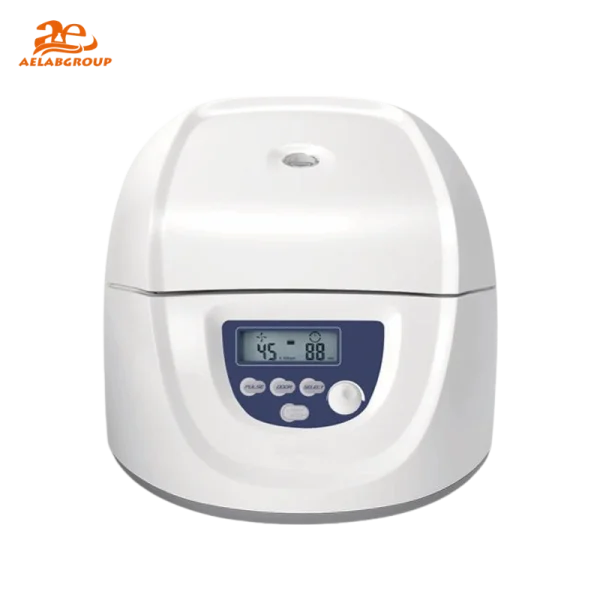

The AELAB DM0412 Low Speed Centrifuge provides stable, efficient separation of clinical and biological samples using a brushless DC motor and precise electronic speed regulation. Designed for routine laboratory workflows, the instrument supports RPM and RCF operation, multiple rotor formats, and controlled acceleration for clean, reproducible sample processing.
Need Help with This Product?
The AELAB DM0412 Low Speed Centrifuge is engineered for efficient and stable separation of clinical, biological, and diagnostic samples. Its brushless DC motor, intuitive LCD display, and selectable RPM/RCF operation enable precise workflow control in routine laboratory environments.
Designed for daily use in hospitals, research laboratories, and teaching facilities, the AELAB DM0412 ensures consistent performance with high-strength plastic rotors, automated safety monitoring, and smooth acceleration profiles that preserve sample integrity.
The AELAB DM0412 features a compact benchtop housing with dual protection layers for enhanced operational safety. High-strength plastic rotors (A12-10P and A6-50P) provide excellent mechanical balance during rapid acceleration. An LCD interface displays speed, RCF, time, and operational status. The brushless DC motor delivers maintenance-free operation, low noise, and stable rotational control across the full 300–4500 rpm range.
The centrifuge stabilizes samples using controlled rotational force, allowing separation of serum, plasma, buffy coat, and other biological components. Operators can select RPM or RCF, set timed or continuous runs, and regulate acceleration and braking using programmed profiles. Safety sensors monitor lid position, overspeed conditions, and internal diagnostics, ensuring reliable performance throughout each run.
The DM0412 integrates seamlessly into clinical and research workflows with digital control, LCD monitoring, and GLP-style traceability features. USB or PC software connectivity is not included, ensuring simplified stand-alone operation ideal for routine bench use.
| Model | Specifications |
|---|---|
| DM0412 | 300–4500 rpm; Max RCF 2490 × g; A12-10P / A6-50P rotors; 6 kg |
The DM0412 is suitable for:
The instrument meets CE and cTÜVus safety requirements, undergoes AELAB production quality control, and includes built-in overspeed and lid-lock protection aligned with GLP laboratory operation standards.
| Specifications | DM0412 |
|---|---|
| Speed Range | 300–4500rpm, increment: 100rpm |
| Max. RCF | 2490 × g |
| Speed accuracy | ±20rpm |
| Rotor type | A12-10P, A6-50P |
| Run Time | 30sec–99min HOLD (Continuous operation) |
| Motor | Brushless DC motor |
| Display | LCD |
| Safety Devices | Door interlock, Overspeed detector; Automatic internal diagnosis |
| Acceleration/Braking time | A12-10P: 20s ↑ 13s ↓ A6-50P: 20s ↑ 20s / 90s ↓ |
| Power Requirements | Single-phase, 100V–240V, 50Hz/60Hz, 3A70W |
| Dimension(W×D×H) | 354 × 304 × 215mm |
| Weight | 6kg |
| Advanced features | Speed/RCF switch; Short-time run function; sound-alert function |

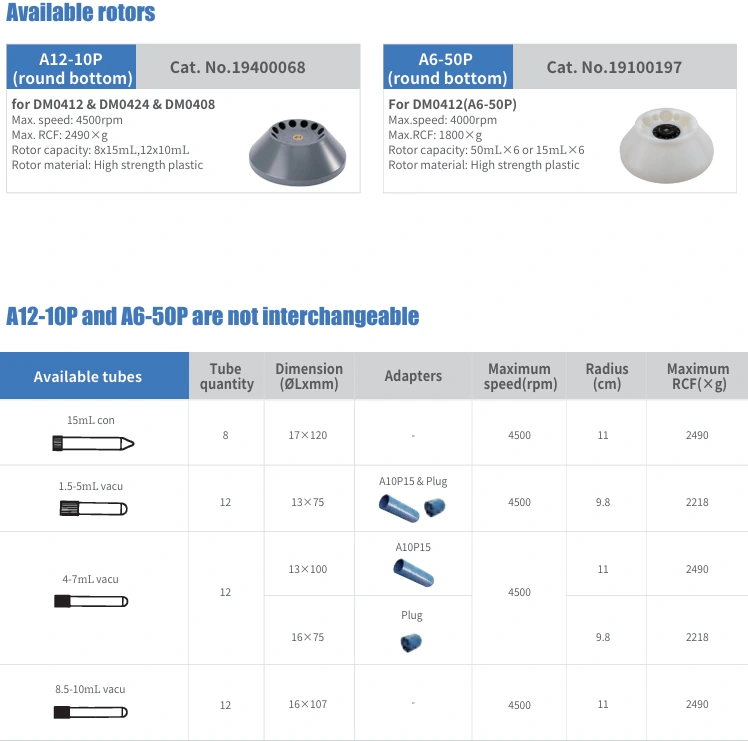

| Rotor Model | A12-10P (round bottom) | A6-50P (round bottom) |
|---|---|---|
| Catalog No. | 19400068 | 19100197 |
| Compatibility | DM0412 & DM0424 & DM0408 | DM0412 (A6-50P) |
| Max. speed | 4500rpm | 4000rpm |
| Max. RCF | 2490 × g | 1800 × g |
| Rotor capacity | 8×15mL, 12×10mL | 50mL×6 or 15mL×6 |
| Material | High strength plastic | High strength plastic |
