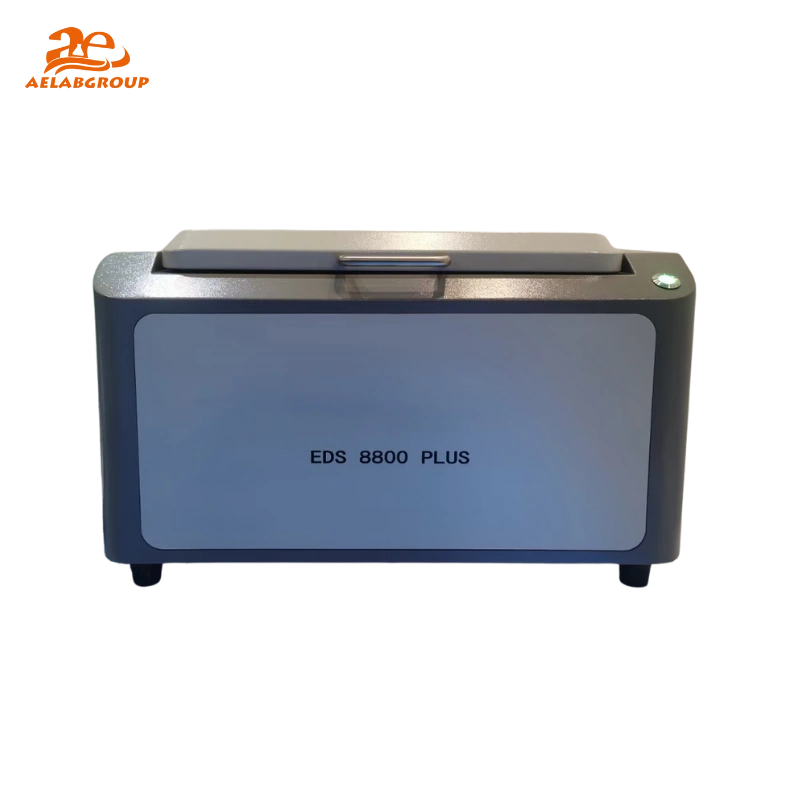

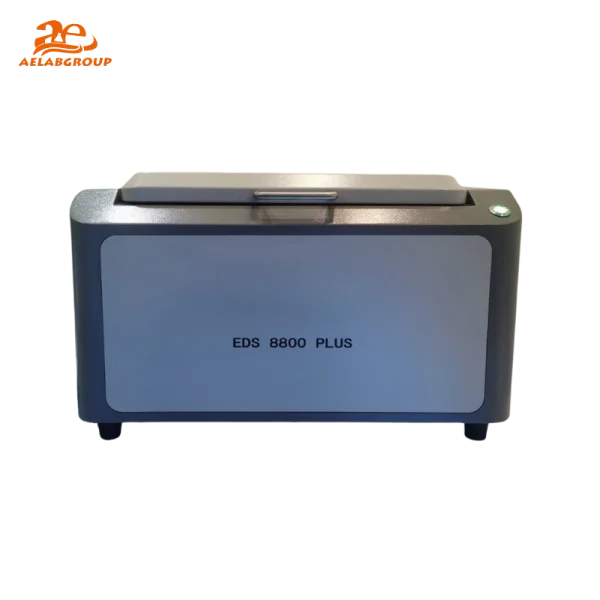

Model :EDS8800PLUS
The AELAB EDS8800PLUS coating thickness & RoHS analyzer performs controlled coating thickness measurement and multi-element testing for laboratory, industrial, and compliance workflows. EDS8800PLUS supports solid, powder, and liquid sample forms, combines a digital multichannel analyzer with an Amptek (USA) detector, and integrates an HD camera for sample positioning. With 0.005–50 µm analysis range and 0.005 µm accuracy, AELAB EDS8800PLUS enables repeatable testing.
Need Help with This Product?
The AELAB EDS8800PLUS coating thickness & RoHS analyzer performs coating thickness measurement and multi-element testing using controlled tube voltage and tube current settings for analytical workflows. EDS8800PLUS supports solid, powder, and liquid sample forms and uses a digital multichannel analyzer with an Amptek (USA) detector for stable signal acquisition.
The AELAB EDS8800PLUS coating thickness & RoHS analyzer integrates an HD camera for sample observation and positioning, supports 8 selectable collimator sizes, and delivers 5–100 sec test time for routine laboratory and industrial testing. EDS8800PLUS provides a 450 × 310 × 120 mm sample chamber and is supplied with qualitative and quantitative analysis software for data processing.
The AELAB EDS8800PLUS coating thickness & RoHS analyzer is configured with a digital multichannel analyzer and an Amptek (USA) detector type to stabilize detection and support multi-element material testing. EDS8800PLUS includes an HD camera to guide sample positioning within the 450 × 310 × 120 mm sample chamber. The instrument footprint is defined by external dimensions of 570 × 410 × 350 mm with a mass of 46 kg for bench or lab-floor placement.
The AELAB EDS8800PLUS coating thickness & RoHS analyzer performs controlled testing by regulating Tube Voltage (5–50 kV) and Tube Current (0–1000 µA) and processing the acquired signal through a digital multichannel analyzer. EDS8800PLUS uses selectable multi-collimator switches (0.2 mm to 8 mm) to match measurement spot selection to the sample position and to test different positions of the sample with controlled exposure conditions.
The AELAB EDS8800PLUS coating thickness & RoHS analyzer is supplied with qualitative and quantitative analysis software for data evaluation. Connectivity interfaces (for example USB, network, or wireless transfer) and file export formats are not specified in the provided EDS8800PLUS data and should be verified in the official AELAB catalog before procurement or validation planning.
The AELAB EDS8800PLUS coating thickness & RoHS analyzer is applied to coating thickness measurement and RoHS-related screening workflows where regulated test time (5–100 sec) and selectable collimator sizes support measurement across different sample positions. EDS8800PLUS supports multi-element testing across 82 elements from sodium (Na) to uranium (U), with up to 26 elements measured simultaneously per test for precious metals industry use, enabling structured material evaluation for laboratory and industrial quality control.
AELAB EDS8800PLUS coating thickness & RoHS analyzer supports controlled testing through regulated Tube Voltage (5–50 kV) and Tube Current (0–1000 µA) and uses qualitative and quantitative analysis software for result processing. Formal compliance statements (ISO, CE, GLP), calibration traceability, and validation documentation are not included in the provided EDS8800PLUS data and should be verified against the official AELAB catalog to align with regulated laboratory QA and audit requirements.
| Model | EDS8800PLUS |
| Instrument Type | Coating Thickness & RoHS Analyzer |
| Analysis Range | 0.005 µm ~ 50 µm |
| Accuracy | 0.005 µm |
| Sample Form | Solid, powder, liquid |
| Tube Voltage | 5 kV ~ 50 kV |
| High Voltage Power Supply | 0 ~ 50 kV |
| Tube Current | 0 ~ 1000 µA |
| Camera | HD camera |
| Detector Type | Amptek, USA |
| Multichannel Analyzer | Digital multichannel |
| Sample Chamber Size | 450 × 310 × 120 (mm) |
| Test Time | 5 ~ 100 sec |
| Measuring Element | 82 elements from sodium (Na) to uranium (U) between all elements, Up to 26 elements simultaneously each time (For use in the precious metals industry only) |
| Multi-collimator switches | 8 collimators size of 0.2 mm \ 0.5 mm \ 1 mm \ 2 mm \ 3 mm \ 4 mm \ 6 mm \ 8 mm Intelligently matched the correct size. Different areas of light spots are used to accurately test different positions of the sample |
| Analysis Software | qualitative and quantitative analysis software |
| External Dimensions | 570 × 410 × 350 (mm) |
| Weight | 46 kg |
