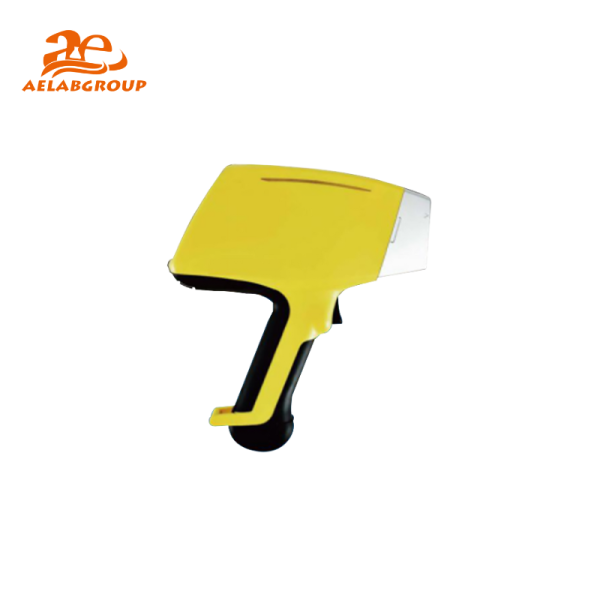

Handheld Mineral Analyzer Truex 900/960

Model :Truex 900/960

The Truex 900/960 is an advanced analytical instrument designed for precise grade evaluation, multi-element rapid analysis, and environmental monitoring in mining, enabling efficient ore processing, exploration, and resource management through GIS/GPS integration, 3D modeling, and comprehensive quality control across all mining stages while supporting sustainable environmental restoration efforts.

Instant Quote WhatsApp Send Email

Downloads

Handheld Mineral Analyzer Truex 900/960PDF · 1.02 MB

Need Help with This Product?

Ella Wu +8615800016110

Overview

The Truex 900/960 is a high-performance analytical instrument designed for precise ore evaluation, grade control, and environmental monitoring in mining. It enables efficient processing through multi-element rapid analysis, slag and tailings assessment, and advanced GIS/GPS integration for exploration and decision-making. With capabilities like 3D mine modeling, hot-spot zone detection, and environmental impact evaluation, it enhances resource management and supports sustainable mining operations.

Features

Small, light and easy to carry.
High-speed processing chip, advanced algorithm and high-precision algorithm library.
High-performance X-ray Tube, Ultra-High Resolution Technology, yielding super high detection resolution.
Industrial resistive touch screen, superior to capacitive screen, can be operated with gloves in the field. At the same time, people don’t need to take off gloves when they are operating machine in some particular field.
Intelligent battery management system achieves a real-time monitoring of the residual capacity of battery and backup battery.
Automatic switch to standby mode when not used to save power and extend working time; moreover,TruX has a gravity sensing system which shuts down instrument automatically when it accidentally falls down, another safety consideration; support remote control and remote diagnosis application.
Users can customize the report by adding their company logo, addresses, test results, spectrum and others (such as product description, origin of products and batch number).
TruX is built with double beam technology which can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature.
TruX can be configured and maintained in a remote way via internet.
Through optimized X-ray path design and filter combination, the detection limit can be achieved, which are comparable with even large-scale lab instruments.
TruX Ultra-bright optical path design can significantly improve light element excitation efficiency and detection limit.
TruX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.

Specifications

Weight	1.5Kg
Dimensions	254 x 79 x 280 mm (L x W x H)
Excitation source	Up to 50KV/200uA, tube pressure and tube flow can be adjusted freely, Target Ag (standard), Au(optional), W(optional), Rh(optional)
Detector	BOOST Si-Pin detector for TrueX 900, SDD detector for TrueX 960
Range of detection	All elements between Mg and U
Display system	Industrial resistive touch screen with screen size of 4.3". Professional operating system and software. Multiple languages including English and Chinese. And it automatically adjusts display brightness according to the environment brightness.
Data processing	32GB memory. USB, Bluetooth, wifi can connect the device to the Internet, repair and setup can be done remotely. Data can be exported as EXCEL or PDF. Users can customize the reports by adding their company logos, addresses, test results, spectrum and others (such as product description, origin and batch number).
Heat dissipation	Equipped with a dedicated T-shaped radiator to dissipate the heat, no need to wait for cooling of detector.
Safety	Built-in double beam technology can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature. Waterproof, dust-proof and shockproof suitcase. LAN Scientific Safety Band.
Power supply system	Intelligent battery with M5USB bus, real-time monitoring battery, spare battery can directly check the remaining capacity of the battery; the battery complies with air dangerous goods transport regulations. A single battery can work for about 8 hours.
