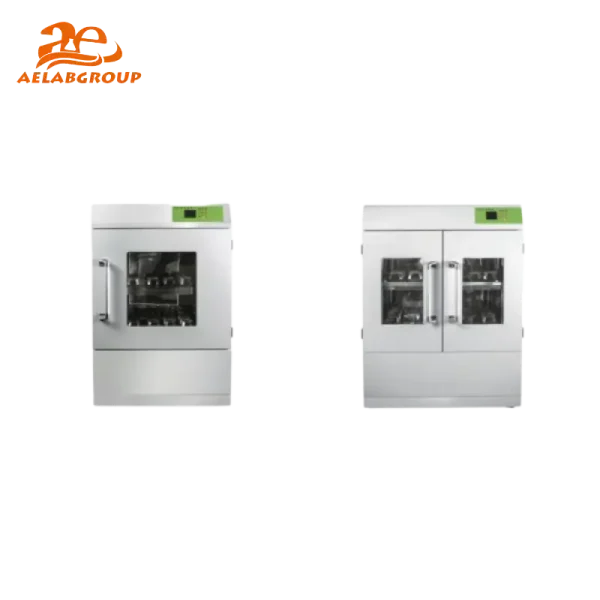

Model :AE-LYZ-2102C ~AE-LYZ-2102~AE-LYZ-2112B
Horizontal shaking incubators maintain a stable temperature while shaking samples side to side. They are used to evenly mix and grow cultures by combining gentle agitation with precise temperature control. This design is ideal for applications requiring consistent mixing and warmth.

Need Help with This Product?
Horizontal shaking incubators feature a platform that shakes samples from side to side while controlling the temperature. This setup ensures uniform mixing and optimal growth conditions for cultures. The design is particularly suited for applications like bacterial cultivation and enzyme reactions, where consistent agitation and temperature are crucial for reliable results.
Features:
| Model | AE-LYZ-2102C
(Single door) |
AE-LYZ-2102
(Double door) |
AE-LYZ-2112B
(Double door) |
| Shaking Speed (rpm) | 40-300 | ||
| Speed Accuracy (rpm) | ±1 | ||
| SwingAmplftude (mm) | Ф26 | ||
| Standard Configuration | 250ml×12/layer | 250ml x 35 or 500ml x 24/layer | 250ml x 45 or 500ml x 37/layer |
| Maximum Capacity | 100ml x 48 or 250ml x 24
or 500ml x 18 or 1000ml x 12 |
250ml x 70 or 500ml x 48
or 1000ml x 24 |
250ml x 90 or 500ml x 74
or 1000ml x 36 or 5000ml x 8 |
| Tray Size (mm) | 500x350 | 740x460 | 970x760 |
| Power Rating (W) | 550 | 750 | 1420 |
| Temperature Range (°C) | 4-60 | ||
| Temperature Accuracy (°C) | ±0.1 | ||
| Temperature Uniformity (°C) | ±1 | ||
| Timing Range | 1-9999min | ||
| Display | LCD | ||
| Power Supply | AC220V ~ 240V±10% ・ 50 ~ 60HZ | ||
| Tray Included | 2 | ||
| Volume WxDxH(mm) | 66x44x65(170L) | 84x52x64(280L) | 109.5x62.5x85(582L) |
| Exterior Size(WxDxH)mm | 70x56x126 | 95x70x126 | 120x82x160 |
| Net Weight(kg) | 165 | 240 | 425 |
