Model :AE-LYZ-103B~AE-LYZ-200BP
A benchtop shaking incubator combines temperature control with shaking motion to promote the growth of cultures. It provides a stable environment for incubation while gently agitating samples, which improves mixing and enhances microbial growth or chemical reactions. Its compact size allows it to fit on a laboratory bench
Need Help with This Product?
A benchtop shaking incubator is a versatile laboratory instrument that combines incubation with agitation. It provides controlled heating and consistent shaking to enhance the growth of microorganisms or the mixing of samples. The device typically features adjustable speed and temperature settings, allowing it to accommodate various types of experiments, including cell culture, enzyme reactions, and chemical processes. Its compact, bench-friendly design makes it suitable for use in smaller lab spaces.
Features：

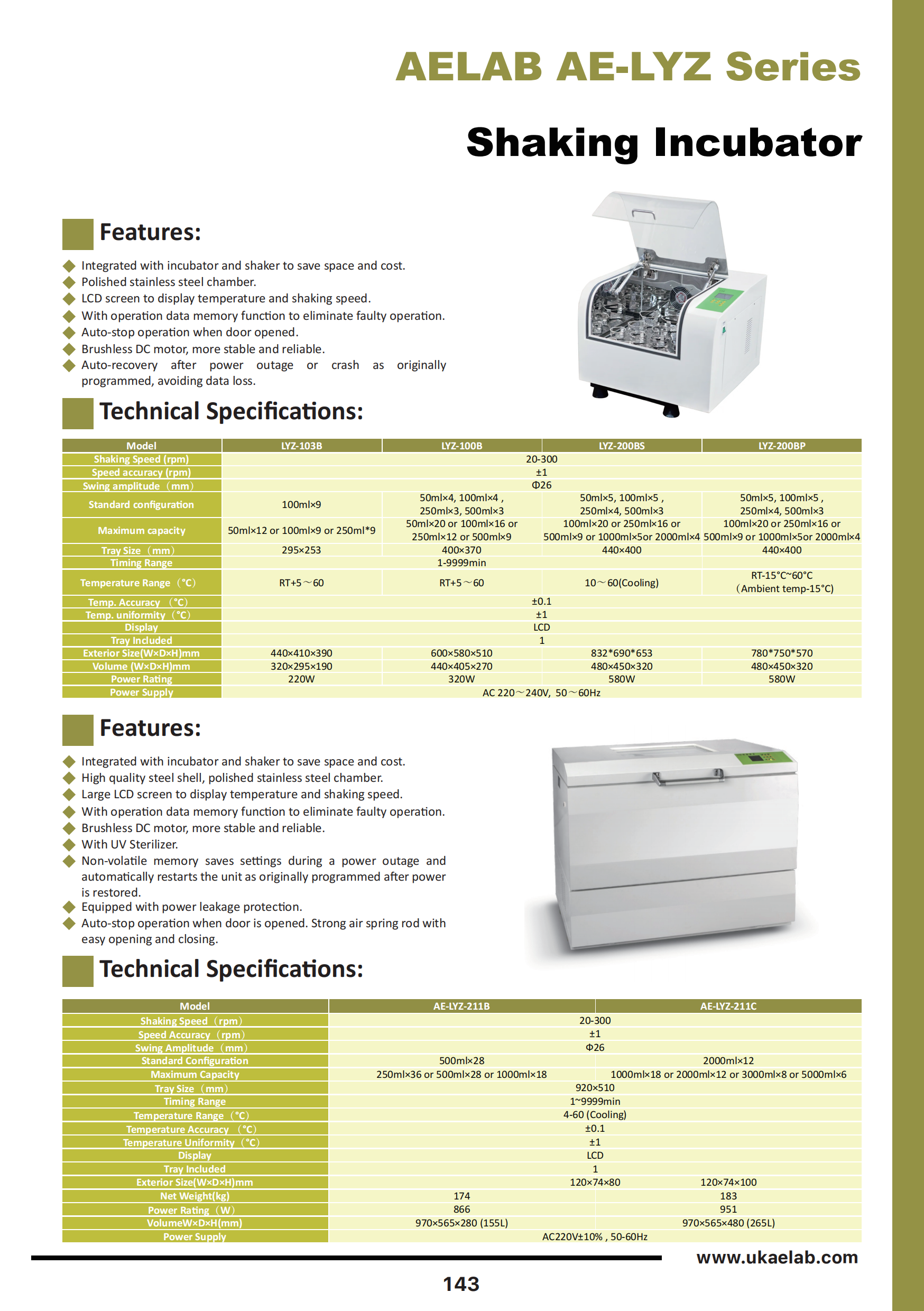

| Model | AE-LYZ-103B | AE-LYZ-100B | AE-LYZ-200BS | AE-LYZ-200BP |
| Shaking Speed (rpm) | 20-300 | |||
| Speed accuracy (rpm) | ±1 | |||
| Swing amplitude（mm） | Φ26 | |||
| Standard configuration | 100ml×9 | 50ml×4, 100ml×4 ,
250ml×3, 500ml×3 |
50ml×5, 100ml×5 ,
250ml×4, 500ml×3 |
50ml×5,100ml×5 ,
250ml×4, 500ml×3 |
| Maximum capacity | 50ml×12 or 100ml×9 or 250ml*9 | 50ml×20 or 100ml×16 or 250ml×12 or 500ml×9 | 100ml×20 or 250ml×16 or 500ml×9 or 1000ml×5 or 2000ml×4 | 100ml×20 or 250ml×16 or 500ml×9 or 1000ml×5 or 2000ml×4 |
| Tray Size（mm） | 295×253 | 400×370 | 440×400 | 440×400 |
| Timing Range | 1-9999min | |||
| Temperature Range（℃） | RT+5～60 | RT+5～60 | 10～60(Cooling) | RT-15℃~60℃
（Ambient temp-15℃) |
| Temp. Accuracy （℃） | ±0.1 | |||
| Temp. uniformity（℃） | ±1 | |||
| Display | LCD | |||
| Tray Included | 1 | |||
| Exterior Size(W×D×H)mm | 440×410×390 | 600×580×510 | 832*690*653 | 780*750*570 |
| Volume (W×D×H)mm | 320×295×190 | 440×405×270 | 480×450×320 | 480×450×320 |
| Power Rating | 220W | 320W | 580W | 580W |
| Power Supply | AC 220～240V, 50～60Hz | |||
