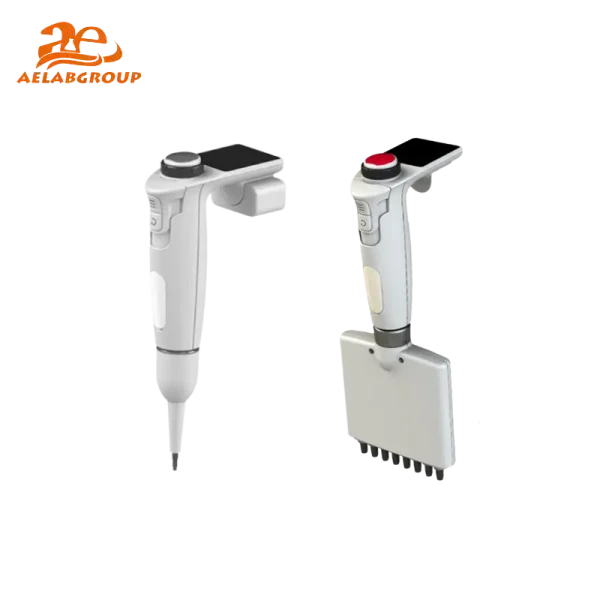

AELAB Single / 8 / 12 Channels Electronic Pipette – Precision Electronic Pipetting

Model :AE-EP Electronic Pipette Series

The AELAB AE-EP Series Electronic Pipette provides accurate, stable, and repeatable liquid handling across single, 8-channel, and 12-channel configurations. Designed for precision micro-volume dosing, the instrument minimizes systematic and random errors while supporting high-throughput analytical, biological, and diagnostic workflows.

Instant Quote WhatsApp Send Email

Downloads

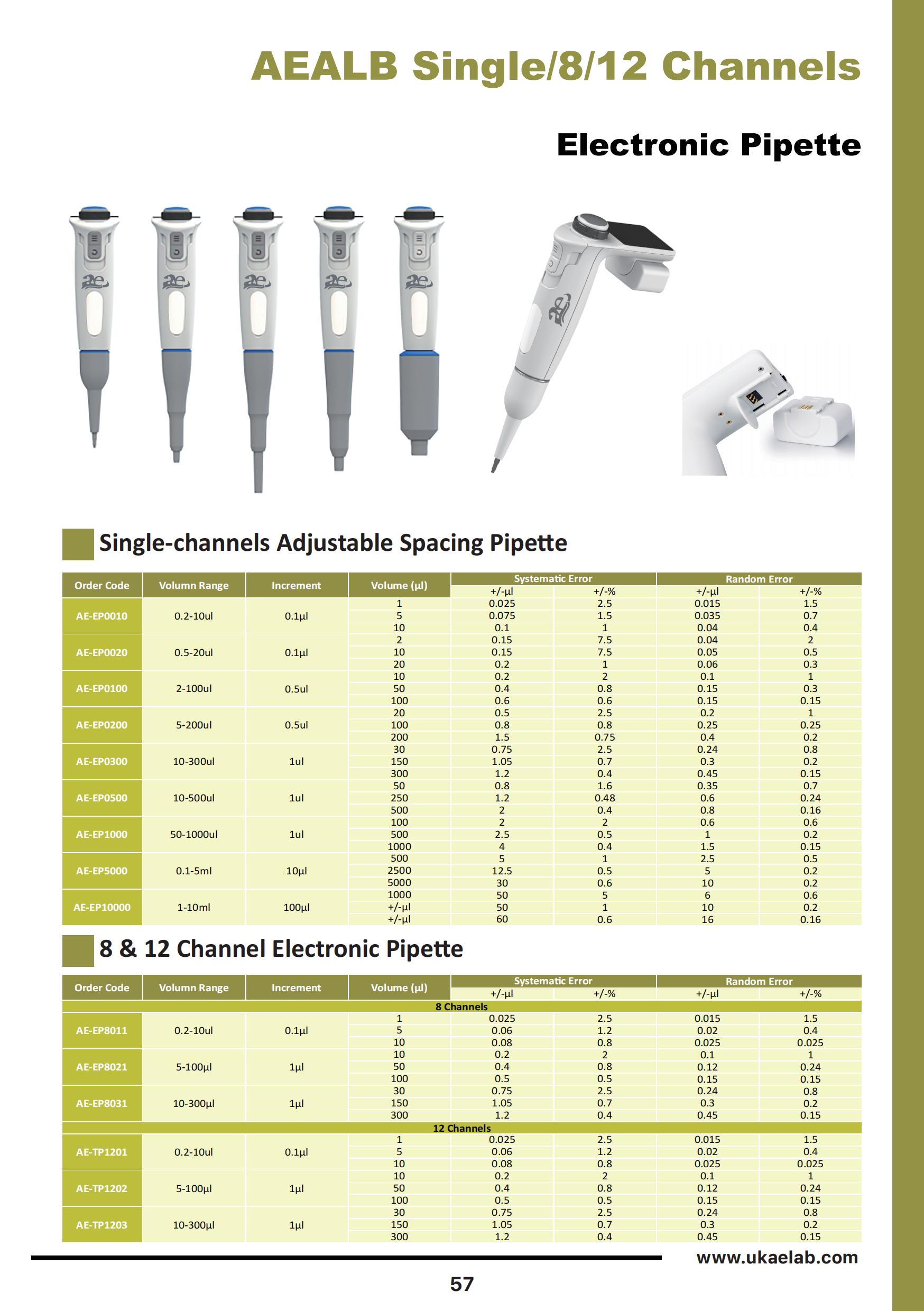

Single/8/12 Channels Electronic Pipette AE-EP0010 PNG · 604.30 KB

Need Help with This Product?

Ella Wu +8615800016110

Overview

The AELAB AE-EP Series Electronic Pipette is engineered for precise liquid transfer across a diverse range of laboratory and diagnostic applications. Designed with adjustable electronic control, the instrument ensures accurate dispensing and minimizes user-dependent variability. The electronic drive system enables consistent aspiration and dispensing cycles for micro-volume and high-throughput workflows.

The system incorporates intuitive volume selection, ergonomic handling, and high-precision calibration that aligns with GLP performance requirements. Each AELAB AE-EP model supports stable operation across repeated cycles, making the series ideal for analytical laboratories, clinical testing facilities, biotechnology research, and industrial quality control.

⚙️ Design & Construction

The AELAB AE-EP electronic pipettes feature a robust microprocessor-controlled dispensing mechanism housed in a durable laboratory-grade frame. The pipette body uses chemically resistant materials to support routine laboratory cleaning, while the plunger mechanism ensures stable force transmission. Adjustable spacing mechanisms on single-channel units support flexible positioning across various microplate formats. Multi-channel models use synchronized piston assemblies for uniform channel performance.

🔬 Working Principle / Testing Method

The AE-EP Series operates through an internal electronic motor that regulates piston displacement for aspiration and dispensing. The user selects the target volume via electronic adjustment, and the microcontroller calculates the corresponding stroke length. This ensures reproducible pipetting cycles independent of operator technique. The system continuously stabilizes flow rate and stroke speed to control aspiration accuracy and minimize aerosol formation.

💡 Key Advantages

Electronic regulation ensures consistent stroke speed and reduced operator variability.
Low systematic and random error values across the complete volume range.
Multiple configuration options: single-channel, 8-channel, and 12-channel.
High repeatability for microplate-based assays and high-throughput screening.
Ergonomic grip design minimizes user fatigue during extended pipetting sessions.
Wide compatibility with standard universal pipette tips.
Adjustable volume increments for precise micro-volume applications.

🔗 Connectivity & Integration

The AE-EP electronic pipettes integrate internal digital control and can be factory-calibrated to laboratory protocols. Models support external calibration checks with traceable standards and include microprocessor-stored configuration settings for consistent daily operation. USB-based charging and maintenance ports (where applicable) allow convenient workflow integration.

🧠 Model Insight

Model	Specifications
AE-EP0010	0.2–10µl, 0.1µl increment; systematic error 0.025–0.1µl
AE-EP0020	0.5–20µl, 0.1µl increment; systematic error 0.015–0.2µl
AE-EP0100	2–100µl, 0.5µl increment; systematic error 0.02–0.6µl
AE-EP0200	5–200µl, 0.5µl increment; systematic error 0.05–1.5µl
AE-EP0300	10–300µl, 1µl increment; systematic error 0.75–1.2µl
AE-EP0500	10–500µl, 1µl increment; systematic error 0.2–1.2µl
AE-EP1000	50–1000µl, 1µl increment; systematic error 2–4µl
AE-EP5000	0.1–5ml, 10µl increment; systematic error 1–25µl
AE-EP10000	1–10ml, 100µl increment; systematic error 5–50µl
AE-EP8011 / AE-TP1201	8 or 12 channels, 0.2–10µl
AE-EP8021 / AE-TP1202	8 or 12 channels, 5–100µl
AE-EP8031 / AE-TP1203	8 or 12 channels, 10–300µl

🧪 Testing Applications

Microbiology and molecular biology workflows requiring accurate micro-volume dispensing.
ELISA, PCR, and microplate-based analytical assays.
Chemical, pharmaceutical, and food quality control labs.
Clinical diagnostics and research laboratories handling multi-sample processing.
High-throughput screening and automated bench workflows.

Compliance & Quality Assurance

AELAB electronic pipettes follow ISO-style volumetric performance tolerances, with full GLP-compliant calibration capability. Each unit is factory tested with traceable standards to ensure systematic and random error values remain within specified limits.

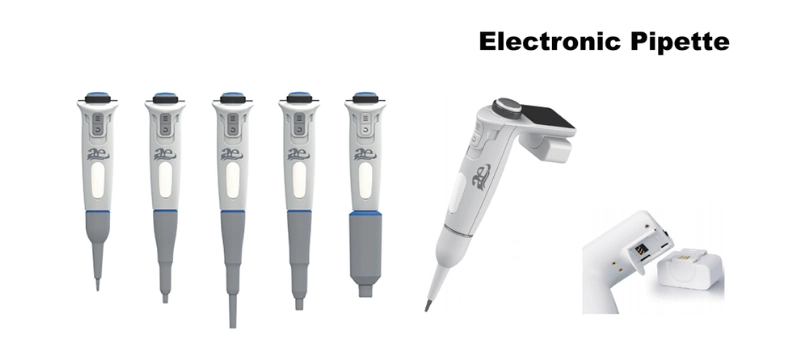

Single-8-12 Channels Electronic Pipette

Specifications

Single-Channel Adjustable Spacing Pipette

Order Code	Volume Range	Increment	Volume (µl)	Systematic Error		Random Error
AE-EP0010	0.2–10µl	0.1µl	1	0.025µl	2.5%	0.015µl	1.5%
			5	0.075µl	1.5%	0.035µl	0.7%
			10	0.1µl	1%	0.04µl	0.4%
AE-EP0020	0.5–20µl	0.1µl	2	0.015µl	7.5%	0.04µl	2%
			10	0.15µl	7.5%	0.05µl	0.5%
			20	0.2µl	1%	0.06µl	0.3%
AE-EP0100	2–100µl	0.5µl	10	0.2µl	2%	0.01µl	1%
			50	0.4µl	0.8%	0.15µl	0.3%
			100	0.6µl	0.6%	0.15µl	0.15%
AE-EP0200	5–200µl	0.5µl	20	0.05µl	2.5%	0.2µl	1%
			100	0.8µl	0.8%	0.25µl	0.25%
			200	1.5µl	0.75%	0.4µl	2%
AE-EP0300	10–300µl	1µl	30	0.75µl	2.5%	0.24µl	0.8%
			150	1.05µl	0.7%	0.31µl	0.2%
			300	1.2µl	0.4%	0.45µl	0.15%
AE-EP0500	10–500µl	1µl	50	0.8µl	1.6%	0.35µl	0.7%
			250	1.2µl	0.48%	0.6µl	0.24%
			500	2µl	0.4%	0.8µl	0.16%
AE-EP1000	50–1000µl	1µl	100	2µl	2%	0.6µl	0.6%
			500	2.5µl	0.5%	1µl	0.2%
			1000	4µl	0.4%	1.5µl	0.15%
AE-EP5000	0.1–5ml	10µl	500	5µl	1%	0.25µl	0.5%
			2500	12.5µl	0.5%	5µl	0.2%
			5000	30µl	0.6%	10µl	0.2%
AE-EP10000	1–10ml	100µl	1000	50µl	5%	6µl	0.6%
			+/-	50µl	1%	10µl	0.2%
			+/-	60µl	0.6%	16µl	0.16%

8 & 12 Channel Electronic Pipette

Order Code	Volume Range	Increment	Volume (µl)	Systematic Error		Random Error
AE-EP8011	0.2–10µl	0.1µl	1	0.025µl	2.5%	0.015µl	1.5%
			5	0.06µl	1.2%	0.02µl	0.4%
			10	0.08µl	0.8%	0.025µl	0.025%
AE-EP8021	5–100µl	1µl
			10	0.2µl	2%	0.1µl	1%
			50	0.4µl	0.8%	0.12µl	0.24%
			100	0.5µl	0.5%	0.15µl	0.15%
AE-EP8031	10–300µl	1µl	30	0.75µl	2.5%	0.24µl	0.8%
			150	1.05µl	0.7%	0.3µl	0.2%
			300	1.2µl	0.4%	0.45µl	0.15%
AE-TP1201	0.2–10µl	0.1µl	1	0.025µl	2.5%	0.015µl	1.5%
			5	0.06µl	1.2%	0.02µl	0.4%
			10	0.08µl	0.8%	0.025µl	0.25%
AE-TP1202	5–100µl	1µl
			10	0.2µl	2%	0.1µl	1%
			50	0.4µl	0.8%	0.12µl	0.24%
			100	0.5µl	0.5%	0.15µl	0.15%
AE-TP1203	10–300µl	1µl	30	0.75µl	2.5%	0.24µl	0.8%
			150	1.05µl	0.7%	0.3µl	0.2%
			300	1.2µl	0.4%	0.45µl	0.15%
