Model :AE-6SP12 ~ AE-6SP1200,AE-8SP12 ~ AE-8SP110A,AE-12SP12 ~ AE-12SP110

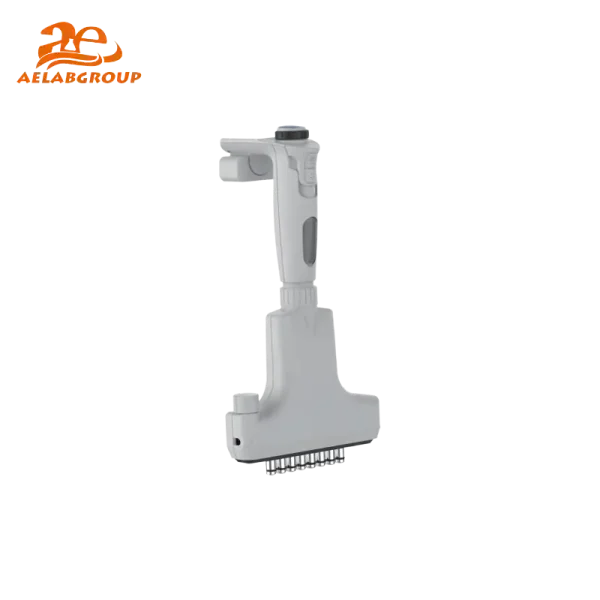

The AELAB Variable Spacing Electronic Pipette delivers precise multichannel liquid handling with electronically controlled dispensing and adjustable channel spacing from 4.5–26 mm. Designed for 6, 8, and 12 channels, it supports rapid transfers between tubes, plates, and culture formats, improving throughput and reproducibility in laboratory workflows.
Need Help with This Product?
The AELAB Variable Spacing Electronic Pipette is engineered for high-precision liquid handling across microplates, centrifuge tubes, culture vessels, and tube racks. The design allows channel spacing to be quickly adjusted, supporting positions from 4.5 mm to 26 mm depending on the model. This flexibility improves workflow efficiency, reduces handling time, and enhances reproducibility in laboratory assays.
The pipette integrates a flexible ergonomic handle, 360° rotation, and corrosion-resistant components. It features an external lithium battery with extended continuous use time and supports rapid manual spacing adjustment for high-throughput operations.
The AELAB Variable Spacing Electronic Pipette incorporates a robust body with an electronically controlled aspiration and dispensing mechanism. The ergonomic handle rotates freely for user comfort, and the suction head spacing is manually adjustable using a precision rotation knob. Each model uses corrosion-resistant components, ensuring durability in demanding laboratory environments.
The pipette utilizes an electronic drive to regulate aspiration and dispensing volumes with high accuracy. Volume adjustments are made through a digital control knob, while spacing is modified mechanically to match required vessel formats. The system stabilizes liquid transfer across multiple channels for microplates, 96-wells, 384-wells, cell culture plates, and tube-to-plate transfers.
This electronic pipette includes onboard control keys for menu selection, speed adjustment, and range control. While not requiring PC connectivity, the instrument integrates into standard GLP workflows and supports consistent multi-format transfer operations.
| Model | Specifications |
|---|---|
| AE-6SP Series | 6 channels, 9–19 mm spacing range, 0.5–1200 µl models |
| AE-8SP Series | 8 channels, 9–19 mm or 4.5–14 mm spacing, up to 1200 µl |
| AE-12SP Series | 12 channels, 4.5–9 mm spacing, 0.5–110 µl range |
The AELAB Variable Spacing Electronic Pipette is widely used for blood analysis, gel loading, orifice plate transfers, microplate filling, centrifuge tube transfers, cell plating, and general liquid handling in biotechnology, microbiology, diagnostics, and research laboratories.
All models follow AELAB manufacturing standards, aligning with ISO-style liquid handling requirements. Every pipette undergoes quality validation, calibration procedures, and functionality checks to ensure consistent performance under GLP conditions.
Six-channels Adjustable Spacing Pipette
| Model | Range | Max capacity | Spacing | 384 well plate (4.5 mm) | 96 well plate (9 mm) | 48 well plate (13 mm) | 24 well plate (19 mm) | 12 well plate (26 mm) |
|---|---|---|---|---|---|---|---|---|
| AE-6SP12 | 0.5–12.5 µl | 13 µl | 9–19 mm | √ | √ | √ | √ | |
| AE-6SP50 | 2–50 µl | 50.5 µl | √ | √ | √ | √ | ||
| AE-6SP110 | 5–110 µl | 115 µl | √ | √ | √ | √ | ||
| AE-6SP300 | 10–300 µl | 320 µl | √ | √ | √ | √ | ||
| AE-6SP1200 | 50–1200 µl | 1250 µl | √ | √ | √ | √ |
Eight-channels Adjustable Spacing Pipette
| Model | Range | Max capacity | Spacing | 384 well plate (4.5 mm) | 96 well plate (9 mm) | 48 well plate (13 mm) | 24 well plate (19 mm) | 12 well plate (26 mm) |
|---|---|---|---|---|---|---|---|---|
| AE-8SP12 | 0.5–12.5 µl | 13 µl | 9–19 mm | √ | √ | |||
| AE-8SP50 | 2–50 µl | 50.5 µl | √ | √ | ||||
| AE-8SP110 | 5–110 µl | 115 µl | √ | √ | ||||
| AE-8SP300 | 10–300 µl | 320 µl | √ | √ | ||||
| AE-8SP1200 | 50–1200 µl | 1250 µl | √ | √ | ||||
| AE-8SP12A | 0.5–12.5 µl | 13 µl | 4.5–14 mm | √ | √ | √ | ||
| AE-8SP50A | 2–50 µl | 50.5 µl | √ | √ | √ | |||
| AE-8SP110A | 5–110 µl | 115 µl | √ | √ | √ |
Twelve-channels Adjustable Spacing Pipette
| Model | Range | Max capacity | Spacing | 384 well plate (4.5 mm) | 96 well plate (9 mm) | 48 well plate (13 mm) | 24 well plate (19 mm) | 12 well plate (26 mm) |
|---|---|---|---|---|---|---|---|---|
| AE-12SP12 | 0.5–12.5 µl | 13 µl | 4.5–9 mm | √ | √ | |||
| AE-12SP50 | 2–50 µl | 50.5 µl | √ | √ | ||||
| AE-12SP110 | 5–110 µl | 115 µl | √ | √ |
