Overview

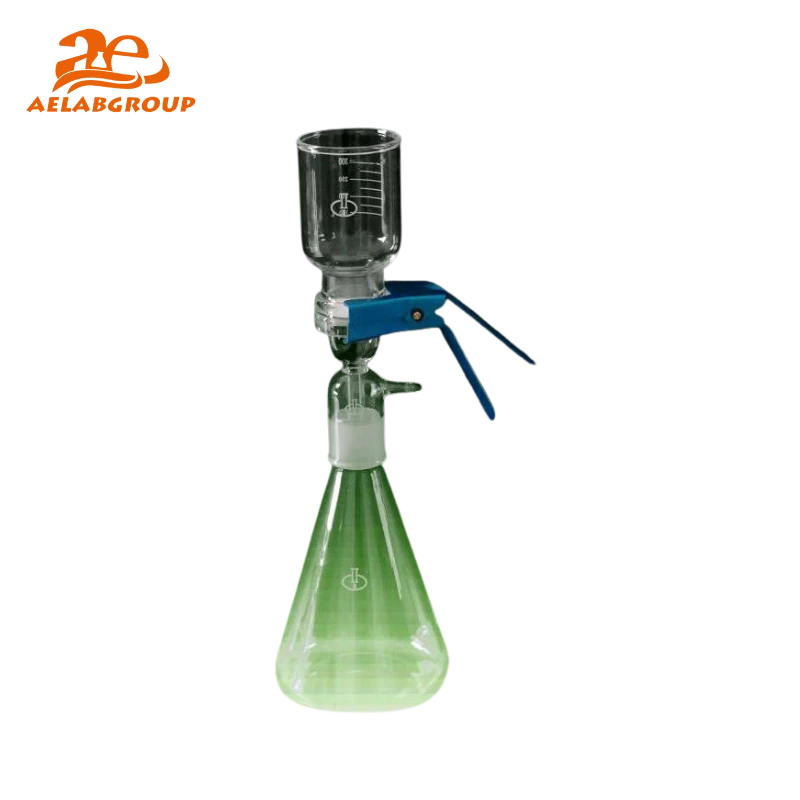

The AELAB Glass Solvent Filtration Apparatus is an essential laboratory instrument for preparing HPLC mobile phases, removing particulates, and eliminating microbiological contamination. With high-quality borosilicate glass or stainless-steel construction, it ensures precision, chemical resistance, and long-term reliability in analytical workflows.

🔬 How It Works?

The Glass Solvent Filtration Apparatus uses vacuum-assisted filtration to separate particulates and microorganisms from solvents. The sample is poured into a graduated funnel, and negative pressure pulls the liquid through a filter membrane supported by a fritted base. This ensures precise, contamination-free separation, making it essential for HPLC mobile phase preparation and microbiological analysis.

💡 Advantages

• High Durability: Resistant to aqueous, organic, and corrosive solutions
• Versatile Use: Suitable for HPLC, microbiological testing, and particulate removal
• Autoclavable: Easy sterilization at 121℃ for safe reuse
• Precision Design: Graduated funnels and fritted bases guarantee accuracy
• Cost-Effective: Long service life minimizes replacement costs

🔍 Recommended Models by Use Case

• Educational Labs: FB-C-4 or FB-C-40 (compact, 25mm filters, 40ml capacity)
• Research Centers: FB-G-01 or FB-G-02 (larger volumes, up to 2L, ideal for high-throughput)
• Quality Control Labs: FB-S-30 or FB-S-50 (robust stainless-steel construction for routine use)
• General Lab Use: FB-G-50 (versatile 300ml capacity for everyday applications)

🧪 Ideal For

• HPLC mobile phase preparation
• Food and beverage testing labs
• Pharmaceutical and chemical analysis
• Microbiological research
• Environmental and water quality testing

Specifications

Name	Type	Components	Filter size	Prefilter size	Grad. volume
All glass vacuum filter holder	FB-G-01	graduated glass funnel, fritted glass base with side arm, joint flask, anodized aluminum clamp, vacuum hose	50mm/47mm		300ml/ 1L
	FB-G-02				500ml/ 2L
Cylinder stylefiltration assembles	FB-C-4	cylinder style funnel, fritted glass base, stainless steel clamp, 11#silicone stopper, joint flask with side arm	25mm		40ml
Glass filter holder	FB-G-50	graduated glass funnel, fritted glass base, anodized aluminum clamp, silicone stopper	50mm/47mm		300ml
Cylinder style glass filter holder	FB-C-40	cylinder style funnel, fritted glass base, stainless steel clamp, 9#or 11#silicone stopper.	25mm		40ml
Stainless steel filter holder	FB-S-30	graduated stainless steel funnel, fritted stainless steel base, anodized aluminum clamp	50mm/47mm		300ml
	FB-S-50				500ml
