Overview

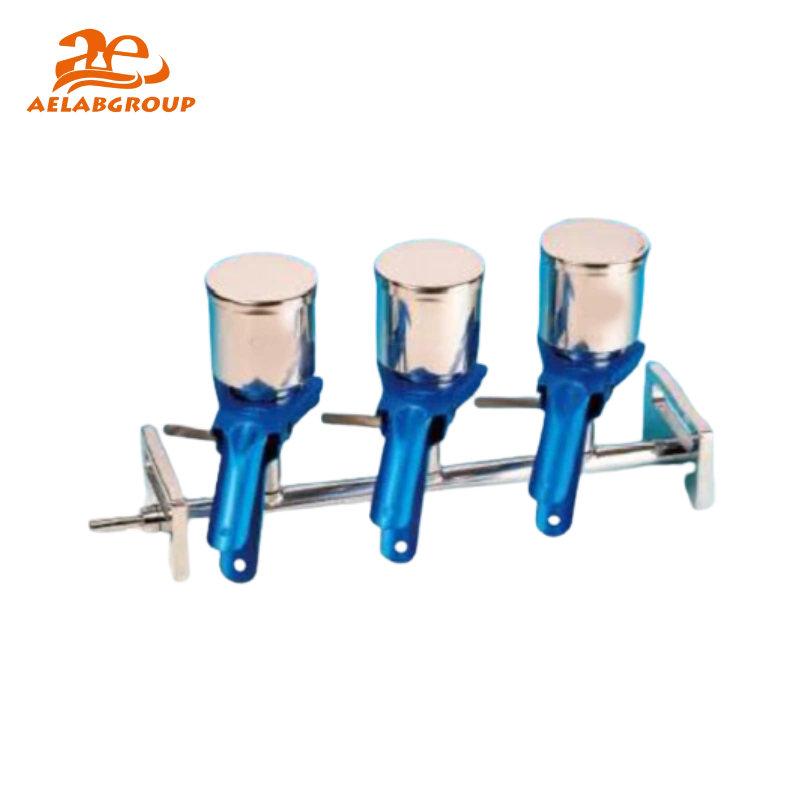

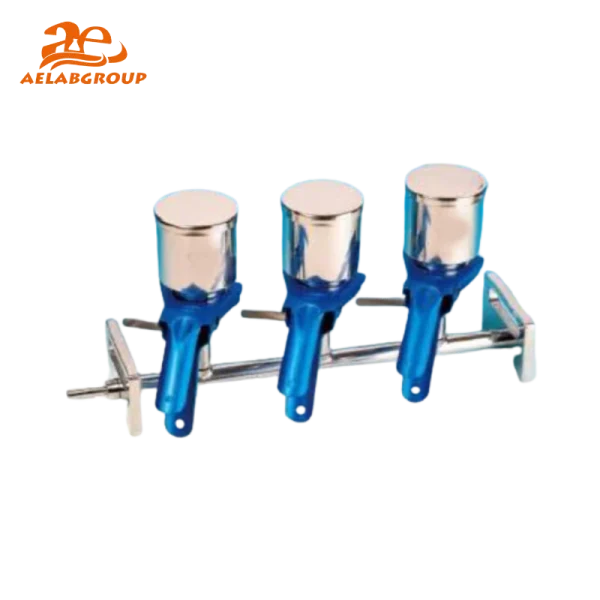

The AELAB Stainless Steel Solvent Filtration Apparatus is engineered for high-efficiency laboratory filtration, ideal for microbiological testing, HPLC mobile phase preparation, and particulate analysis. With options for 3-unit and 6-unit manifolds, it supports simultaneous multi-sample processing. Constructed from high-grade stainless steel, the system ensures long-term durability, acid and alkali resistance, and reliable analytical results. Autoclavable and sterilizable by dry heat at 180℃, it provides both safety and convenience for routine lab operations.

🔬 How It Works?

The apparatus uses a vacuum-driven manifold system where multiple filtration units operate simultaneously. Samples are filtered through membranes held in stainless steel or glass filter holders, collected in a glass bottle below. The stainless-steel design ensures chemical resistance, while the manifold structure enables high-throughput testing with consistent, reproducible results.

💡 Advantages

• Multi-sample filtration (3 or 6 units) saves time in busy labs
• High chemical resistance – ideal for acids, alkalis, and organic solvents
• Autoclavable and sterilizable at 180℃ for contamination-free use
• Easy to clean, with no dead corners or liquid residue accumulation
• Leakproof sealing with anodized aluminum clip design
• Robust stainless-steel build for long service life

🔍 Recommended Models by Use Case

• FB-MC-G3 → 3-unit stainless steel manifold with glass filtration units (ideal for standard lab filtration tasks)
• FB-MC-S3 → 3-unit stainless steel manifold with stainless steel filtration units (extra durability for aggressive solvents)
• FB-MC-G6 → 6-unit stainless steel manifold with glass filtration units (higher throughput with cost efficiency)
• FB-MC-S6 → 6-unit stainless steel manifold with stainless steel filtration units (maximum durability and capacity for intensive workflows)

🧪 Ideal For

• Pharmaceutical quality control laboratories
• HPLC mobile phase filtration
• Microbiological and sterility testing
• Food, beverage, and water analysis
• Environmental and chemical testing facilities

Specifications

Type	Components	Picture
FB-MC-G3	1) Stainless Steel Manifold 2) Three Glass Filtration Units 3) One Glass Collect Bottle 4)Two pieces of hosepipe
FB-MC-S3	1) Stainless Steel Manifold 2) Three Stainless Steel Filtration Units 3) One Glass Collect Bottle 4)Two pieces of hosepipe
FB-MC-S6	1) Stainless Steel Manifold 2)Six Stainless Steel Filtration Units 3) One Glass Collect Bottle 4)Two pieces of hosepipe
FB-MC-G6	1) Stainless Steel Manifold 2) Six Glass Filtration Units 3) One Glass Collect Bottle 4)Two pieces of hosepipe
