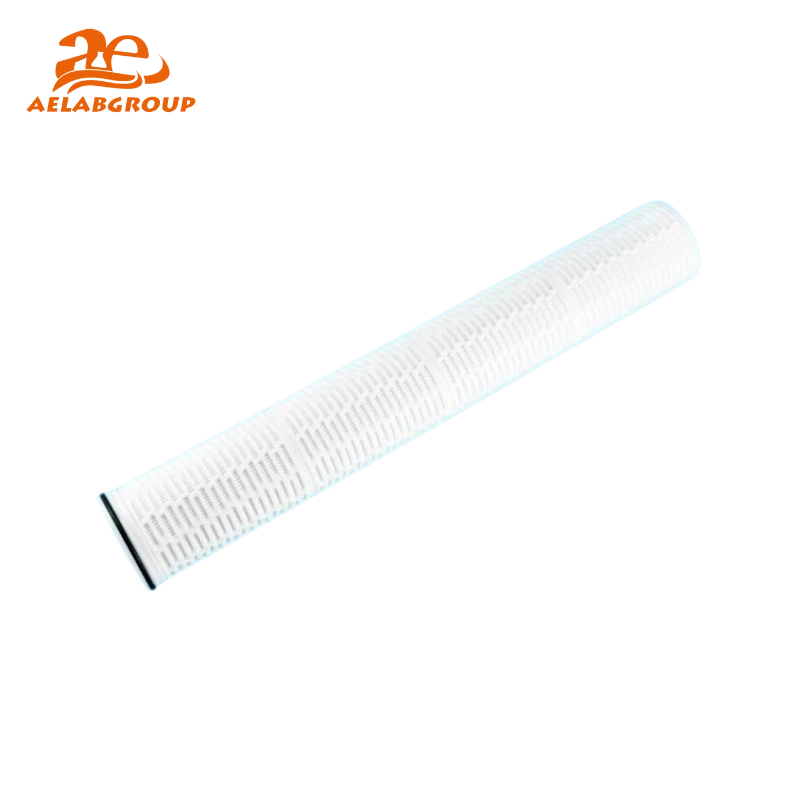

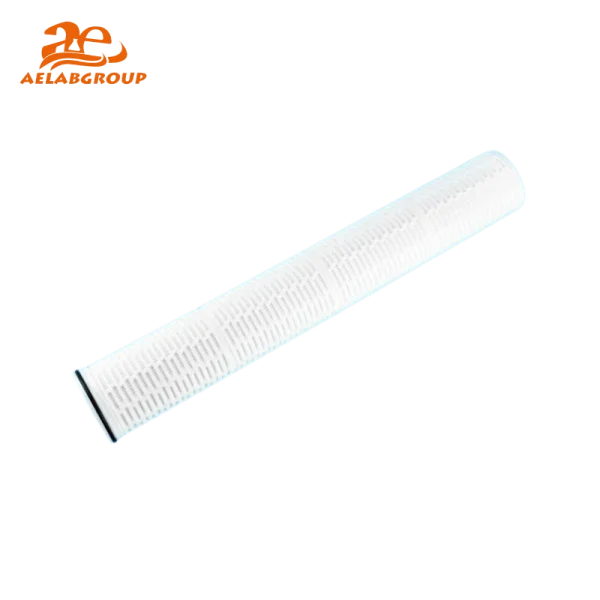

AELAB HFA High Flow Filter Cartridge – Large Filtration Area & PP Membrane

Model :HFA series

The AELAB HFA Series High Flow Filter Cartridge delivers superior filtration performance with its ultra-fine polypropylene (PP) membrane and innovative horizontal folding technology. Designed with a 6-inch large diameter and super-large filtration area, it reduces the number of cartridges required, lowering both equipment and labor costs while maintaining exceptional filtration efficiency.

WhatsApp Us Ask by Email

Need Help with This Product?

Ella Wu +8615800016110

Overview

The AELAB HFA High Flow Filter Cartridge is engineered with ultra-fine polypropylene (PP) membranes and advanced folding technology to maximize filtration efficiency. Its large 6-inch diameter and multi-layer structure significantly reduce cartridge quantity requirements, cutting down equipment and labor costs while maintaining precise and reliable results.

🔬 How It Works?

The AELAB HFA filter cartridge utilizes a multi-layer ultra-fine polypropylene membrane with horizontal folding to expand the filtration area. When liquid passes through the large-diameter cartridge, suspended particles and contaminants are efficiently captured by the layered membrane structure. This design ensures consistent performance, extended service life, and high throughput while minimizing system downtime and replacement frequency.

💡 Advantages

Super-Large Filtration Area – Reduces the number of cartridges needed for the same flow.
High Filtration Efficiency – Premium PP membrane ensures reliable separation.
Flexible Configurations – Up to 10-layer membrane design for different filtration needs.
Cost-Effective – Fewer cartridges and smaller housings reduce equipment investment.
Safety & Durability – Infrared welding technology eliminates adhesives, ensuring structural integrity.
Quality Assured – Manufactured under ISO 9001 & ISO 13485 systems for consistency and reliability.

🔍 Recommended Models by Use Case

Educational & Training Labs: 20″ cartridges for pilot-scale filtration and teaching demonstrations.
Research Centers & QC Labs: 40″ models for high-precision, medium-volume filtration.
Industrial Water Treatment & Desalination Plants: 60″ cartridges for large-scale, continuous operation with maximum efficiency.

🧪 Ideal For

Reverse Osmosis (RO) systems
Electrodeionization (EDI) units
Coal chemical processing
Seawater desalination plants
Thermal power plants
General water purification and security filtration

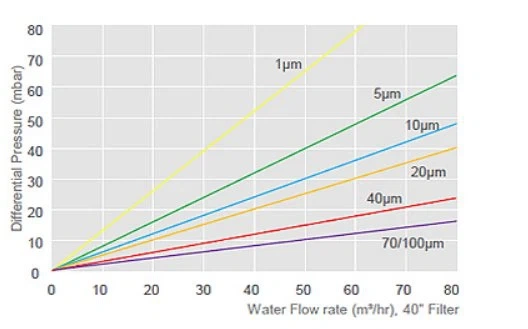

Flow characteristics

AELAB HFA High Flow Filter Cartridge – Large Filtration Design

Filtration Area

≥ 5.5 m² / 40″

Material Structure

– Filter Material: Polypropylene (PP)
– Center Rod, Outer Framework, End Cover: Polypropylene (PP)
– Diversion Layer: Polypropylene (PP)
– Washer & Gasket: Fluororubber, wrapped with PTFE, EPDM

Filter Cartridge Dimension

– Outer Diameter: 165 mm
– Length: 20″, 40″, or 60″

Operating Characteristics

– Operating Temperature: ＜ 80 ℃
– Forward Withstand Voltage: 4 bar (at 23 ℃)
– Reverse Withstand Voltage: 2 bar (at 23 ℃)

Filtration Precision (μm)

1, 3, 5, 10, 50, 100

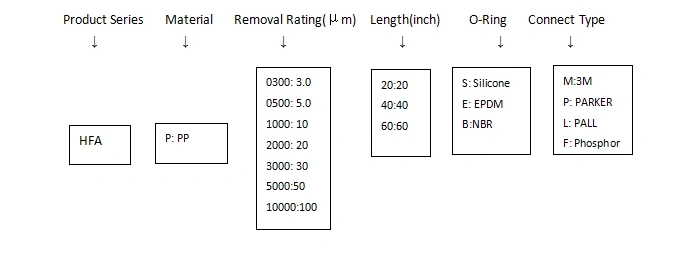

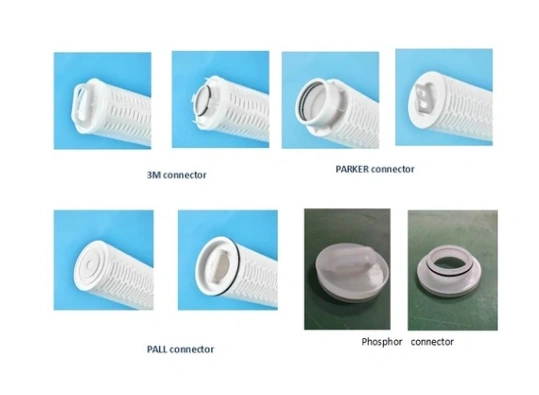

Connect Type

AELAB HFA High Flow Filter Cartridge – Large Filtration Design
