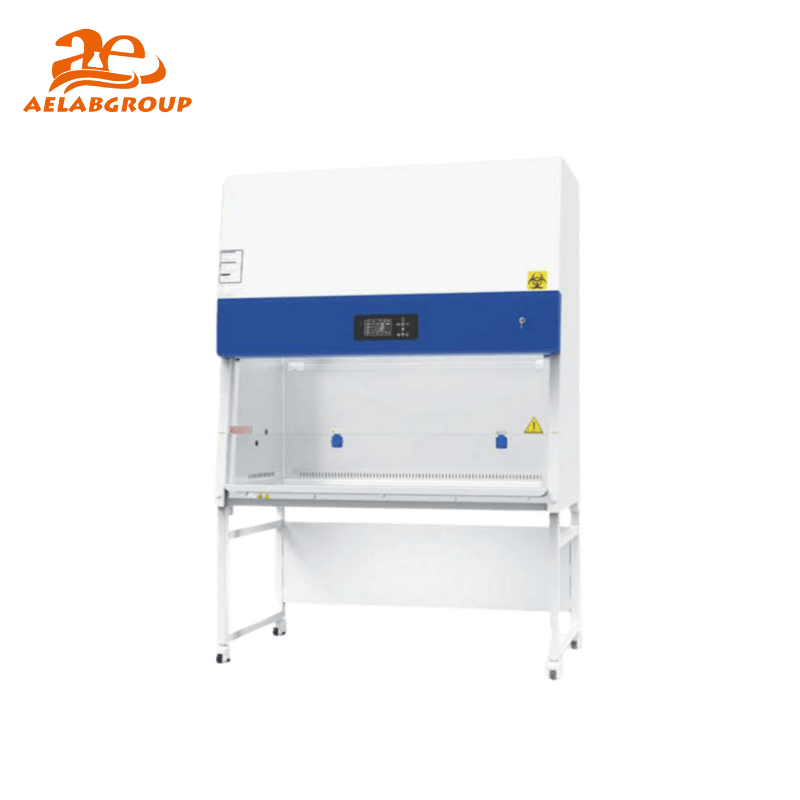

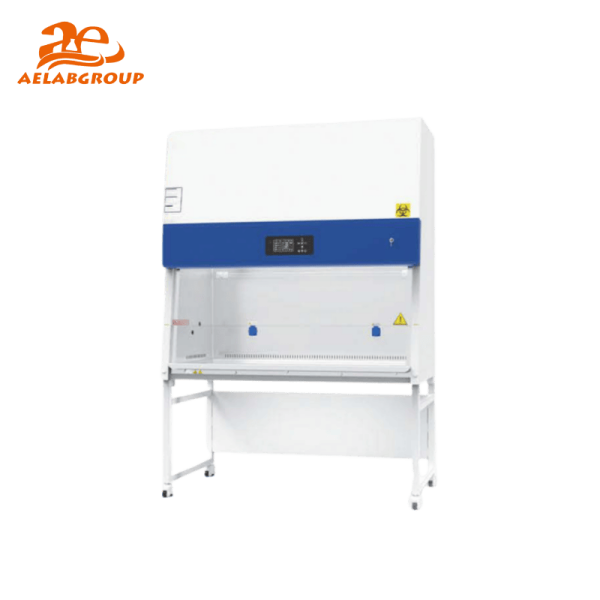

AELAB Class II A2 Biological Safety Cabinet – BSC Series

The AC Series Class II A2 Biological Safety Cabinet (BSC Series) is designed to deliver high-performance protection for users, samples, and the environment in biosafety-critical laboratory environments. It features a real-time color screen that clearly displays operating parameters and supports appointment timing for scheduled functions like decontamination.

The work zone, constructed from durable 304 stainless steel, is surrounded by negative pressure to maintain a contamination-free environment. A motorized front window made of anti-UV, two-layer laminated toughened glass (≥8mm) ensures operator safety and clear visibility.

Ergonomically engineered, the cabinet includes a foot switch that allows hands-free adjustment of the front window, minimizing airflow disturbance during sensitive work. A remote control enables full-function operation from a distance, enhancing convenience and hygiene.

The cabinet is mobile and stable, thanks to Footmaster casters with built-in brakes and leveling feet. A cabinet support block prevents hand injury during lifting, and an iron hook support rod offers added stability when the front panel is open.

A built-in UV lamp emitting 253.7 nanometers ensures effective decontamination of the work area, making the AC Series BSC ideal for microbiology, biotechnology, pharmaceutical, and clinical lab applications where safety and usability are critical.

Features:

1. Color key display: large screen, more clear and dynamic display of various values of the safety cabinet, and has the function of appointment timing.
2. Automatically adjust the wind speed.
3. With power-off memory function, the state before power-off will be restored after power-on, and there will be visual prompts and alarms.
4. The integrated design of the operation area makes it easy to disassemble and clean.
5. The cabinet is separated from the base. The height of the adjustable base can be customized.
6. Interlocking function: UV lamp and front window; UV lamp and fan, LED lamp; fan and front window.
7. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fans and sockets.
8. The front window closes the double trigger signal, so that the sterilization and disinfection function of the ultraviolet lamp is normally turned on.
9. The negative pressure air duct is equipped with a foreign matter filtering structure to prevent foreign matter such as paper scraps from entering the fan system and affecting the normal operation of the product.
10. The front window glass has a one-key lift function
11. The cabinet is designed with a 10° inclination angle, which is in line with ergonomic principles, with a larger viewing angle, convenient operation and more humanization.
12. The one-piece hand rest has a large flat surface, which has a larger contact area with the arm and is more comfortable.

✅ 🔬 How It Works?

The AELAB Class II A2 BSC uses a dual airflow system where 70% of the air is recirculated through ULPA filters and 30% is exhausted. A negative pressure zone ensures contaminants are contained, while ULPA filtration traps airborne particles. UV sterilization decontaminates the interior between sessions. The motorized front sash and foot switch minimize turbulence, maintaining consistent laminar airflow during operation.

✅ 💡 Advantages

• 🧼 Enhanced Sterility: Built-in UV lamp (253.7 nm) with programmable sterilization cycles

• 📺 Smart Display: Real-time LCD display for key operating metrics and safety alerts

• 🔧 Easy Maintenance: One-piece operation area for quick disassembly and cleaning

• 🧍‍♂️ Ergonomic Design: 10° tilt, remote control, one-key window lift, foot switch

• 🔄 Safety Interlocks: UV-fan-window coordination to prevent accidental exposure

• 🔋 Power Memory: Auto-recovery of previous settings after power loss

• 🔒 Contamination Control: Paper filter traps and negative pressure airflow barrier

✅ 🔍 Recommended Models by Use Case

• Educational Labs: BSC-1000 II A2-X – compact, ideal for basic microbiology classes

• Research Institutes: BSC-1300 II A2-X & BSC-1500 II A2-X – balanced size and performance

• Pharma QC & Biotech Labs: BSC-1800 II A2-X – larger workspace for more samples

• Clinical Diagnostics & High-Throughput Labs: BSC-2000 II A2-X – maximum internal space

✅ 🧪 Ideal For

• 🔬 Microbiological and Virology Labs

• 💊 Pharmaceutical Quality Control

• 🧫 Clinical and Diagnostic Laboratories

• 🧬 Biotechnology and Cell Culture Work

• 🧪 Chemical and Pathogen Analysis Facilities

• 🏫 Academic Teaching Labs (Biosafety Training)
