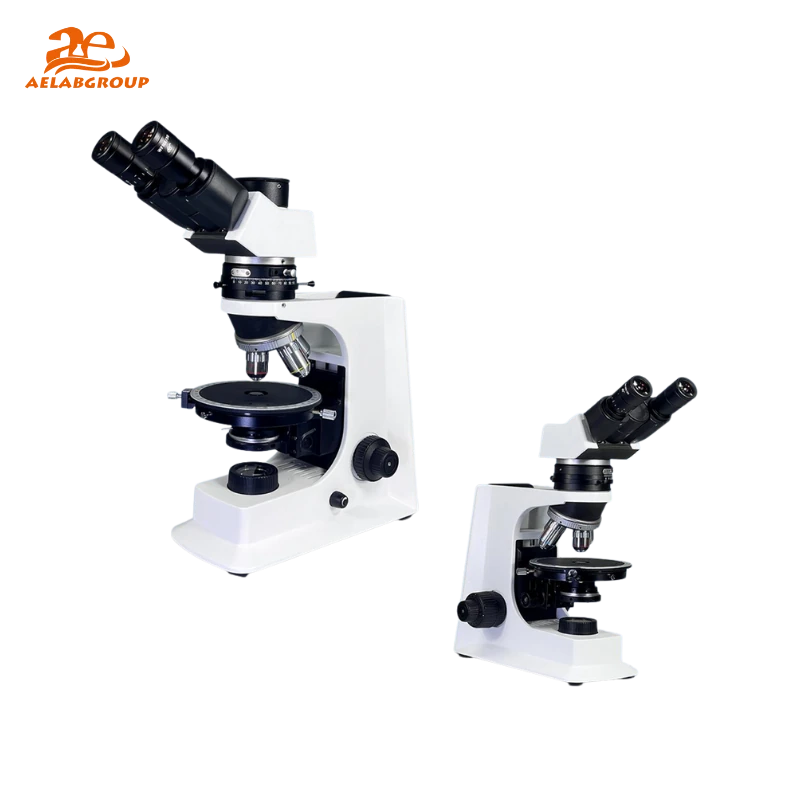

The AELAB AE-PM200 Polarizing Microscope performs precise polarized light microscopy for mineral, crystal, and material structure analysis. Designed with a non-stress infinity optical system and high-stability rotating stage, the AE-PM200 enables accurate birefringence observation and optical interference studies.
Equipped with quartz wedge compensators, adjustable analyzer, and Bertrand lens, the AELAB AE-PM200 Polarizing Microscope supports conoscopic and orthoscopic observation for research laboratories, universities, and industrial quality control environments.

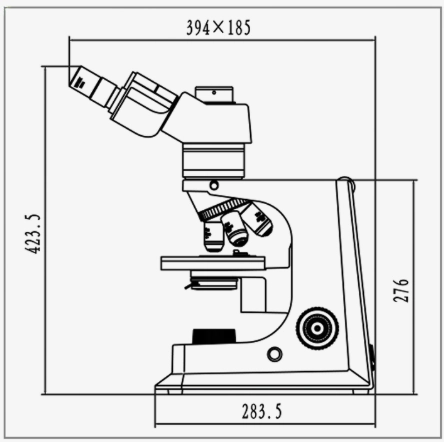

The AE-PM200 Polarizing Microscope adopts a rigid metal frame with precision-aligned optical components. The butterfly Seidentopf viewing head rotates 360° and supports ergonomic observation. Non-stress Infinity Plan objectives reduce internal strain, ensuring optical accuracy during polarized light analysis.
The AELAB AE-PM200 Polarizing Microscope analyzes specimens by transmitting polarized light through anisotropic materials. The polarizer and analyzer generate interference colors, while the quartz wedge and λ/4 slip quantify birefringence, extinction angles, and optical orientation.
The AE-PM200 Polarizing Microscope supports optional C-mount adapters (1× / 0.75× / 0.5×) for camera connection. Trinocular configuration allows simultaneous visual observation and image acquisition for documentation and reporting.
| Model | Viewing Head | Camera Port | Net Weight (kg) |
|---|---|---|---|
| AE-PM200 | Binocular | Optional | 7.5 |
| AE-PM200TR | Trinocular | Standard | 7.5 |
The AELAB AE-PM200 Polarizing Microscope is used for mineral identification, petrographic analysis, crystal structure evaluation, polymer stress analysis, cement inspection, and geological research in academic, industrial, and environmental laboratories.
The AE-PM200 Polarizing Microscope is manufactured under controlled quality procedures aligned with laboratory instrumentation standards. Optical components are factory-aligned, and mechanical stages are calibrated to ensure measurement repeatability and long-term analytical stability.
Specifications :
| Items | Specification | AE-PM200 | AE-PM200TR |
| Eyepiece | WF 10×-20mm | ● | ● |
| WF 10×-20mm (adjustable , reticule 0.1mm) | ● | ● | |
| Non-stress
Infinity Plan Objective |
4× | ● | ● |
| 10× | ● | ● | |
| 20× (S) | ● | ● | |
| 40× (S) | ● | ● | |
| 60× (S) | ○ | ○ | |
| 100× (S, Oil) | ○ | ○ | |

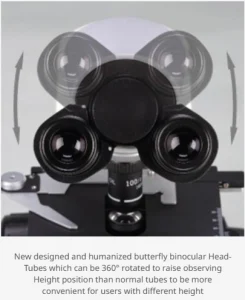

| Butterfly Seidentopf Binocular Head | Inclined 30°, Rotatable 360°,
Interpupilary Distance: 48-75mm. |
● | ○ |
| Butterfly Seidentopf Trinocular Head | Inclined 30°, Rotatable 360°,
Interpupilary Distance: 48-75mm. Light Distribution 20:80 |
○ | ● |
| Nosepiece | Quadplex, Center adjustable | ● | ● |
| Analyzer Unit | 0-90°, It can be moved out of the optical path for single polarizing observe. | ● | ● |
| Bertrand Lens | It can be moved out of the optical path. | ● | ● |

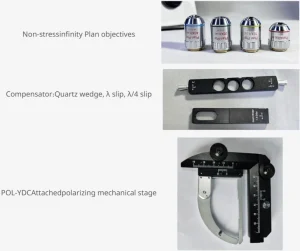

| Compensator | λ Slip (First Class Red) | ● | ● |
| 1/4λSlip | ● | ● | |
| Quartz Wedge (Ⅰ-Ⅳ Class) | ● | ● | |

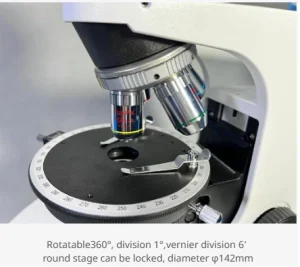

| Revolving Round Stage | Rotatable 360°, Division 1°, Vernier division 6’, can be locked.
Diameter Φ142mm |
● | ● |
| Polarizing Attached Mechanical Stage | ○ | ○ | |
| Condenser | Abbe N.A. 1.25 Non-stress | ● | ● |
| Polarizing Unit | Under the Condenser | ● | ● |
| Illumination | 5W-LED Lamp DC input | ● | ● |
| 12V/30W Halogen Lamp | ○ | ○ | |
| FilterΦ45 | Blue/ Amber / Green / Neutral | ○ | ○ |
| C-mount | 1×/0.75×/0.5×（Focus adjustable） | ○ | ○ |
Note:"●"InTableIsStandardoutfits,"○"IsOptionalAccessories.
PackingSize:570mm×275mm×450mm GrossWeight:8.6kgs NetWeight:7.5kgs
| Items | Specification | AE-PM200 | AE-PM200TR |
| Eyepiece | WF 10×-20mm | ● | ● |
| WF 10×-20mm (adjustable , reticule 0.1mm) | ● | ● | |
| Non-stress
Infinity Plan Objective |
4× | ● | ● |
| 10× | ● | ● | |
| 20× (S) | ● | ● | |
| 40× (S) | ● | ● | |
| 60× (S) | ○ | ○ | |
| 100× (S, Oil) | ○ | ○ | |
| Butterfly Seidentopf Binocular Head | Inclined 30°, Rotatable 360°,
Interpupilary Distance: 48-75mm. |
● | ○ |
| Butterfly Seidentopf Trinocular Head | Inclined 30°, Rotatable 360°,
Interpupilary Distance: 48-75mm. Light Distribution 20:80 |
○ | ● |
| Nosepiece | Quadplex, Center adjustable | ● | ● |
| Analyzer Unit | 0-90°, It can be moved out of the optical path for single polarizing observe. | ● | ● |
| Bertrand Lens | It can be moved out of the optical path. | ● | ● |
| Compensator | λ Slip (First Class Red) | ● | ● |
| 1/4λSlip | ● | ● | |
| Quartz Wedge (Ⅰ-Ⅳ Class) | ● | ● | |
| Revolving Round Stage | Rotatable 360°, Division 1°, Vernier division 6’, can be locked.
Diameter Φ142mm |
● | ● |
| Polarizing Attached Mechanical Stage | ○ | ○ | |
| Condenser | Abbe N.A. 1.25 Non-stress | ● | ● |
| Polarizing Unit | Under the Condenser | ● | ● |
| Illumination | 5W-LED Lamp DC input | ● | ● |
| 12V/30W Halogen Lamp | ○ | ○ | |
| FilterΦ45 | Blue/ Amber / Green / Neutral | ○ | ○ |
| C-mount | 1×/0.75×/0.5×（Focus adjustable） | ○ | ○ |
Note:"●"InTableIsStandardoutfits,"○"IsOptionalAccessories.
PackingSize:570mm×275mm×450mm GrossWeight:8.6kgs NetWeight:7.5kgs
