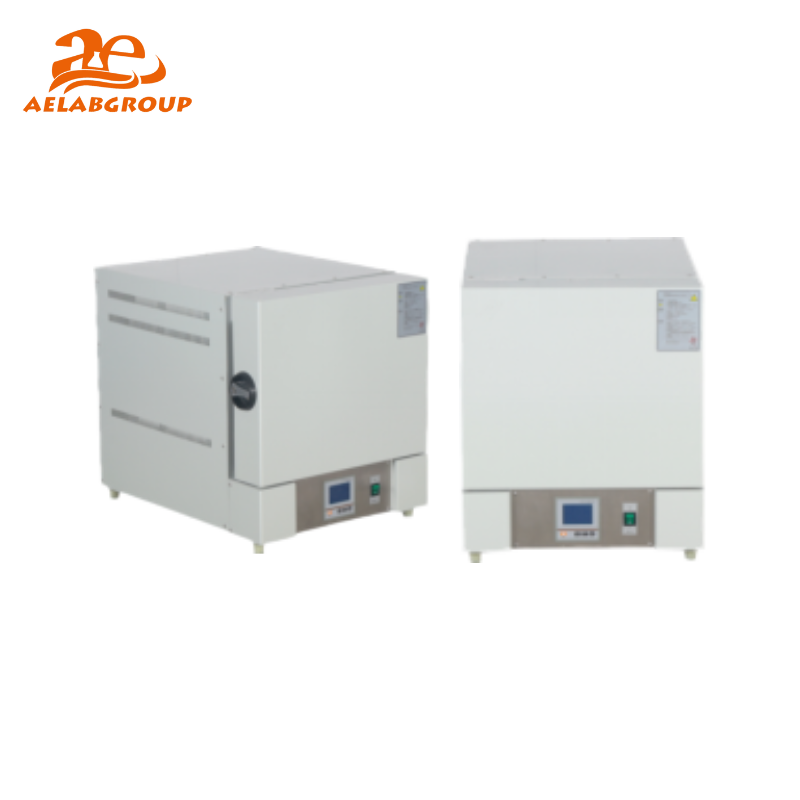

AELAB Box Resistance Furnace 1.5-10T Series

The AELAB Box Resistance Furnace 1.5-10T Series is a versatile muffle furnace ideal for high-temperature tasks, including metallurgical fusion experiments and heat treatment processes like annealing and quenching. Designed for user convenience and efficiency, it features a large LCD screen for clear data visualization and a user-friendly PID microprocessor temperature controller with timing capabilities. Its imported ultra-high-temperature alloy heating elements ensure long service life, high efficiency, and energy savings, while enabling rapid temperature rise—reaching 1200°C from room temperature in under 25 minutes. Crafted with advanced ceramic fiber insulation, the furnace reduces thermal pollution and maintains a safe external surface temperature (around 50°C at 1200°C internal). The TP model adds an intelligent programmable controller for multi-step temperature and time settings, with “T” signifying ceramic fiber construction and “P” indicating programmable functionality, making it suitable for diverse laboratory and industrial needs.

Modles : 1.5-10T/TP~2.5-10T/TP~4-10T/TP~8-10T/TP~16-10T/TP~1.5-12T/TP~2.5-12T/TP~4-12T/TP~8-12T/TP~16-12T/TP

Quantity:

Send Email

The AELAB Box Resistance Furnace 1.5-10T Series, a specialized muffle furnace, stands as an indispensable piece of equipment tailored for high-temperature applications across diverse professional settings. It is widely utilized in metallurgical laboratories for critical fusion experiments and in heat treatment departments for essential processes such as annealing and quenching, delivering reliable performance that meets the rigorous demands of these fields. This furnace integrates a suite of advanced features designed to enhance usability, efficiency, and safety: a large LCD screen provides clear, easy-to-read data display, eliminating the hassle of ambiguous parameter monitoring; a PID microprocessor temperature controller, equipped with a convenient timing function, ensures intuitive operation even for less experienced users. Powered by imported ultra-high-temperature alloy heating elements, the furnace boasts an extended service life while achieving high heating efficiency and significant energy savings—addressing both operational cost and durability concerns. A standout advantage is its rapid temperature rise: it can reach 1200°C from room temperature in less than 25 minutes, drastically reducing waiting time and boosting workflow productivity. Constructed with new-type ceramic fiber insulation material, the furnace minimizes thermal pollution, and its exceptional heat insulation performance ensures that even when the internal temperature hits 1200°C, the external surface remains at a safe 50°C, preventing accidental burns and enhancing workplace safety. For users requiring precise multi-stage thermal processes, the TP model is equipped with an intelligent programmable temperature controller that supports multi-step temperature and time settings, offering unparalleled flexibility. It’s important to note that the “T” in the model denotes a ceramic fiber furnace, while “P” indicates an intelligent program resistance furnace, allowing users to select the exact configuration to match their needs.

Features:

Big LCD screen shows data and is easy to view.
PID microprocessor temperature controller with timing function is easy to operate.
Imported ultra-temperature alloy heating element have long life, high efficient and energy saving.
Short temperature rising time, from room temperature to 1200^OC takes less than 25 minutes.
Little thermal pollution, using new type ceramic fiber insulation material.
When the temperature reaches at 1200^OC, the furnace surface is not too hot about 50^OC.
Intelligent programmable temperature controller can set multi-step temperature and time. (Model‘TP’)

Specifications :

Model	1.5-10T/TP	2.5-10T/TP	4-10T/TP	8-10T/TP	16-10T/TP
Power Consumption	1.5KW	2.5KW	4KW	8KW	16KW
Temperature rise time	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<40min
Type of heating element	resistance wire	resistance wire	resistance wire	resistance wire	resistance wire
Interior Dimension (WDH mm)	120×200×80	200×300×120	200×300×200	300×400×300	400×500×400
Volume	1.9L	7.2L	12L	36L	80L
External Dimension (WDH mm)	440×565×555	515×665×600	535×665×700	705×825×910	800×1025×1005
Model	1.5-12T/TP	2.5-12T/TP	4-12T/TP	8-12T/TP	16-12T/TP
Power Consumption	1.5KW	2.5KW	4KW	8KW	16KW
Temperature rise time	RT+10~1200<30min	RT+10~1200<30min	RT+10~1200<30min	RT+10~1200<30min	RT+10~1200<40min
Type of heating element	resistance wire	resistance wire	resistance wire	resistance wire	resistance wire
Interior Dimension (WDH mm)	120×200×80	200×300×120	200×300×200	300×400×300	400×500×400
Volume	1.9L	7.2L	12L	36L	80L
External Dimension (WDH mm)	440×565×555	515×665×600	535×665×700	705×825×910	800×1025×1005

Model	1.5-10T/TP	2.5-10T/TP	4-10T/TP	8-10T/TP	16-10T/TP
Power Consumption	1.5KW	2.5KW	4KW	8KW	16KW
Temperature rise time	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<30min	RT+10~1000<40min
Type of heating element	resistance wire	resistance wire	resistance wire	resistance wire	resistance wire
Interior Dimension (WDH mm)	120×200×80	200×300×120	200×300×200	300×400×300	400×500×400
Volume	1.9L	7.2L	12L	36L	80L
External Dimension (WDH mm)	440×565×555	515×665×600	535×665×700	705×825×910	800×1025×1005
Model	1.5-12T/TP	2.5-12T/TP	4-12T/TP	8-12T/TP	16-12T/TP
Power Consumption	1.5KW	2.5KW	4KW	8KW	16KW
Temperature rise time	RT+10~1200<30min	RT+10~1200<30min	RT+10~1200<30min	RT+10~1200<30min	RT+10~1200<40min
Type of heating element	resistance wire	resistance wire	resistance wire	resistance wire	resistance wire
Interior Dimension (WDH mm)	120×200×80	200×300×120	200×300×200	300×400×300	400×500×400
Volume	1.9L	7.2L	12L	36L	80L
External Dimension (WDH mm)	440×565×555	515×665×600	535×665×700	705×825×910	800×1025×1005
