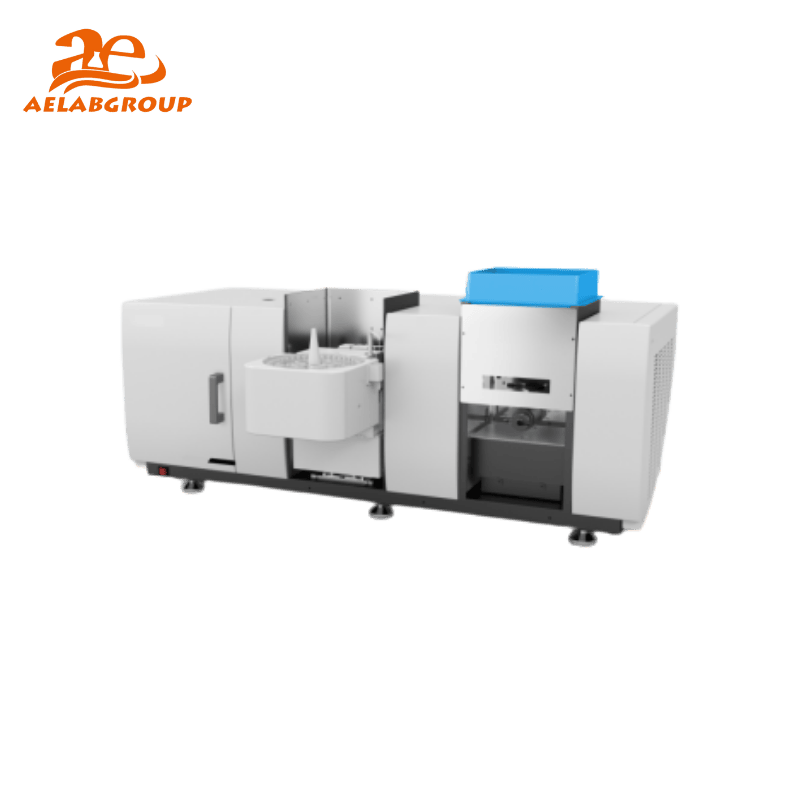

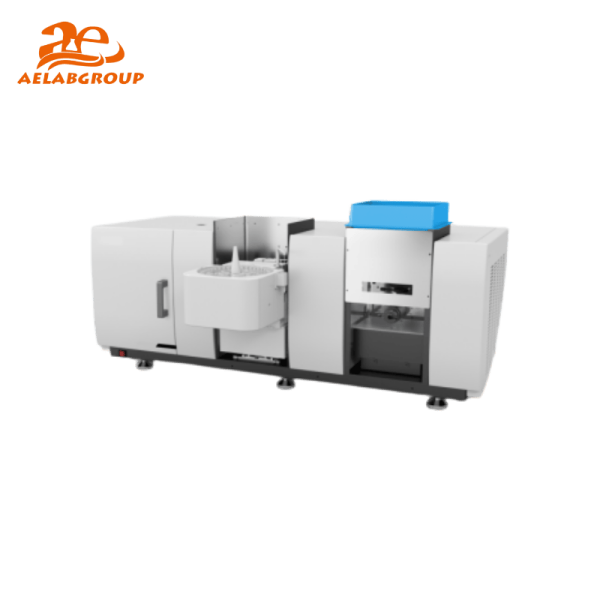

AELAB T8001S Flame & Graphite Furnace Integrated Atomic Absorption Spectrometer – Elemental Analysis System

Instrument Description

• The AELAB T8001S Flame Graphite Furnace Integrated Atomic Absorption Spectrometer is used to determine the content of major, trace, and semi-metallic elements in various substances.
• The machine adopts a PC and Chinese interface operation software, making the instrument operation simple and intuitive.
• By applying advanced electronic circuit systems and USB3.0 communication control, the instrument achieves automatic adjustment of wavelength scanning, peak finding and positioning, spectral pass band width, rotating element lamp holder, atomizer height and position, gas flow rate, lamp current, and negative high voltage of photomultiplier tubes.
• The instrument stores reference conditions for analysis of all measured elements in various analysis methods. Users can modify operating conditions as needed, and save operating conditions, working curves, and test results to disk for recall and processing.

Flame System

• Pure Titanium atomization chamber: effectively prevents acid gas corrosion and has a longer service life.
• Acetylene flow control with Mass Flow Controller: continuously adjustable with dynamic monitoring for easy, safe, and reliable operation.
• Efficient glass atomizer: a dedicated high-efficiency glass atomizer for high atomization efficiency and convenient maintenance and replacement.
• Security measures: (1) acetylene leakage monitoring; (2) acetylene pressure monitoring; (3) air pressure monitoring; (4) combustion head status monitoring; (5) flame status monitoring; (6) water seal status monitoring.

Graphite Furnace System

• Integration: graphite furnace power supply and atomic absorption host in one instrument to shorten cable length, reduce electromagnetic interference, and improve heating efficiency of the graphite tube.
• High temperature control accuracy & fast heating: high-power transformers, micro-resistance cables, and light-controlled heating, combined with software and hardware temperature correction; high-temperature section control accuracy up to ±1%.
• Safety measures: (1) cooling water flow monitoring; (2) graphite tube temperature alarm; (3) carrier gas pressure alarm; (4) graphite furnace temperature alarm.
• Automatic carrier gas flow: internal and external gases of the graphite furnace are computer-controlled according to the software heating process.
• 150-bit rotary graphite furnace autosampler: polar coordinate turntable autosampler shared for flame and graphite furnace; high positioning accuracy, stable operation, convenient use and maintenance.

⚙️ Design & Construction — AELAB T8001S Atomic Absorption Spectrometer

The AELAB T8001S employs a Czerny–Turner monochromator for stable dispersion and a multi-slot element lamp turret with automatic rotation. A Pure Titanium atomization chamber resists acid gases; a high-efficiency glass atomizer ensures consistent aerosol formation. The integrated chassis houses the graphite furnace power supply and spectrometer to minimize EMI, while USB3.0 connectivity links the control software for GLP data handling.

🔬 Working Principle / Testing Method

The AELAB T8001S atomic absorption spectrometer measures elemental concentration by atomizing samples in either an air–acetylene flame or an electrothermal graphite furnace. Hollow cathode lamp radiation passes through the atom cloud; absorbance at element-specific wavelengths is measured with automatic wavelength scanning and peak positioning. Quantification uses calibration curves with stored reference conditions, supporting routine photometry and trace analysis under GLP.

💡 Key Advantages

• Wide spectral coverage 190–900 nm with ±0.2 nm accuracy for multi-element analysis.
• Switchable spectral bandwidth 0.1/0.2/0.4/0.7/1.4 nm to optimize sensitivity and linearity.
• Flame mode detection limit <0.008 μg/mL and 0.003 Abs static stability for routine low-level quantitation.
• Graphite furnace heating up to 3000 °C at 3000 °C/s for high-sensitivity electrothermal AAS.
• Cd precision to ≤2% (auto) / ≤5% (manual); characteristic mass ≤0.5 pg for trace performance.
• Built-in safety: multi-channel pressure, leakage, flame, water-seal, and temperature monitoring for safe operation.
• USB3.0 software with automatic wavelength/peak control and method storage speeds workflows.

🔗 Connectivity & Integration

The AELAB T8001S connects via USB3.0 for instrument control, data acquisition, method storage, and GLP exports. The system records operating conditions, working curves, and test results for recall, audit, and reporting within laboratory LIMS workflows.

🧠 Model Insight — T8001S Variant Overview

🧪 Testing Applications

The AELAB T8001S atomic absorption spectrometer supports elemental testing in environmental waters, soil and sludge digests, food and feed, pharmaceuticals, petrochemicals, metallurgy, and academic research. Use flame AAS for mid-μg/L to mg/L levels and the graphite furnace for pg–ng sensitivity in trace metals such as Cd, Pb, Cu, Zn, and Ni.

Compliance & Quality Assurance

The AELAB T8001S is engineered for ISO/CE/GLP workflows. Automated wavelength control, method storage, and full monitoring of gases, flame, water-seal, and furnace temperature support audit trails. Calibration is traceable via stored working curves and reference conditions for reproducible analysis.
