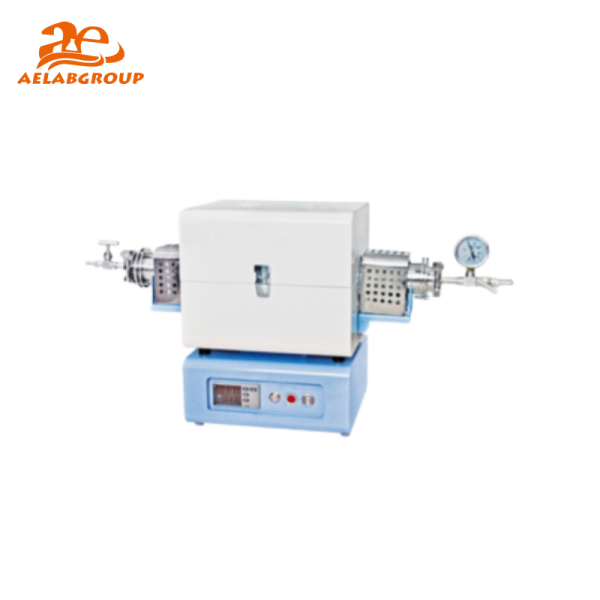

AELAB Vacuum Atmosphere Furnace AE-ZFLM-1225 Series

The Vacuum/Atmosphere Furnace AE-ZFLM-1225 Series is a high-performance heating equipment engineered to precisely control and adjust the internal atmosphere or vacuum environment, enabling materials to undergo sintering under specific conditions tailored to their processing requirements. This versatile furnace supports a wide range of gas configurations, including inert gases (nitrogen N₂, argon Ar₂) for oxidation prevention, reducing gases (hydrogen H₂, carbon monoxide CO) for reduction processes, and nitrogen-hydrogen mixtures—with specialized gases also usable as catalytic aids for unique material needs. Designed to meet the demands of industrial and mining enterprises, scientific research institutions, and universities, the AE-ZFLM-1225 Series excels in chemical analysis and physical property determination across diverse atmospheric settings. Its robust construction and precise environmental control make it an indispensable tool in the research and small-batch production of advanced materials, including powder metallurgy components, ceramic metallization products, phosphors, battery materials, electronic ceramics, chemical raw materials, and nano materials. Whether for laboratory-scale experiments or specialized manufacturing, this furnace delivers consistent, reliable performance to support cutting-edge material science and industrial innovation.

Features：

• Dual temperature zone control mode, two sets of different temperatures can be set at the same time to achieve the temperature conversion of the material in the tube.
• The air way connection method adopts the quick connection flange structure, loading and unloading is quick andconvenient, only a clamp can be completed.
• the furnace is divided into two parts, the upper part of the furnace can be turned back 100*, easy to take and put and observe materials.
• The furnace chamber is made of multi-product momi fiber vacuum adsorption, and the temperature field can savemore than 50% energy uniformly.
• Air diversion and heat insulation technology ensures the service life and constant temperature effect of each component inthe box.
• Start the electric furnace, the exhaust fan at the same time white operation, after the end of the test, the exhaust machinewill continue to run, until the furnace temperature is low d 60°C, the exhaust fan will stop, effectively protect the furnace
• The furnace door opens with automatic power off, over-temperature protection function and leakage protection functionto ensure the safety of use.
• The circuit adopts continuous heating output mode, double circuit power supply, and strong and weak power separatewiring to improve the stability of the system.
• The operation button is made of low pressure metal button, with its own status indicator, which makes the operation safeand intuitive.
• The air circuit assembly is made of food-grade 316 stainless steel, with good corrosion resistance, atmosphericcorrosion resistance and high temperature resistance and no magnetism.
