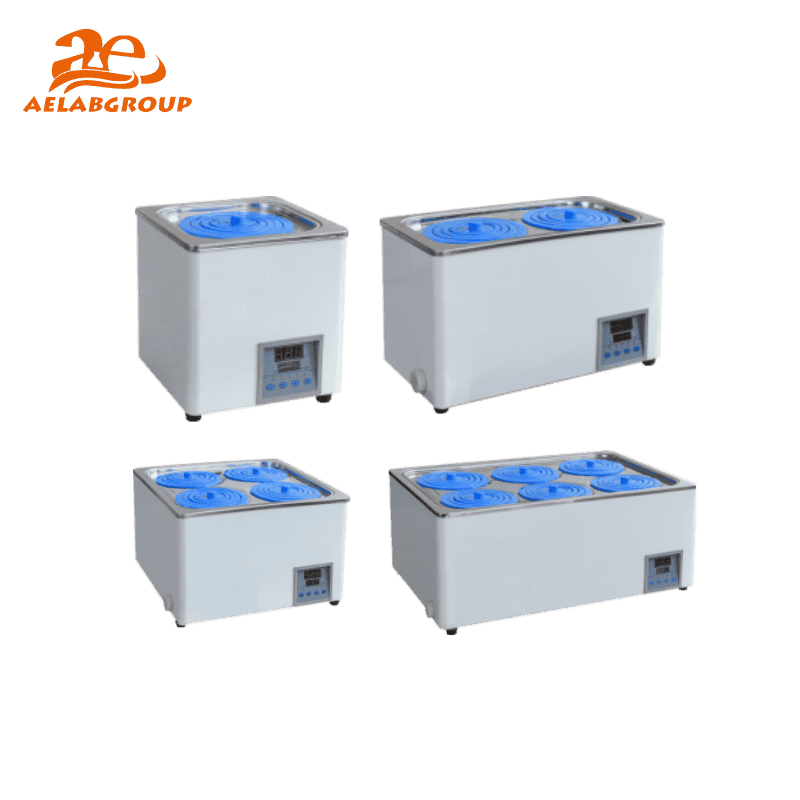

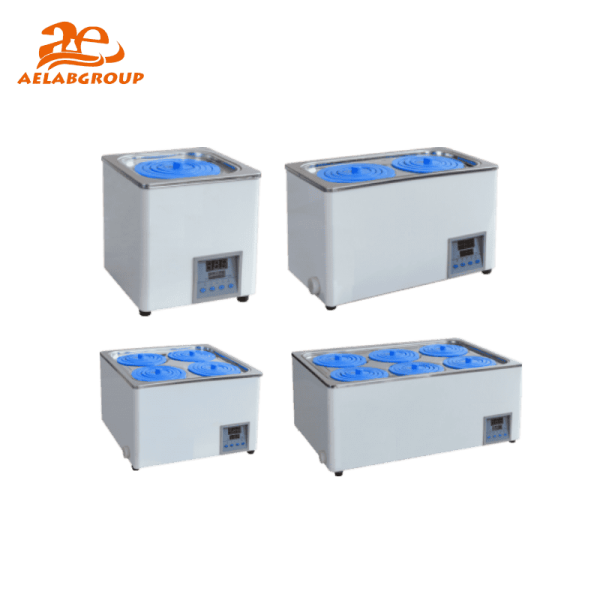

AELAB Water Bath HWS Series

The AELAB HWS Series Water Bath is a durable, stainless-steel laboratory heating unit with PID temperature control, LCD display, and over-temperature alarm. It features five interchangeable covers of different sizes, making it suitable for a wide range of scientific and industrial applications.

Modles : HWS-11~HWS-12~HWS-24~HWS-26~HWS-28
whatsapp Whatsapp

The AELAB Water Bath HWS Series is a reliable and versatile heating instrument designed for precise temperature control in laboratories and industrial applications. Widely used in enterprises, hospitals, universities, research institutes, and government laboratories, it provides stable performance for a variety of experimental and testing needs.

Equipped with an easy-to-read LCD display, the HWS Series allows clear monitoring and simple operation. Its PID temperature control system ensures excellent accuracy and consistency, while the built-in over-temperature alarm adds an extra layer of safety and reliability. The inner chamber is constructed from durable 304 stainless steel, offering long service life and resistance to corrosion.

For added flexibility, the water bath includes five interchangeable covers with diameters of 30 mm, 50 mm, 70 mm, 95 mm, and 115 mm, accommodating a wide range of container sizes. Combining robust construction with intelligent design, the AELAB HWS Series is an ideal choice for laboratories that require precise, safe, and dependable heating solutions.



Features:

  • LCD screen shows data easy to understood and operate.
  • PID temperature control accuracy.
  • Over-temperature alarm, safe and reliable.
  • The chamber is made of stainless-steel (304).
  • Water bath has five covers which diameter size is 30mm, 50mm, 70mm, 95mm and 115mm.

Specifications :

Model HWS-11 HWS-12 HWS-24 HWS-26 HWS-28
Hole One Two Four Six Eight
Power Requirement AC220V 50HZ
Temperature Range RT+5~100℃
Temperature Stability ±0.5℃
Display Resolution 0.1℃
Timing Range 1~9999min
Power Consumption 400W 500W 1000W 1500W 2000W
Interior Dimension (W×D×H mm) 155×155×110 305×155×110 305×305×110 455×305×110 600×300×110
External Dimension (W×D×H mm) 195×195×220 340×195×220 345×345×220 495×345×220 780×380×180
Volume 2.5L 4.9L 9.9L 14.8L 19.8L
Model HWS-11 HWS-12 HWS-24 HWS-26 HWS-28
Hole One Two Four Six Eight
Power Requirement AC220V 50HZ
Temperature Range RT+5~100℃
Temperature Stability ±0.5℃
Display Resolution 0.1℃
Timing Range 1~9999min
Power Consumption 400W 500W 1000W 1500W 2000W
Interior Dimension (W×D×H mm) 155×155×110 305×155×110 305×305×110 455×305×110 600×300×110
External Dimension (W×D×H mm) 195×195×220 340×195×220 345×345×220 495×345×220 780×380×180
Volume 2.5L 4.9L 9.9L 14.8L 19.8L
