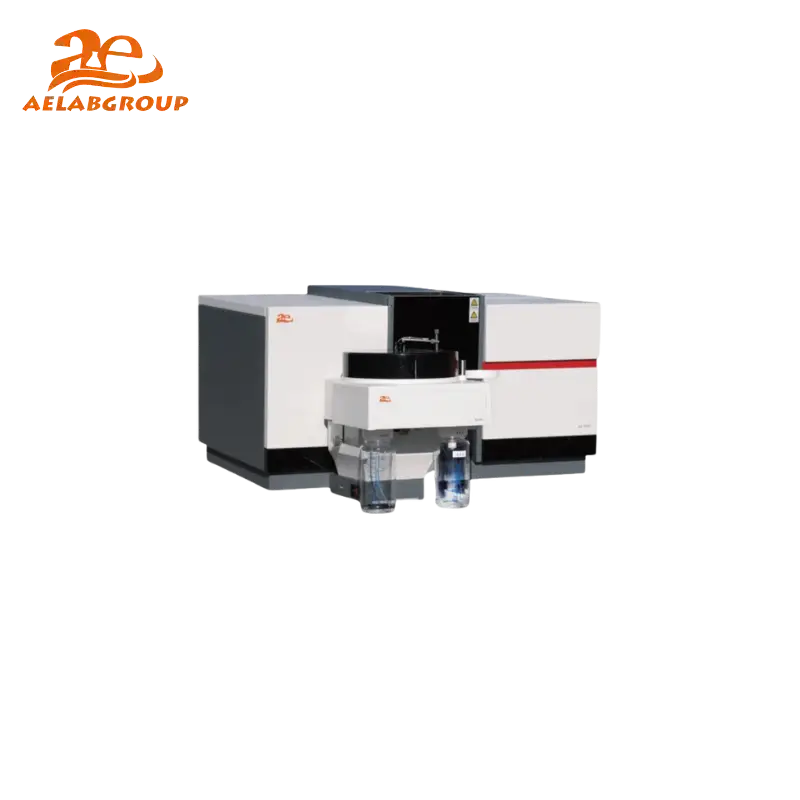

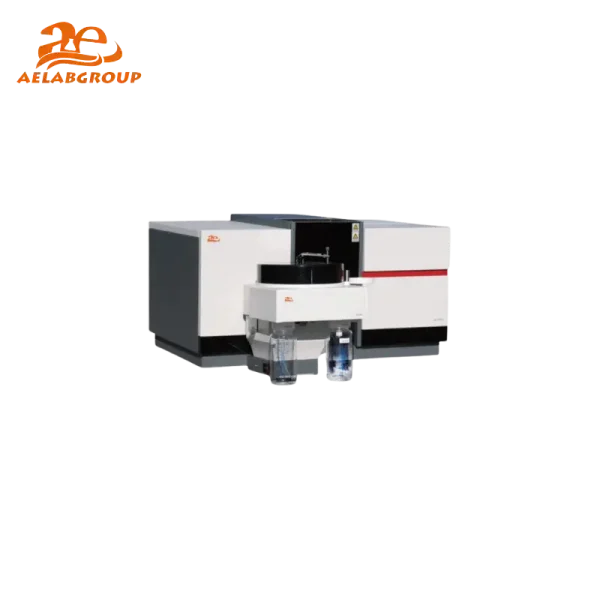

The AELAB AA-7050 Series Atomic Absorption Spectrophotometer combines precision optical performance with advanced automation for elemental analysis across scientific, environmental, and industrial laboratories. Designed to measure more than 70 elements at both trace and macro concentrations, it provides reliable performance for metallurgy, petrochemical, and environmental applications.
The AA-7050 Series features a compact and stable optical bench with C-T grating mono-chromator and 1800 lines/mm diffraction grating for enhanced resolution. The instrument’s unique suspension design isolates the optical system from vibration and temperature variation. The integrated flame and graphite furnace atomizer is housed within a single enclosure, with automatic deuterium lamp background correction and high-stability power regulation.
The system operates on the principle of atomic absorption spectrometry. It quantifies elemental concentrations by measuring absorbance at element-specific wavelengths between 190 – 900 nm. Automated flame and graphite switching allows continuous analysis without optical realignment. A deuterium lamp compensates for molecular background absorption, while multi-step graphite temperature control achieves atomization up to 3000 °C for trace-level detection.
The AA-7050 Series supports full PC operation via dedicated AELAB software, with USB data export and GLP-compliant reporting. Calibration curves, spectra, and analysis logs can be automatically saved and printed. Optional integration modules include the HG-01 Hydride Generator, AS-600 Auto-Sampler, and EW-320AC Air Compressor.
| Model | Explanation |
|---|---|
| AA-7050 | Flame atomizer with integrated graphite furnace |
| AA-7050F | Flame atomizer only |
| AA-7050G | Graphite furnace atomizer |
The AELAB AA-7050 Series is used for trace metal determination in environmental water, soil, petrochemical, and food samples. It also supports research in metallurgy, agricultural nutrient studies, pharmaceutical quality control, and toxicological analysis of heavy metals such as Pb, As, Cd, Hg, Sb, and Se.
Manufactured under ISO 9001 quality management and CE safety standards, the AELAB AA-7050 ensures full traceability of calibration and operational performance. All instruments are factory-calibrated and validated under GLP laboratory protocols.
Specifications :
| Optical System | |||
|---|---|---|---|
| Wavelength Range | 190–900 nm | Spectral Bandwidth | Automatic switching between 5 levels: 0.1, 0.2, 0.4, 1.0, 2.0 nm |
| Mono-Chromator | C-T Grating Mono-Chromator | Wavelength Accuracy | ±0.1 nm |
| Wavelength Repeatability | ≤0.05 nm | Grating | 1800 lines/mm |
| Blaze Wavelength | 250 nm | Baseline Stability | ≤0.003A/30 min (Static), ≤0.002A/30 min (Dynamic) |
| Resolution | Better than 0.1 nm | ||
| Flame Method | |||
| Benchmark Concentration of Cu | ≤0.02 μg | Detection Limit | ≤0.003 μg/ml |
| Precision RSD | ≤0.6% | Burner | Interchangeable full titanium burner of 50 mm and 100 mm |
| Position Adjustment | Adjustable height and angle; flame to hydride switch in less than 1 minute | ||
| Graphite Furnace Method | |||
| Benchmark Concentration of Cd | 0.3×10⁻⁹ g | Detection Limit | 0.2×10⁻⁹ g |
| Temperature Range | Room temperature to 3000 °C | Precision RSD | ≤1.8% |
| Temperature Control Program | Max 20 step temperature program, 3 modes: step, slope, flat | Optical Control Temperature Rise Rate | ≥3000 °C/s |
| Max Power Temperature Rise Rate | ≥2000 °C/s | Heating Modes | Max power heating and optical control rapid heating |
| Accuracy | ≤1% | Reproducibility | ≤0.5% |
| Data Processing & Power Supply | |||
| Measurement Methods | Flame absorption, flame emission, graphite furnace, and hydride method | ||
| Analysis Method | Linear fitting, nonlinear fitting, standard addition method | ||
| Output | Calibration curve, spectrum, analysis parameters, auto data storage & print | ||
| Dimensions | 880 (L) × 540 (W) × 450 (H) mm | Weight | 125 kg |
| Main Unit Power | 200 W | Graphite Furnace Power | 4 kW |
| Power Supply | ~220 V 50 Hz single phase | ||
| Optical System | |||
|---|---|---|---|
| Wavelength Range | 190–900 nm | Spectral Bandwidth | Automatic switching between 5 levels: 0.1, 0.2, 0.4, 1.0, 2.0 nm |
| Mono-Chromator | C-T Grating Mono-Chromator | Wavelength Accuracy | ±0.1 nm |
| Wavelength Repeatability | ≤0.05 nm | Grating | 1800 lines/mm |
| Blaze Wavelength | 250 nm | Baseline Stability | ≤0.003A/30 min (Static), ≤0.002A/30 min (Dynamic) |
| Resolution | Better than 0.1 nm | ||
| Flame Method | |||
| Benchmark Concentration of Cu | ≤0.02 μg | Detection Limit | ≤0.003 μg/ml |
| Precision RSD | ≤0.6% | Burner | Interchangeable full titanium burner of 50 mm and 100 mm |
| Position Adjustment | Adjustable height and angle; flame to hydride switch in less than 1 minute | ||
| Graphite Furnace Method | |||
| Benchmark Concentration of Cd | 0.3×10⁻⁹ g | Detection Limit | 0.2×10⁻⁹ g |
| Temperature Range | Room temperature to 3000 °C | Precision RSD | ≤1.8% |
| Temperature Control Program | Max 20 step temperature program, 3 modes: step, slope, flat | Optical Control Temperature Rise Rate | ≥3000 °C/s |
| Max Power Temperature Rise Rate | ≥2000 °C/s | Heating Modes | Max power heating and optical control rapid heating |
| Accuracy | ≤1% | Reproducibility | ≤0.5% |
| Data Processing & Power Supply | |||
| Measurement Methods | Flame absorption, flame emission, graphite furnace, and hydride method | ||
| Analysis Method | Linear fitting, nonlinear fitting, standard addition method | ||
| Output | Calibration curve, spectrum, analysis parameters, auto data storage & print | ||
| Dimensions | 880 (L) × 540 (W) × 450 (H) mm | Weight | 125 kg |
| Main Unit Power | 200 W | Graphite Furnace Power | 4 kW |
| Power Supply | ~220 V 50 Hz single phase | ||
