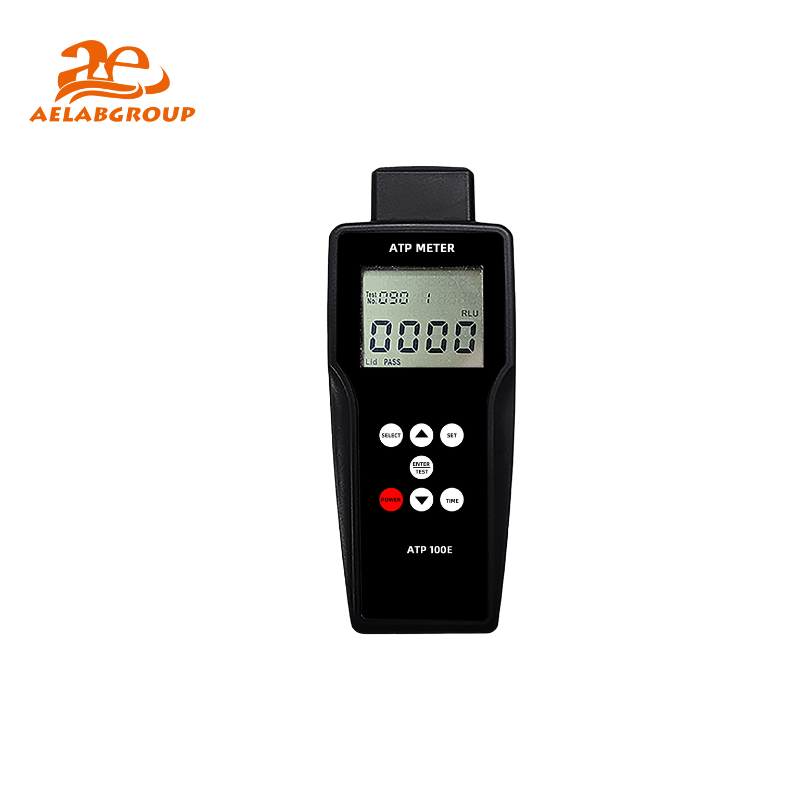

The AELAB ATP-100E ATP Fluorescence Detector ensures accurate and stable trace ATP detection with advanced sealing, bottom detection, and low background values. Its compact design and user-friendly interface make it reliable and portable for on-site hygiene monitoring and quantitative ATP analysis.
The ATP-100E adopts precision optical materials and advanced signal processing to enhance light stability and minimize environmental interference, ensuring repeatable and reliable bioluminescence readings across medical, food, and industrial environments.
The ATP-100E features an integrated portable box design for easy transportation. Its optical housing utilizes special light-shielding materials to prevent stray light interference. The system operates with a photomultiplier-based fluorescence sensor for high sensitivity, powered by 2×1.5 V AA batteries for continuous field operation. All components are precision-aligned within an ergonomic ABS enclosure with a sealed keypad and LCD display.
The AELAB ATP-100E quantifies adenosine triphosphate (ATP) through bioluminescence reaction, measuring light output in Relative Luminous Units (RLU). The detector provides real-time readings within 1–60 seconds, with sensitivity down to 1×10⁻¹⁶ mol ATP. Data can be stored internally or exported via USB to a PC for GLP data tracking and quality control documentation.
The instrument supports direct USB data transfer to PC and optional RS-232C communication with software for data management. Test reports can be archived digitally, supporting traceability and audit compliance under ISO and GLP protocols.
| Model | Specifications |
|---|---|
| ATP-100E | 1×10⁻¹⁶ mol ATP detection precision, 0–9999 RLU range, USB output, ≤1 RLU background, 265 g |
The AELAB ATP-100E is suitable for food safety, pharmaceutical production, hospital hygiene audits, water quality monitoring, paper manufacturing, environmental protection, customs inspection, and general sanitation assessment. It provides rapid ATP analysis for both surface and liquid samples, supporting quality assurance and contamination control workflows.
The ATP-100E conforms to international ISO and CE standards, with calibration traceability and AELAB GLP-compliant quality control protocols. Each unit undergoes optical and electronic performance verification before shipment to ensure measurement reliability and stability.

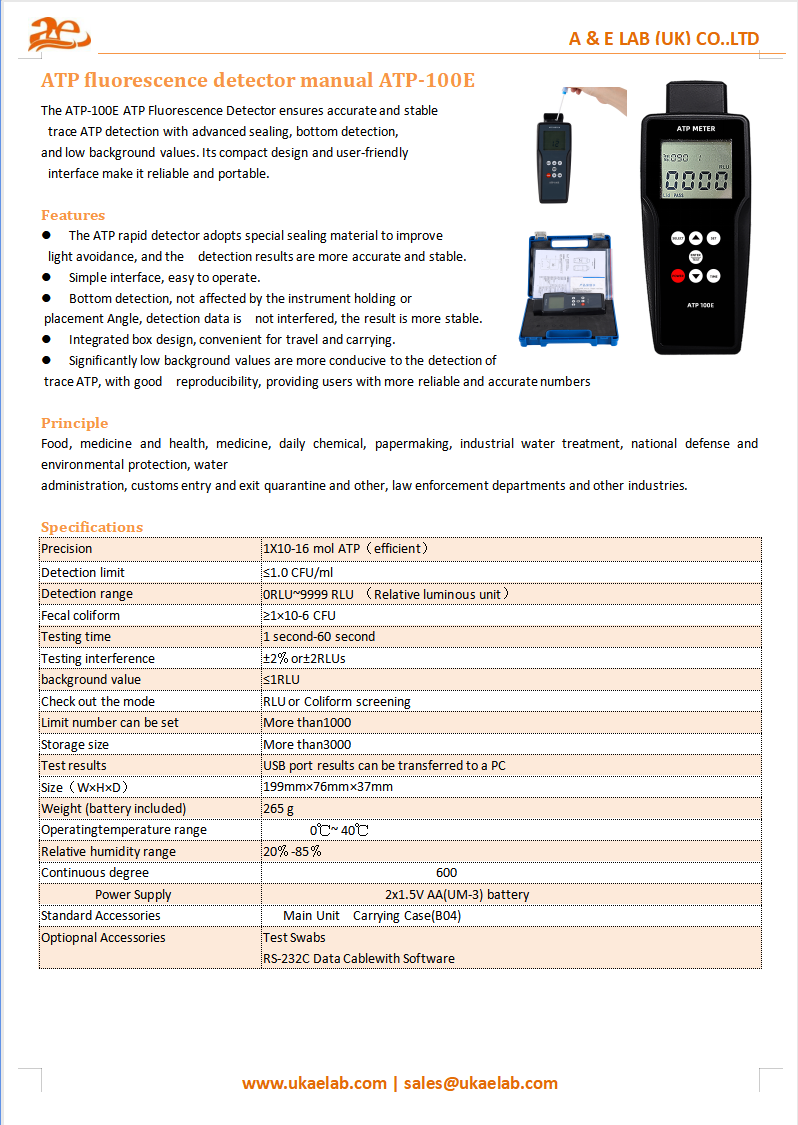

Specifications :
| Precision | 1×10⁻¹⁶ mol ATP (efficient) |
| Detection limit | ≤1.0 CFU/ml |
| Detection range | 0 RLU~9999 RLU (Relative luminous unit) |
| Fecal coliform | ≥1×10⁻⁶ CFU |
| Testing time | 1 second–60 second |
| Testing interference | ±2% or ±2 RLUs |
| Background value | ≤1 RLU |
| Check out the mode | RLU or Coliform screening |
| Limit number can be set | More than 1000 |
| Storage size | More than 3000 |
| Test results | USB port results can be transferred to a PC |
| Size (W×H×D) | 199 mm × 76 mm × 37 mm |
| Weight (battery included) | 265 g |
| Operating temperature range | 0 °C ~ 40 °C |
| Relative humidity range | 20%–85% |
| Continuous degree | 600 |
| Power Supply | 2×1.5 V AA (UM-3) battery |
| Standard Accessories | Main Unit, Carrying Case (B04) |
| Optional Accessories | Test Swabs, RS-232C Data Cable with Software |
| Precision | 1×10⁻¹⁶ mol ATP (efficient) |
| Detection limit | ≤1.0 CFU/ml |
| Detection range | 0 RLU~9999 RLU (Relative luminous unit) |
| Fecal coliform | ≥1×10⁻⁶ CFU |
| Testing time | 1 second–60 second |
| Testing interference | ±2% or ±2 RLUs |
| Background value | ≤1 RLU |
| Check out the mode | RLU or Coliform screening |
| Limit number can be set | More than 1000 |
| Storage size | More than 3000 |
| Test results | USB port results can be transferred to a PC |
| Size (W×H×D) | 199 mm × 76 mm × 37 mm |
| Weight (battery included) | 265 g |
| Operating temperature range | 0 °C ~ 40 °C |
| Relative humidity range | 20%–85% |
| Continuous degree | 600 |
| Power Supply | 2×1.5 V AA (UM-3) battery |
| Standard Accessories | Main Unit, Carrying Case (B04) |
| Optional Accessories | Test Swabs, RS-232C Data Cable with Software |
