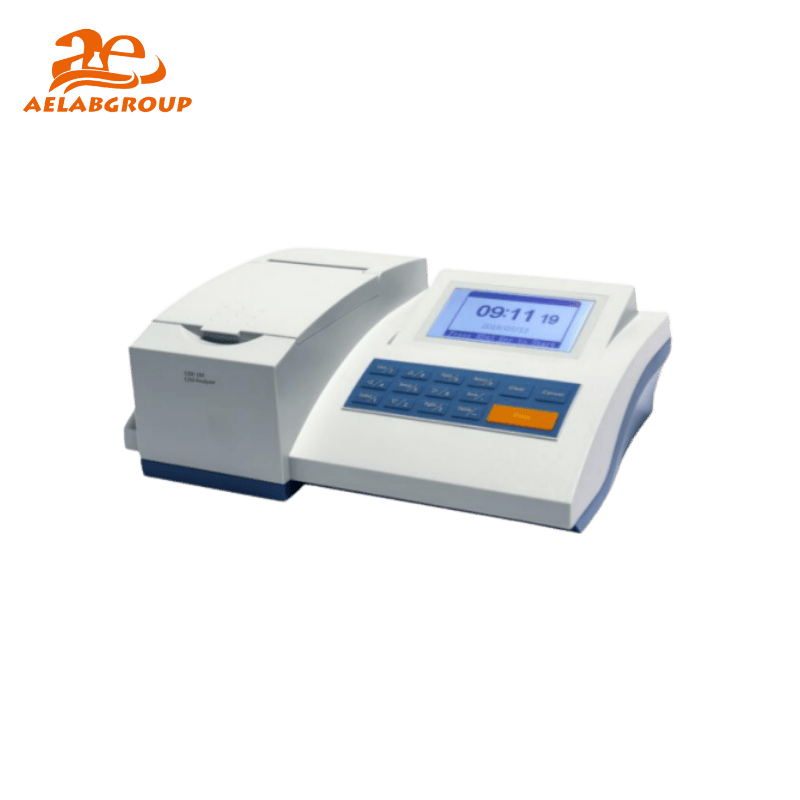

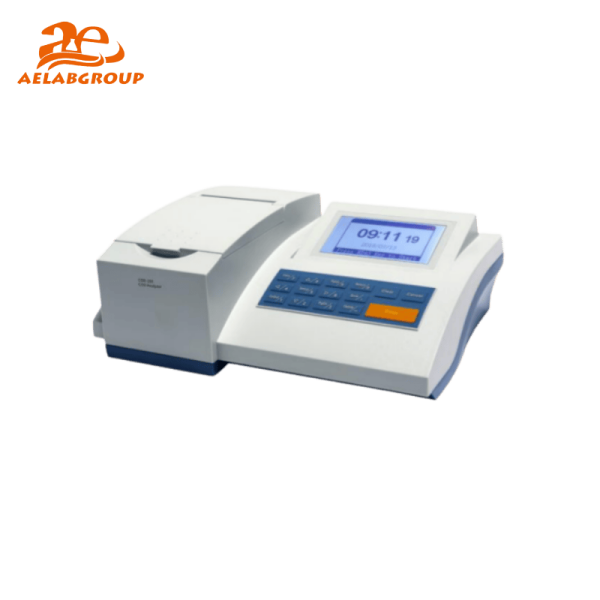

The AELAB COD-100 Benchtop COD Analyzer performs rapid and accurate determination of chemical oxygen demand in various water samples, following EPA 410.4 and ISO 15705:2002 analytical standards. It supports dual testing ranges and provides stable optical readings for environmental and industrial laboratories.
Designed for high reliability and ease of operation, the AELAB COD-100 enables precise COD quantification with a 2-point calibration system and GLP-compliant data storage for up to 200 sets of results. Data can be transferred directly to a PC via USB interface for traceable record management.
The instrument features a durable benchtop housing with an LCD display and intuitive keypad control. Two independent LED light sources support different COD testing ranges. The COD-100R reactor includes a transparent plastic safety shield, heating module for up to 21 samples, and adjustable temperature range from 100 – 160 °C.
The AELAB COD-100 quantifies the chemical oxygen demand by photometric analysis after digestion of samples in the COD-100R reactor. The system measures absorbance at preset wavelengths and automatically calculates COD concentration. Calibration and measurement are processed through dual-point correction for accuracy and repeatability.
The analyzer includes a USB data port for transfer to PC or laboratory network. Data storage supports GLP documentation and traceability. Compatible with standard Windows-based COD analysis software for reporting and calibration management.
| Model | Specifications |
|---|---|
| COD-100 | 0–150 mg/L & 0–1500 mg/L range, ±8% accuracy, AC 200–240 V, 2 kg |
| COD-100R | Heating 100–160 °C, 21 samples, 0–120 min timer, 4 kg |
The AELAB COD-100 is widely applied in environmental monitoring, wastewater treatment, industrial effluent analysis, and quality control laboratories for accurate COD quantification in water and wastewater samples.
The AELAB COD-100 Benchtop COD Analyzer complies with ISO 15705:2002, EPA 410.4, CE, and GLP laboratory requirements. Calibration traceability and robust design ensure consistent analytical performance under standard laboratory conditions.
Specifications :
| Model | COD-100 |
|---|---|
| Range | (0～150) mg/L, (0～1500) mg/L |
| Accuracy | ±8% |
| Repeatability | 3% |
| Fluctuation | 6 mg/L (20 min) |
| Power Supply | AC Adapter, 200–240 VAC input |
| Dimension (mm) & Weight (kg) | COD-100: 315×225×100, 2 COD-100R: 330×228×132, 4 |
| Model | COD-100 |
|---|---|
| Range | (0～150) mg/L, (0～1500) mg/L |
| Accuracy | ±8% |
| Repeatability | 3% |
| Fluctuation | 6 mg/L (20 min) |
| Power Supply | AC Adapter, 200–240 VAC input |
| Dimension (mm) & Weight (kg) | COD-100: 315×225×100, 2 COD-100R: 330×228×132, 4 |
