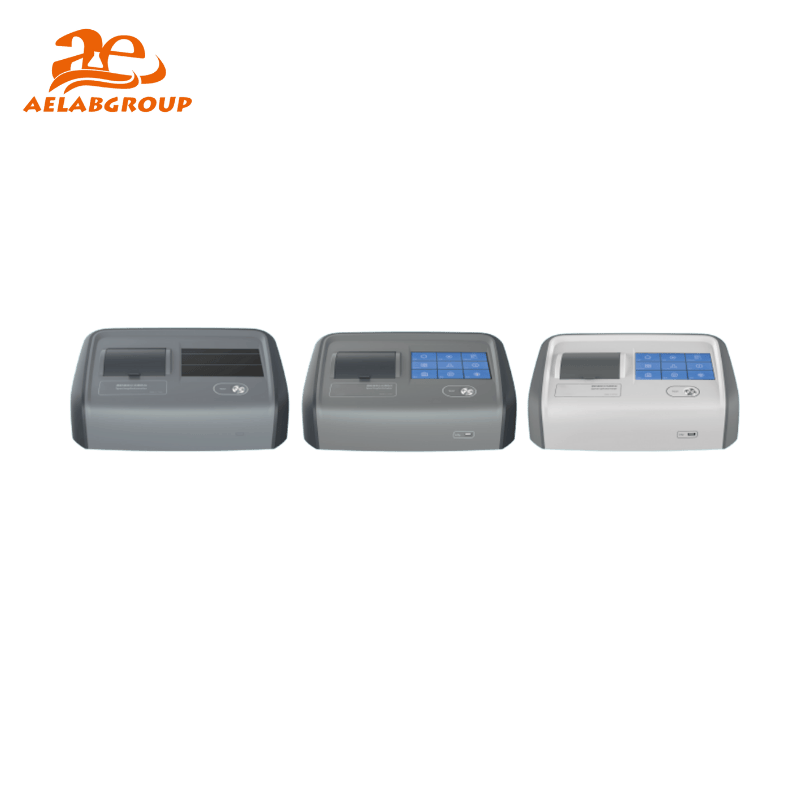

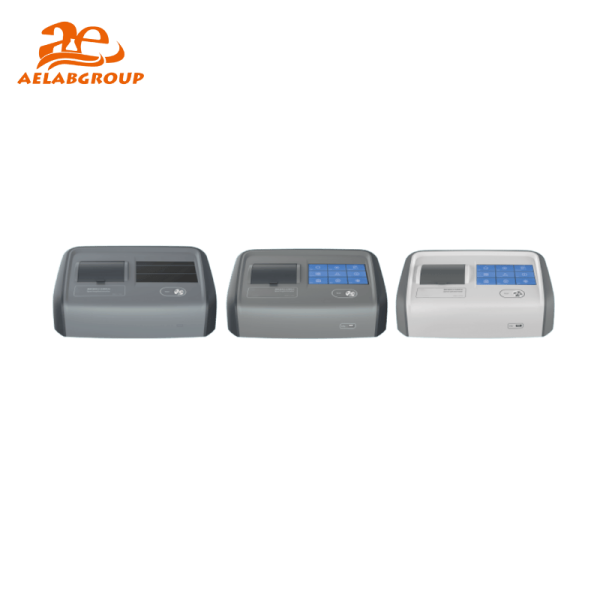

AELAB DS Series Benchtop Liquid Colorimeter – DS-810N / DS-812N / DS-816N

The AELAB DS-810N/DS-812N/DS-816N benchtop liquid colorimeter provides more than 30 color indicators, including platinum cobalt index, Gardner, Saybolt, China, the United States, and European Pharmacopoeia standards. Intelligent zero calibration ensures accurate measurement of △E*ab≤0.01.

The minimum liquid addition is reduced to 1 ml; 10 mm and 50 mm cuvets are standard, and 33 mm and 100 mm cuvets are optional. The measurement speed is fast, and a single measurement takes only 1.5 seconds. The thermostatic sample tank (up to 90 °C) design ensures sample fluidity, and the 7-inch touch screen stores more than 100,000 pieces of data.

⚙️ Design & Construction

The AELAB DS-812N integrates a Φ40 mm integrating sphere with Avian-D fully diffuse surface coating and CLEDs (Full Band Balanced Led Light Source). A dual optical sensor array sensor acquires transmission data. DS-816N supports stand-alone operation with a thermostatic sample tank for measurements up to 90 °C.

🔬 Working Principle / Testing Method

The DS Series quantifies liquid color using a d/0 optical geometry with 0° viewing angle over a 360–780 nm wavelength range at 10 nm interval and 5 nm half-band width. Results include CIE Lab/LCh/Luv, XYZ, Yxy, transmissibility, Hunter Lab, Munsell, MI, and CMYK spaces. Color difference formulas supported are ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*94, and ΔE*00. Observation light sources include A, B, C, D50/D55/D65/D75 and an extended LED/CWF/U-series set for application matching.

💡 Key Advantages

• Accurate ΔE*ab repeatability to ≤0.015 (DS-810N) and ≤0.01 (DS-816N) with transmittance SD ≤0.08%
• Rapid ≤1.5 s single measurement increases sample throughput in QC labs
• Extensive indices: Pt-Co (APHA/Hazen), Gardner, Saybolt, ASTM Color, EBC Beer Color, ICUMSA sugar color, pharmacopoeia WI/YI/Tint
• Standard 10 mm and 50 mm glass cuvettes; optional 33 mm and 100 mm for high-turbidity or low-absorbance samples
• DS-816N heating from ambient to 90 °C stabilizes viscous samples and dissolutions
• DS-812N 7-inch capacitive touch operation with storage for over 100,000 data points and audit trail as required by FDA/CFDA
• Flexible 2°/10° observer angles and wide 0–200% transmittance measuring range

🔗 Connectivity & Integration

Software support includes ColorExpert and Color QC2 for laboratory data management and quality control reporting. DS-812N provides audit trail capability (as required by FDA and CFDA) for regulated environments.

🧠 Model Insight

🧪 Testing Applications

The AELAB DS Series measures liquid color for pharmaceutical solutions (Chinese, European, and United States Pharmacopoeia), petrochemical and fuel grades (Gardner, Saybolt, ASTM Color), water and solvents (APHA/Hazen, Pt-Co), beverage quality (EBC Beer Color), and sugars (ICUMSA). It also reports WI, YI, Tint, and isochromic metrics for materials research and production QA.

Compliance & Quality Assurance

Measurements follow d/0 geometry and comply with CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c, and relevant ASTM methods (D1209, D5386, D6045, D6166, D1502). AELAB quality control supports GLP-style traceability with audit trail on DS-812N.

For rigorous liquid color control, the AELAB DS-810N, DS-812N, and DS-816N deliver fast, repeatable results across laboratory and industrial workflows.
