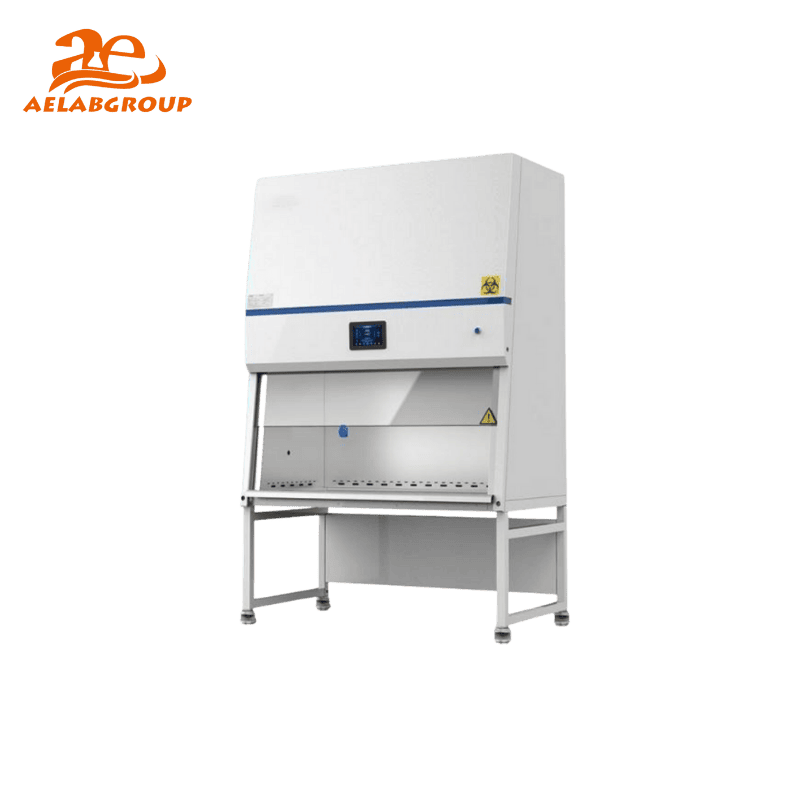

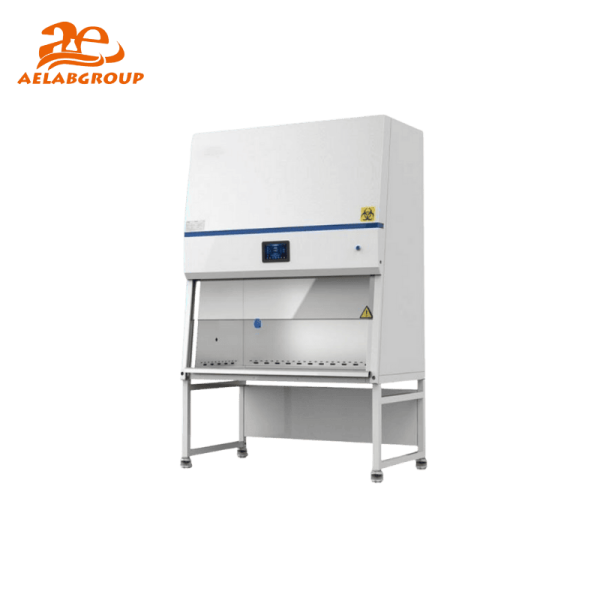

AELAB Class II A2 Biological Safety Cabinet – Pro Series

The Biological Safety Cabinet Pro Series Class II A2 is designed to deliver advanced protection, convenience, and ergonomic efficiency for laboratory professionals. Equipped with a 7-inch touch screen LCD display, the cabinet allows users to monitor all critical safety parameters in real time. The thoughtfully sized control panel enhances usability and improves workflow.

The work zone, constructed from high-quality 304 stainless steel, is completely enclosed by negative pressure to ensure containment of hazardous materials. For operator convenience, the cabinet includes a motorized front window made of anti-UV, two-layer laminated toughened glass, which can be adjusted via a foot switch to minimize turbulence caused by hand movement.

Safety and usability are further enhanced by the inclusion of dual waterproof sockets inside the work area for operating small lab equipment, and a UV lamp emitting at 253.7 nanometers, providing effective decontamination. The cabinet is mounted on Footmaster casters with brakes and leveling feet for easy movement and stable positioning. A remote control allows full access to all cabinet functions, making operation more flexible and user-friendly.

This Pro Series unit is ideal for high-standard biosafety environments, combining top-tier safety features with a modern, user-centric design.

Features:

1. The operation perspective is wide and more humanized.
2. Time reserve function.
3. ULPA filter life and UV life indicator.
4. Motorized front window.
5. With memory function in case of power-failure.
6. Audio and visual alarm (Abnormal airflow velocity; Filter replacement; Front window at unsafe height; High filter pressure alarm ).
7. Self-locking button switch to solve the trouble of losing the key.
8. 7 inch large touch screen with intelligent control system: Operators can check detailed status of the cabinet, such as Inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
9. Remote control: all functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower; LED lamp; blower and front window.
11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

✅ 🔬 How It Works?

This Class II A2 biological safety cabinet operates on a 70% air recirculation / 30% exhaust airflow system. Ambient air is drawn into the front grille and pulled through a ULPA filter, creating a clean, downward laminar airflow within the workspace. Contaminated air is then filtered again before being recirculated or exhausted. The motorized front glass window, operated via foot switch or remote, prevents turbulence and contamination, while internal negative pressure ensures complete bio-containment. Real-time airflow and safety status are monitored via the 7-inch touchscreen display.

✅ 💡 Advantages

• Complete Containment: Negative pressure work zone for maximum biosafety

• Smart Interface: 7-inch touchscreen shows airflow, filter life, humidity, temperature, and more

• Hands-Free Operation: Foot switch for adjusting the front window height

• Power Failure Memory: Saves settings in case of outage

• All-in-One Control: Remote allows complete cabinet function access

• Alarms for Safety: Audible/visual alerts for airflow deviations, unsafe window position, and filter pressure

• Mobility + Stability: Mounted on locking Footmaster casters with leveling feet

✅ 🔍 Recommended Models by Use Case

• BSC-1100IIA2-Pro: Ideal for teaching labs and compact research stations

• BSC-1300IIA2-Pro: Best fit for clinical labs, hospital testing units, and medium-throughput labs

• BSC-1800IIA2-Pro: Perfect for pharmaceutical research, biotech R&D, and large bio labs requiring wider work areas

✅ 🧪 Ideal For

• Microbiological testing

• Biosafety-level laboratories (BSL-1, BSL-2)

• Clinical diagnostic labs

• QC departments in pharma or biotech

• Food safety and environmental analysis labs

• Academic and research institutions
