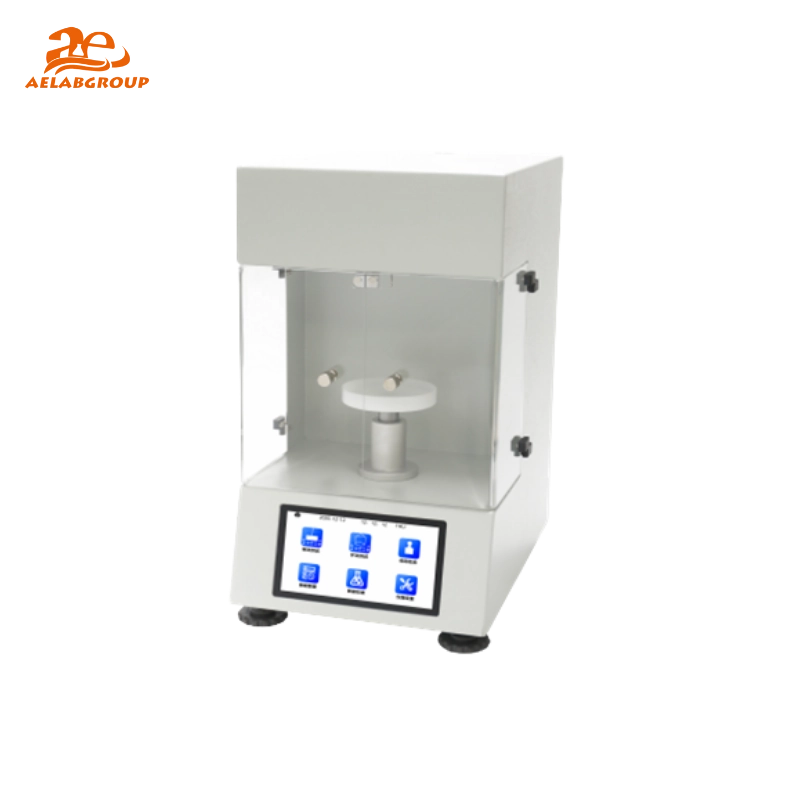

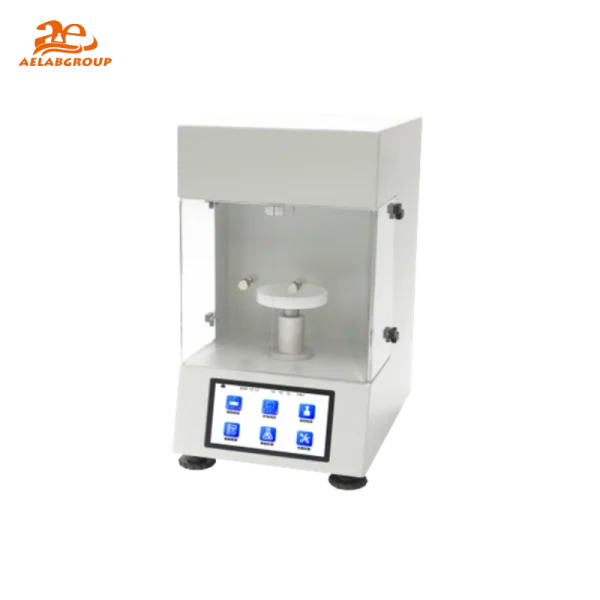

AELAB BZY100 & BZY200 Surface Tensiometer for Liquid Interface Analysis

The AELAB BZY100 and BZY200 Surface Tensiometers are designed for accurate measurement of surface tension and interfacial tension of liquids in laboratory and industrial environments. The instruments support independent operation without an external computer and provide fast, repeatable results through automated measurement control.

The BZY Series surface tensiometers are widely used in quality control testing related to surfactants, emulsifiers, wetting agents, oils, and cleaning agents. Equipped with a high-resolution touchscreen and motorized sample stage, the AELAB BZY100 and BZY200 ensure reliable performance for routine and research-based interface chemistry analysis.

⚙️ Design & Construction

The AELAB BZY100 and BZY200 Surface Tensiometers feature a rigid enclosed frame with a precision motorized sample stage. The open sample area allows convenient preparation, while the magnetic lock air shield minimizes airflow disturbance during measurement. High-precision mechanical sensors ensure stable force detection during ring and plate testing.

🔬 Working Principle / Testing Method

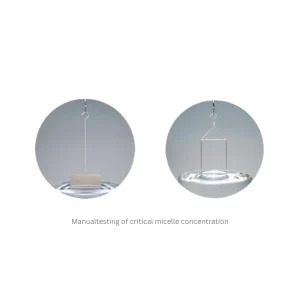

The AELAB BZY Series measures surface tension and interfacial tension using the Du Nouy ring method and Wilhelmy plate method. The instrument automatically raises and lowers the sample stage while monitoring force changes on the ring or plate. Measurement programs control motion and data acquisition to ensure repeatable and interference-free testing, including manual determination of critical micelle concentration.

💡 Key Advantages

• Automated measurement with motorized sample stage control
• Supports Du Nouy ring and Wilhelmy plate measurement methods
• High measurement repeatability for quality control testing
• Integrated 4.3-inch touchscreen interface for direct operation
• Built-in memory for multiple data sets and traceable records
• Password management for data security and integrity
• Independent operation without external computer

🔗 Connectivity & Integration

• RS232 output for external printer connection
• Built-in data storage, viewing, and printing functions
• Chinese and English interface language options
• Real-time display of measurement curves

🧠 Model Insight

🧪 Testing Applications

The AELAB BZY100 and BZY200 Surface Tensiometers are used for oil aging tests, surfactant effectiveness evaluation, food industry cleaning validation, emulsifier optimization, cooling lubricant testing, and determination of critical micelle concentration in chemical and material analysis laboratories.

Compliance & Quality Assurance

The BZY Series complies with GB/T, EU, ISO, DIN, ASTM, and OECD standards for surface and interfacial tension testing. Supported standards include ASTM D971, ASTM D1331, ASTM D1417, DIN EN 14210, DIN EN 14370, ISO 304, ISO 1409, ISO 4311, and ISO 6889, ensuring standardized, repeatable, and traceable measurement results.
