AELAB C410 Chemistry Diaphragm Pump for Rotary Evaporators

The AELAB C410 Chemistry-Design Diaphragm Pump is a high-performance vacuum pump engineered for reliable, oil-free solvent evaporation. Designed for seamless integration with AELAB RE100-Pro and RE100-S Rotary Evaporators, this pump ensures stable vacuum control, low noise, and long operational life, making it ideal for demanding laboratory environments.

The C410 chemistry diaphragm pump operates using dual PTFE-coated diaphragms to create a stable, oil-free vacuum. As the diaphragms move, they compress and expand internal chambers, drawing in vapor and expelling it efficiently. This ensures consistent vacuum levels, ideal for rotary evaporation, solvent recovery, and low-boiling-point distillation.

⚙️ Design & Construction

The AELAB C410 features a chemically resistant design with PTFE-coated diaphragms for long-term durability in solvent-rich environments. Its oil-free mechanism minimizes contamination risk and maintenance requirements. The 8 mm nozzle size supports efficient vapor throughput, while the compact frame integrates easily with rotary evaporator systems.

🔬 Working Principle / Testing Method

The pump uses reciprocating diaphragm motion to generate continuous negative pressure. Vapor is drawn through the inlet, compressed, and expelled through the exhaust path without exposure to lubricants. The constant flow characteristics across a wide mbar range support controlled evaporation, pressure stabilization, and reproducible solvent recovery.

💡 Key Advantages

• Oil-free vacuum generation eliminates contamination and reduces routine servicing
• Consistent vacuum stabilization improves evaporation efficiency and solvent collection rates
• Low-noise output (≤50 dB) supports quiet laboratory operation
• Chemical-resistant wetted parts ensure compatibility with aggressive solvents
• Continuous-operation motor enables uninterrupted rotary evaporation cycles
• Optimized flow rate curve enhances performance at both high and low vacuum levels

🔗 Connectivity & Integration

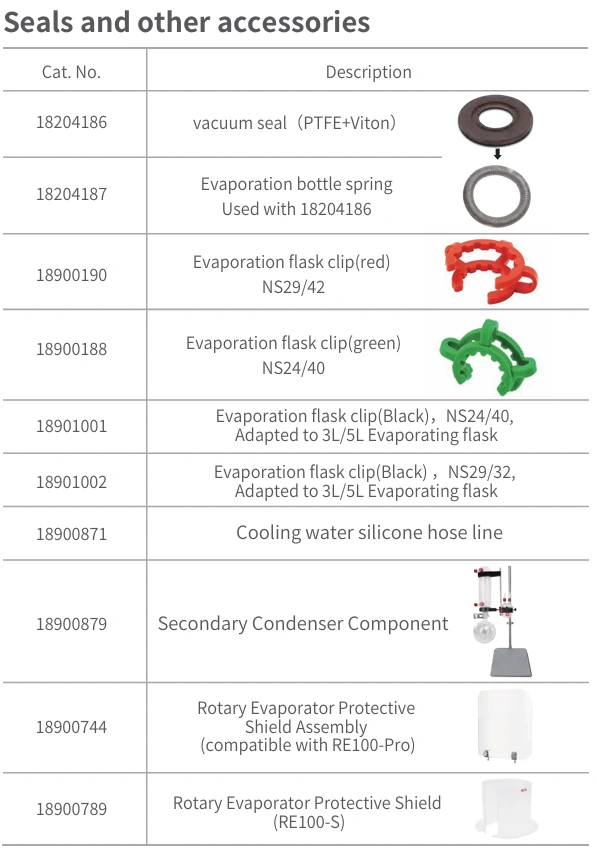

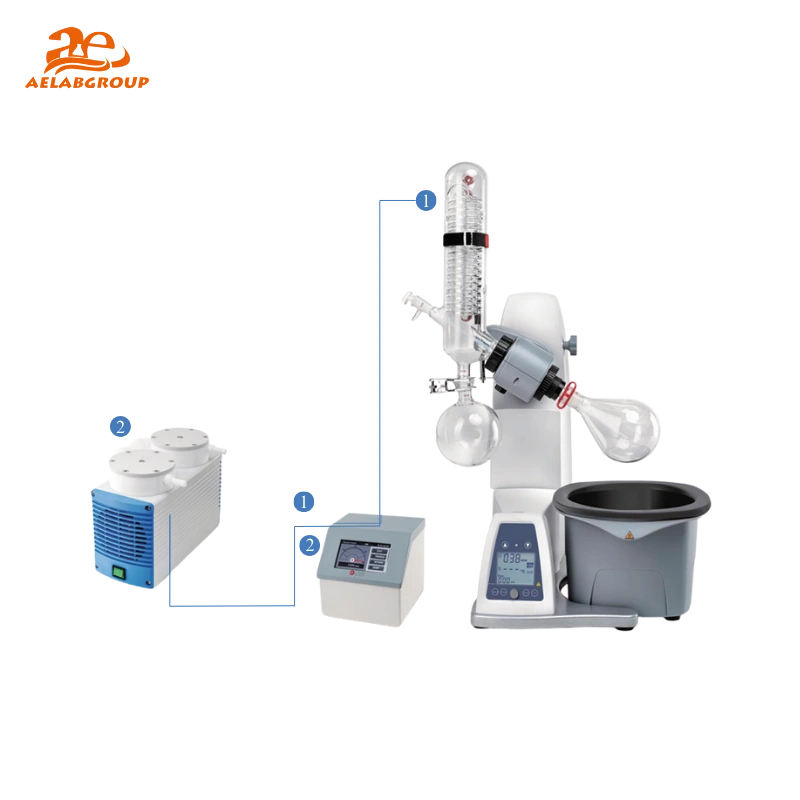

The AELAB C410 integrates directly with AELAB RE100-Series rotary evaporators via standard vacuum tubing. The system supports connection to condensers, evaporation flasks, and protective accessories listed in the AELAB catalog. No digital control ports are specified, ensuring simple plug-and-run operation.

🧠 Model Insight

🧪 Testing Applications

The AELAB C410 is suitable for rotary evaporation, solvent recovery, organic chemistry workflows, environmental extraction, sample concentration, and general-purpose distillation. Its oil-free vacuum profile supports pharmaceutical R&D, natural product extraction, QC laboratories, and academic research.

Compliance & Quality Assurance

All AELAB instruments adhere to international laboratory safety and quality standards. The C410 is manufactured under strict QC protocols, ensuring repeatability, chemical resistance, and long-term operational reliability in GLP/ISO-aligned laboratory environments.
