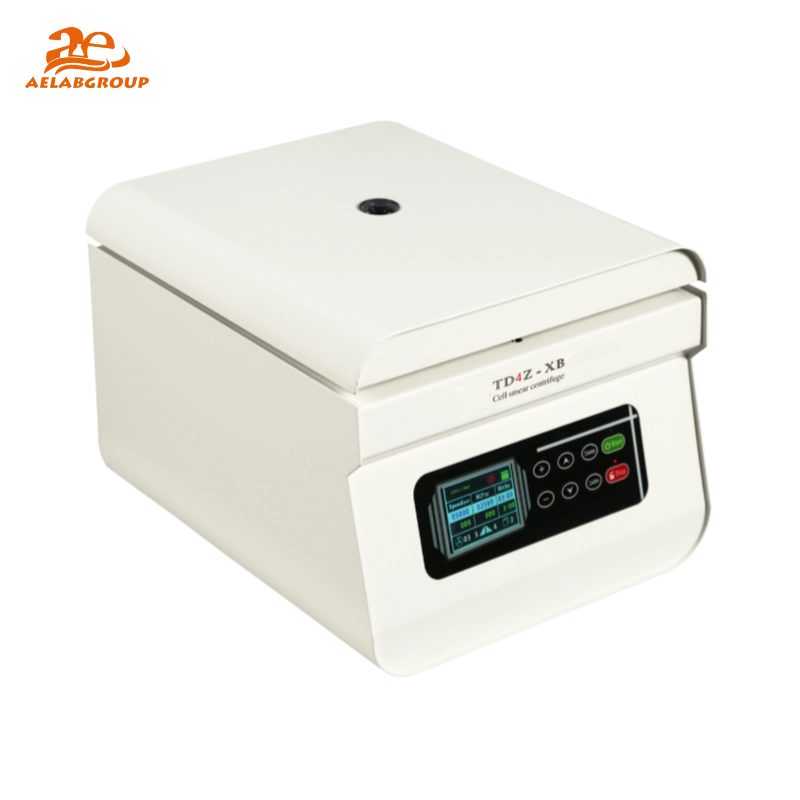

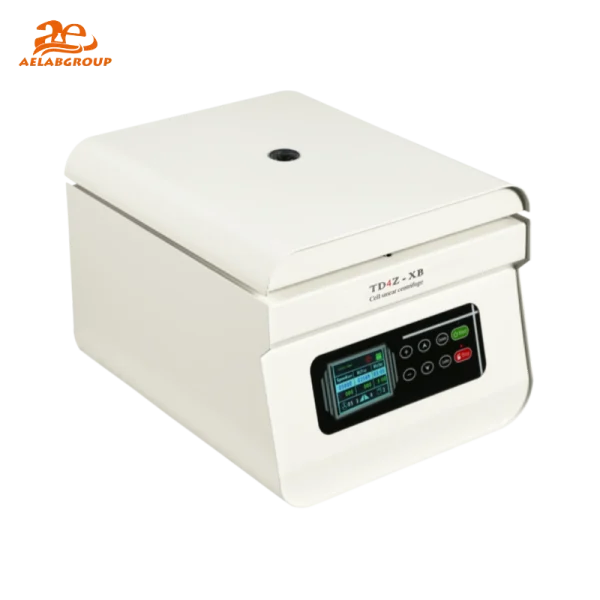

TD4Z-XB Cell Smear (Cytospin) Centrifuge for Exfoliated Cell Slide Preparation

The AELAB TD4Z-XB Cell Smear (Cytospin) Centrifuge is a dedicated instrument for liquid-based cell production and exfoliated cell examination in clinical cytology and research laboratories. The TD4Z-XB is engineered for cytology specimen preparation including secretions, cerebrospinal fluid, hydrothorax, and ascites, enabling consistent smear formation for microscopic diagnosis.

The AELAB TD4Z-XB cytospin centrifuge uses controlled centrifugal force to separate cells from suspension and deposit them onto glass slides. By regulating rotation with microprocessor control and a programmed cytology smear workflow, the TD4Z-XB supports uniform cell and bacterial distribution with reduced overlap, improving staining clarity and diagnostic reproducibility.

⚙️ Design & Construction

• The AELAB TD4Z-XB features a compact bench-top architecture with a Stainless Steel chamber engineered for cytology sample containment
• Microprocessor control stabilizes speed accuracy at ±10 rpm for repeatable cytology slide preparation
• Integrated safety interlock prevents opening of the centrifuge lid during operation for compliant laboratory workflow control
• Emergency lid lock release supports safe access in the event of power loss
• Low-noise mechanical design maintains ≤ 50 dB(A) at maximum speed to reduce laboratory acoustic load

🔬 Working Principle / Testing Method

The AELAB TD4Z-XB Cell Smear (Cytospin) Centrifuge prepares cytology smears by applying centrifugal force to a liquid-based specimen. After separation, cells are driven out of suspension and deposited directly onto the slide surface. The TD4Z-XB workflow supports uniform smear formation, and excess staining solution can be removed through centrifugation, producing even distribution and consistent dyeing results for clinical cytology interpretation.

💡 Key Advantages

• Delivers controlled cytology smear preparation up to 3000 r/min and 2300×g for reliable exfoliated cell deposition
• Supports batch processing capacity of 12 × 0.5 mL for routine diagnostic cytology throughput
• Microprocessor-controlled operation improves repeatability in cell concentration and slide uniformity
• Safety interlock system prevents lid opening during centrifuge operation, supporting laboratory risk control
• Emergency lid lock release enables safe access under power interruption conditions
• Low noise performance ≤ 50 dB(A) supports use in clinical and diagnostic environments
• Programmable timing range 0–99 min enables method standardization for cytology protocols

🔗 Connectivity & Integration

• The AELAB TD4Z-XB cytospin centrifuge is microprocessor-controlled for standardized speed and timing regulation.
• Suitable for integration into cytology sample preparation workflows where traceable timing and controlled centrifugal force are required.
• Designed for laboratory bench installation with compact footprint: 450 × 340 × 270 mm.

🧪 Testing Applications

The AELAB TD4Z-XB Cell Smear (Cytospin) Centrifuge is primarily used for exfoliated cell examination and cytology slide preparation in diagnostic and research environments. Typical testing applications include:

• Clinical cytology of cerebrospinal fluid (CSF) for infection and malignancy screening
• Hydrothorax and ascites cytology for pathological cell identification
• Cell smear preparation from secretions and liquid-based specimens for microscopy and staining workflows
• Basic laboratory cytology methods requiring uniform cell distribution and reduced slide overlap
• Sample preparation support for microbiology and cell morphology analysis where controlled deposition is required

Compliance & Quality Assurance

The AELAB TD4Z-XB cytospin centrifuge is engineered with microprocessor-controlled regulation and integrated safety interlock to support standardized laboratory operation. Speed accuracy (±10 rpm), controlled centrifugal force (2300×g), and timed operation (0–99 min) enable reproducible cytology testing performance. For regulated environments, calibration and performance verification should be performed according to internal GLP quality procedures and applicable laboratory validation protocols.

For consistent cytology slide preparation and controlled exfoliated cell testing, the AELAB TD4Z-XB Cell Smear (Cytospin) Centrifuge delivers reliable centrifugal deposition performance in compact laboratory form — supporting diagnostic accuracy and standardized cytology workflows.
