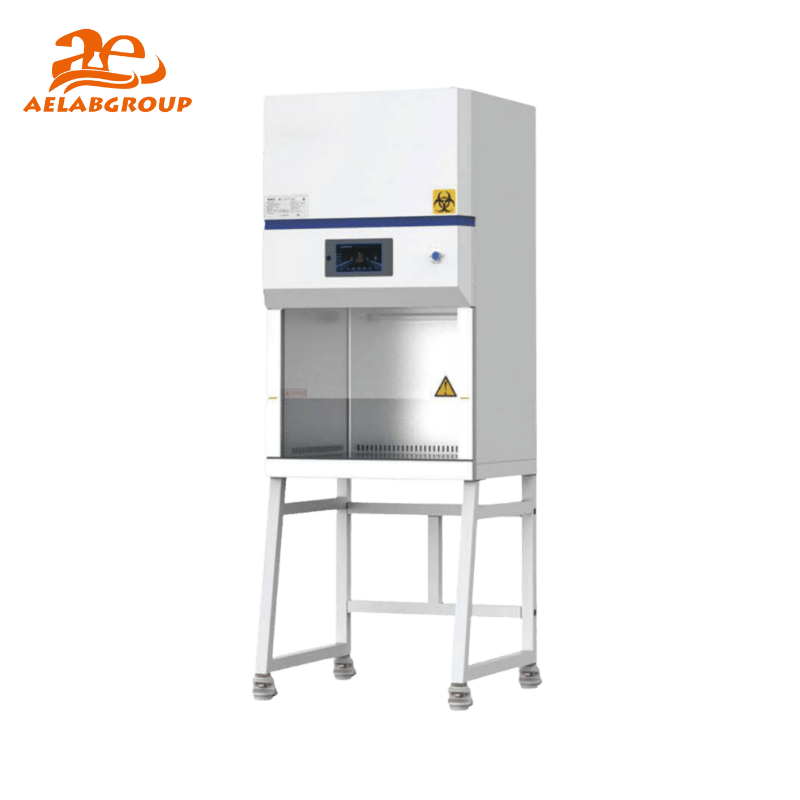

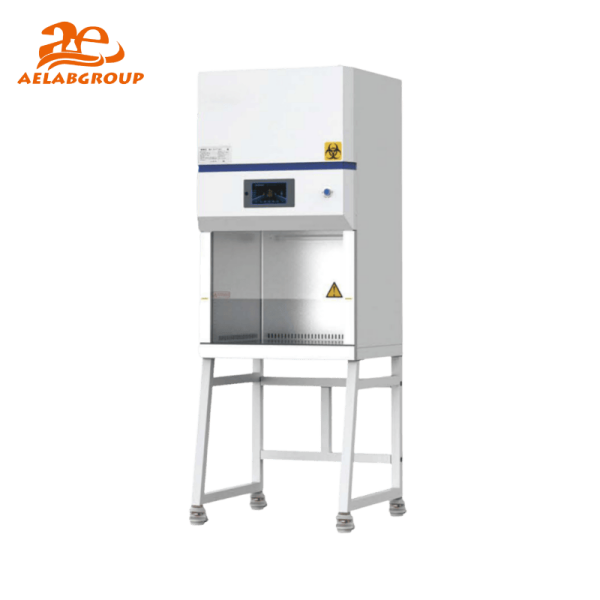

AELAB Class II A2 Biological Safety Cabinet – BSC-1100IIA2-Pro

The BSC-1100IIA2-Pro Series Class II A2 Biological Safety Cabinet provides advanced protection and ease of use for laboratory environments. It features a 7-inch touch screen for real-time monitoring, an ergonomic control panel, and a 304 stainless steel work zone surrounded by negative pressure for optimal containment.

Key safety and usability features include a UV-resistant laminated front window, foot switch for hands-free operation, remote control, and two waterproof sockets for internal device use. Footmaster casters offer easy mobility with stable positioning. The UV lamp (253.7 nm) ensures efficient decontamination, while a worktop holder and optional air vent enhance functionality. This cabinet is designed for both performance and operator comfort in high-demand lab settings.

Features:

1. Small dimension, save space.
2. Centrifugal fan, speed adjustable; H14 HEPA filter.
3. Motorized front window: The front window is motorized for convenient, one – hand operation.
4. Audio and visual alarm: abnormal airflow velocity, filter replacement, front window at unsafe height, high filter pressure alarm.
5. Self – locking button switch to solve the trouble of losing the key.
6. Removable handle design, easy to move.
7. 7 inch large touch screen with intelligent control system: operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc.
8. With memory function in case of power – failure.
9. Interlock function: UV lamp and front window; UV lamp and blower, LED lamp; blower and front window.

✅ 🔬 How It Works?

The BSC-1100IIA2-Pro uses a dual HEPA-filtered airflow system, ensuring that 70% of air is recirculated through ultra-efficient filters while 30% is safely exhausted. Negative pressure surrounds the 304 stainless steel work zone, containing contaminants effectively. The motorized front window, footswitch, and interlocked UV lamp enhance safety, while the microprocessor-based 7″ touch screen allows operators to monitor airflow, filter life, and environmental parameters in real time.

✅ 💡 Advantages

• ✅ Touchscreen Intelligence: 7-inch screen shows velocity, temperature, filter life, and more

• ✅ Space-Saving Design: Compact footprint fits easily in limited lab spaces

• ✅ Safety First: Visual/audio alarms for airflow, filter pressure, and window position

• ✅ Operator Comfort: Motorized window, ergonomic height, foot switch, and casters

• ✅ Efficient Decontamination: Built-in UV lamp (253.7 nm) with programmable timer

• ✅ Power Memory Function: Saves last state during power failure

• ✅ Upgradeable Options: App control, wind speed self-adjustment, data export

✅ 🔍 Recommended Models by Use Case

• 🧬 Educational Labs: Perfect for training environments—compact and easy to operate

• 🧪 Research Centers: Advanced airflow control and safety features meet high-throughput demands

• 🏭 QC & Pharma Labs: Compliance-ready with filter integrity monitoring and ergonomic usability

• 🏥 Clinical Settings: High safety standards ensure biosample and personnel protection

✅ 🧪 Ideal For

• Biotechnology & Life Sciences Labs

• Microbiological & Pathogen Testing

• Pharmaceutical Quality Control

• Food Safety Testing Facilities

• Chemical & Environmental Analysis Labs

• Academic Research Institutes
