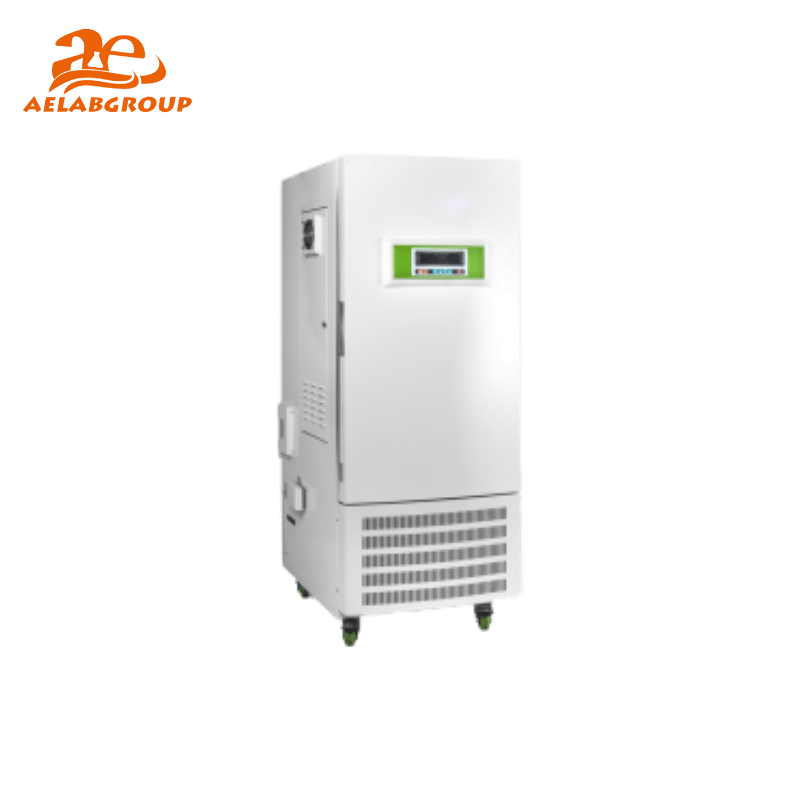

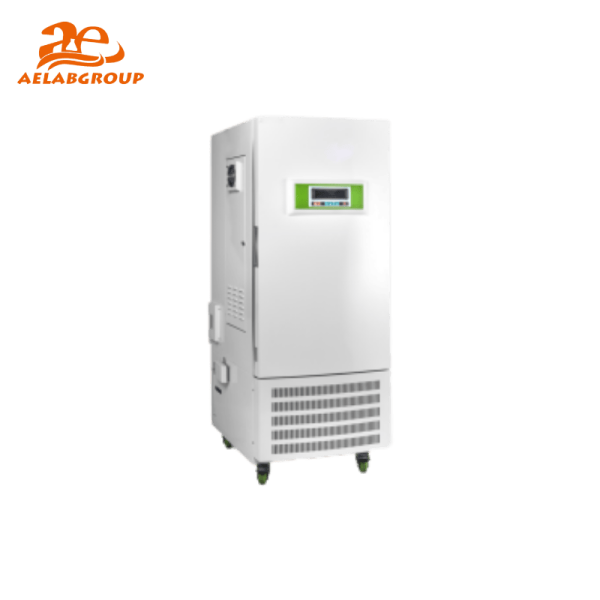

The AELAB LAC-N Series Climate Chamber is engineered for precise environmental control of temperature, humidity, and illumination. With dual refrigeration systems, international brand compressors, and advanced humidity sensing, the LAC-N Series ensures long-term operation stability and energy efficiency for demanding laboratory and industrial testing.
Each chamber is built from polished Stainless Steel with an interior of tempered glass for clear observation. The system employs a magnetic-sealed double door, external water tank, and electric humidification for consistent performance. The intuitive large LCD screen enables accurate control of temperature, humidity, and light intensity with programmable multi-segment profiles.
The LAC-N chamber structure features a Stainless-Steel interior and a powder-coated steel exterior for durability and corrosion resistance. The double-door system includes a magnetic strip for airtight sealing. Each model integrates a JAKEL circulation fan and air duct structure for temperature uniformity. An external water tank feeds the electric humidifier, and a large LCD panel displays real-time operation data.
The AELAB LAC-N Series controls environmental conditions through integrated PID temperature and humidity regulation. Using precision humidity sensors and dual refrigerant compressors, it simulates natural diurnal temperature and light variations. Parameters are stored automatically and restored after power failure. The chamber offers up to six adjustable light intensity levels, programmable temperature ramps, and real-time data logging through the USB interface.
All LAC-N models include a USB interface for data recording and software integration. Temperature and humidity profiles can be exported for GLP documentation. Optional PC software enables remote monitoring, scheduling, and calibration traceability.
| Model | Specifications |
|---|---|
| LAC-175-N | 175 L capacity, 10–55 °C with light, 0–55 °C without light, 0–12000 LX illumination, 1650 W power |
| LAC-475-N | 475 L capacity, 10–55 °C with light, ±1 °C stability, 0–30000 LX illumination, 2900 W power |
| LAC-1075D-N | 1075 L dual-door design, 0–55 °C, 0–30000 LX light, ±1 °C stability, 4200 W power |
| LAC-1675D-N | 1675 L capacity, 0–55 °C range, ±1 °C stability, 0–30000 LX light control, 4600 W power |
The AELAB LAC-N Series is ideal for environmental simulation, stability testing, and controlled growth experiments. Typical applications include pharmaceutical stability analysis, material aging studies, seed germination, and light-sensitive biological research in R&D, food, and chemical industries.
Manufactured under ISO and CE compliance, all AELAB climate chambers undergo multi-point calibration and performance validation. Each unit meets GLP traceability standards with secure data logging and reliable long-term stability assurance.
Specifications :
| Model | LAC-175-N | LAC-275-N | LAC-375-N | LAC-475-N | LAC-800-N | LAC-800D-N | LAC-1075-N | LAC-1075D-N | LAC-1675D-N |
|---|---|---|---|---|---|---|---|---|---|
| Chamber Volume | 175 L | 275 L | 375 L | 475 L | 800 L | 800 L | 1075 L | 1075 L | 1675 L |
| Temperature Range | With light: 10 ~ 55 °C | Without light: 0 ~ 55 °C | |||||||
| Temperature Stability | ≦ ±1 °C | ||||||||
| Display Resolution | 0.1 °C | ||||||||
| Temperature Uniformity | ≦ ±1 °C | ||||||||
| Humidity Range | 30 % ~ 95 % RH | ||||||||
| Humidity Deviation | ± 3 % RH | ||||||||
| Light Intensity (LX) | 0 ~ 12000 (6 levels) | 0 ~ 20000 (6 levels) | 0 ~ 25000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) |
| Power Rating | 1650 W | 2200 W | 2700 W | 2900 W | 4200 W | 4200 W | 4200 W | 4200 W | 4600 W |
| Power Supply | AC 220 V, 50 Hz | ||||||||
| Operating Temperature | +5 ~ 35 °C | ||||||||
| Chamber Size (W×D×H) cm | 45×42×93 | 58×51×94 | 59×55×116 | 70×55×125 | 96×61×137 | 126×50×127.5 | 95×70×160 | 126×67×127.5 | 146×85×135 |
| Exterior Size (W×D×H) cm | 65×73×175 | 77×74×171 | 78×87×191.5 | 88×87×199.5 | 110×93×227 | 141.8*78.1*195 | 101×90×234 | 141.8×95.1×195 | 162.5×122×204 |
| Number of Grids (Std / Max) | 3 / 16 | 3 / 16 | 3 / 21 | 3 / 22 | 3 / 22 | 6 / 18 (2 grids in one level) | 3 / 22 | 6 / 18 (2 grids in one level) | 6 / 20 (2 grids in one level) |
| Model | LAC-175-N | LAC-275-N | LAC-375-N | LAC-475-N | LAC-800-N | LAC-800D-N | LAC-1075-N | LAC-1075D-N | LAC-1675D-N |
|---|---|---|---|---|---|---|---|---|---|
| Chamber Volume | 175 L | 275 L | 375 L | 475 L | 800 L | 800 L | 1075 L | 1075 L | 1675 L |
| Temperature Range | With light: 10 ~ 55 °C | Without light: 0 ~ 55 °C | |||||||
| Temperature Stability | ≦ ±1 °C | ||||||||
| Display Resolution | 0.1 °C | ||||||||
| Temperature Uniformity | ≦ ±1 °C | ||||||||
| Humidity Range | 30 % ~ 95 % RH | ||||||||
| Humidity Deviation | ± 3 % RH | ||||||||
| Light Intensity (LX) | 0 ~ 12000 (6 levels) | 0 ~ 20000 (6 levels) | 0 ~ 25000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) | 0 ~ 30000 (6 levels) |
| Power Rating | 1650 W | 2200 W | 2700 W | 2900 W | 4200 W | 4200 W | 4200 W | 4200 W | 4600 W |
| Power Supply | AC 220 V, 50 Hz | ||||||||
| Operating Temperature | +5 ~ 35 °C | ||||||||
| Chamber Size (W×D×H) cm | 45×42×93 | 58×51×94 | 59×55×116 | 70×55×125 | 96×61×137 | 126×50×127.5 | 95×70×160 | 126×67×127.5 | 146×85×135 |
| Exterior Size (W×D×H) cm | 65×73×175 | 77×74×171 | 78×87×191.5 | 88×87×199.5 | 110×93×227 | 141.8*78.1*195 | 101×90×234 | 141.8×95.1×195 | 162.5×122×204 |
| Number of Grids (Std / Max) | 3 / 16 | 3 / 16 | 3 / 21 | 3 / 22 | 3 / 22 | 6 / 18 (2 grids in one level) | 3 / 22 | 6 / 18 (2 grids in one level) | 6 / 20 (2 grids in one level) |
