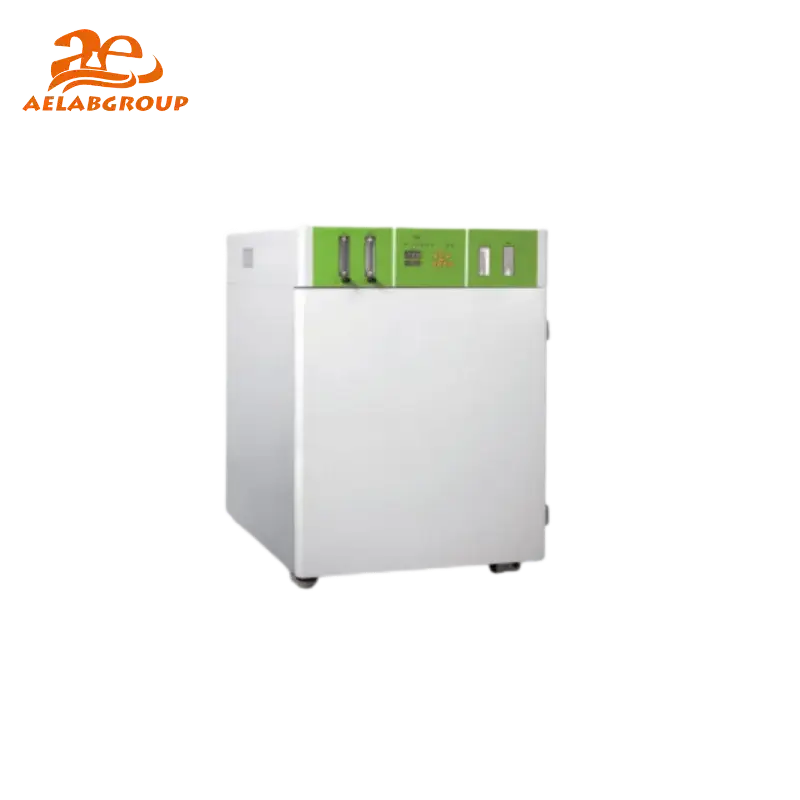

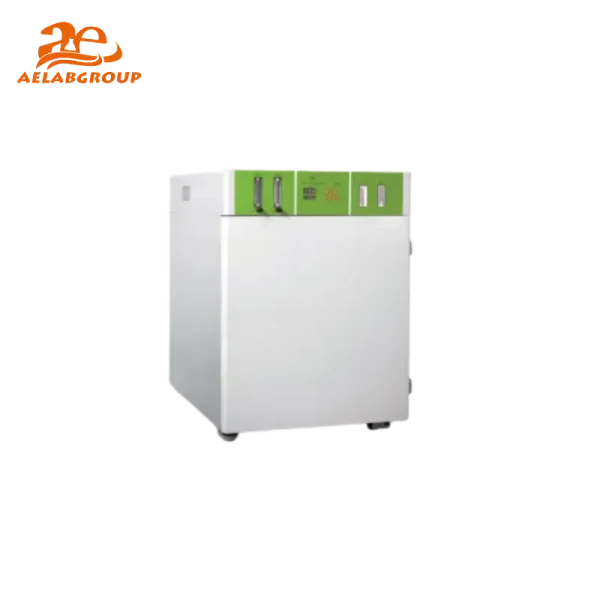

The AELAB AE-WJ2 Series CO₂ Incubator provides precise control of temperature, CO₂ concentration, and humidity, ensuring optimal conditions for sensitive cell and tissue cultures. Designed with advanced PID microprocessor control, it maintains uniform environmental parameters throughout the chamber.
The AE-WJ2 Series features a polished Stainless Steel inner chamber with either water jacket or air jacket structure. Forced convection ensures even temperature distribution, while double-layer glass doors allow easy observation without affecting internal conditions. The exterior shell is coated steel, and the control interface includes a digital LED display for real-time parameter monitoring.
Temperature and CO₂ concentration are regulated via PID microprocessor control. Natural vaporization maintains humidity equilibrium, while the CO₂ gas level (0 – 20 %) is stabilized for optimal cell metabolism. The timing range up to 9999 minutes allows programmable incubation cycles. A built-in UV sterilization system reduces contamination risk.
The incubator supports RS232 data interface (optional) for GLP data management and laboratory integration. Power supply is standardized at AC 220 V / 50 Hz, ensuring compatibility with international laboratory systems.
| Model | Specifications |
|---|---|
| AE-WJ2-80 | 80 L capacity, RT+3 ~ 60 °C, 0 – 20 % CO₂, 600 W, 55 kg |
| AE-WJ2-160 | 160 L capacity, RT+3 ~ 60 °C, 0 – 20 % CO₂, 900 W, 75 kg |
The AE-WJ2 Series is ideal for cell biology, tissue culture, genetic engineering, immunology, pharmaceutical testing, and biochemical research. It supports cultivation of mammalian, bacterial, and yeast cells under controlled CO₂ and humidity environments.
The AELAB AE-WJ2 Series meets ISO and CE laboratory equipment standards. Each unit undergoes strict performance calibration, ensuring accuracy, reliability, and GLP compliance for professional laboratory applications.

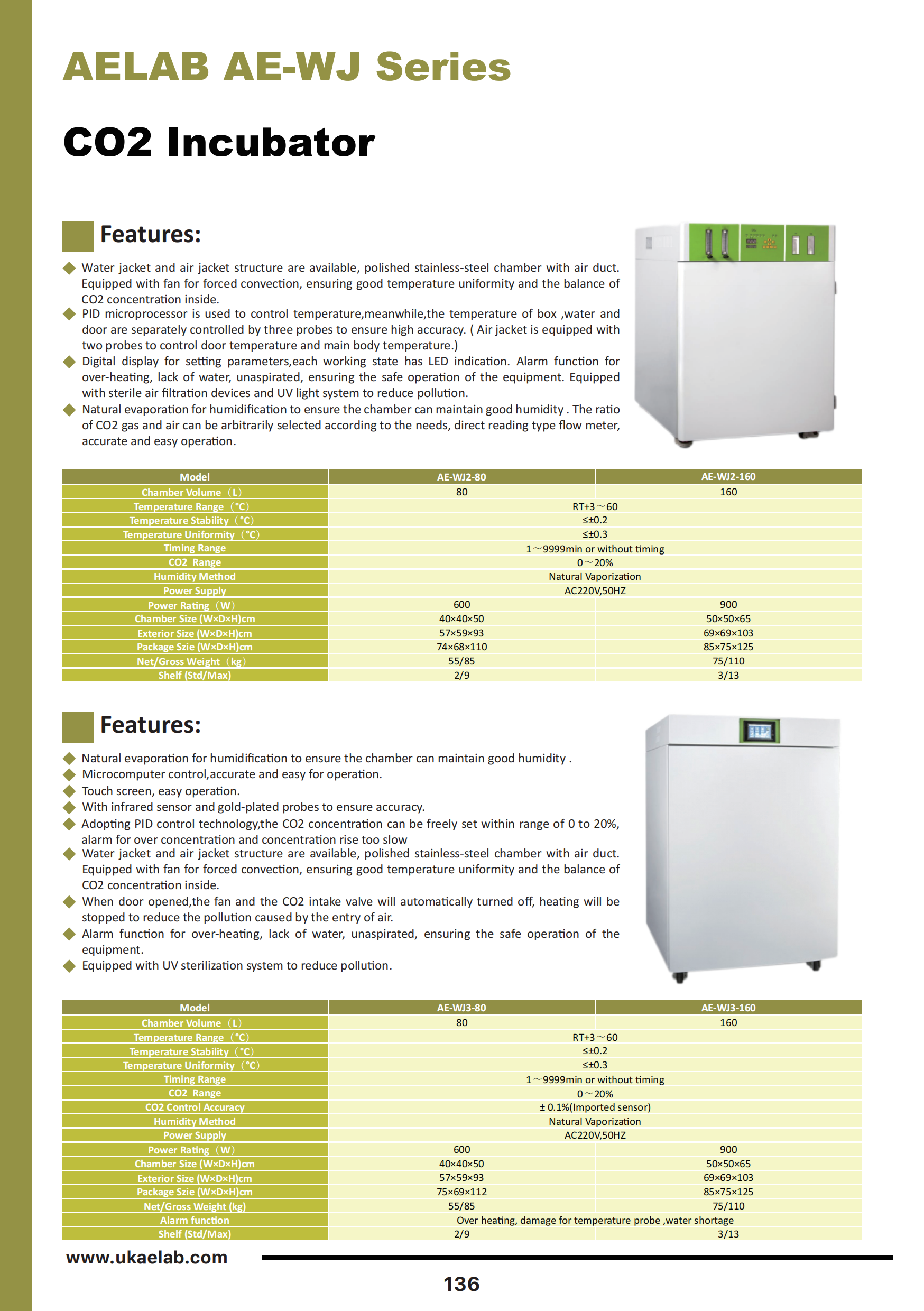

Specifications :
| Model | AE-WJ3-80 | AE-WJ3-160 |
|---|---|---|
| Chamber Volume (L) | 80 | 160 |
| Temperature Range (°C) | RT+3～60 | |
| Temperature Stability (°C) | ±0.2 | |
| Temperature Uniformity (°C) | ±0.3 | |
| Timing Range | 1～9999 min or without timing | |
| CO₂ Range | 0～20% | |
| CO₂ Control Accuracy | ±0.1% (Imported sensor) | |
| Humidity Method | Natural Vaporization | |
| Power Supply | AC220V, 50Hz | |
| Power Rating (W) | 600 | 900 |
| Chamber Size (W×D×H) cm | 40×40×50 | 50×50×65 |
| Exterior Size (W×D×H) cm | 57×59×93 | 69×69×103 |
| Package Size (W×D×H) cm | 75×69×112 | 85×75×125 |
| Net/Gross Weight (kg) | 55/85 | 75/110 |
| Alarm Function | Overheating, damage for temperature probe, water shortage | Overheating, damage for temperature probe, water shortage |
| Shelf (Std/Max) | 2/9 | 3/13 |
| Model | AE-WJ3-80 | AE-WJ3-160 |
|---|---|---|
| Chamber Volume (L) | 80 | 160 |
| Temperature Range (°C) | RT+3～60 | |
| Temperature Stability (°C) | ±0.2 | |
| Temperature Uniformity (°C) | ±0.3 | |
| Timing Range | 1～9999 min or without timing | |
| CO₂ Range | 0～20% | |
| CO₂ Control Accuracy | ±0.1% (Imported sensor) | |
| Humidity Method | Natural Vaporization | |
| Power Supply | AC220V, 50Hz | |
| Power Rating (W) | 600 | 900 |
| Chamber Size (W×D×H) cm | 40×40×50 | 50×50×65 |
| Exterior Size (W×D×H) cm | 57×59×93 | 69×69×103 |
| Package Size (W×D×H) cm | 75×69×112 | 85×75×125 |
| Net/Gross Weight (kg) | 55/85 | 75/110 |
| Alarm Function | Overheating, damage for temperature probe, water shortage | Overheating, damage for temperature probe, water shortage |
| Shelf (Std/Max) | 2/9 | 3/13 |
