The AELAB SK5004 Coagulation Analyzer provides comprehensive clotting analysis with high sensitivity and reproducibility. It integrates a multi-channel optical detection system and an intelligent temperature control mechanism for accurate, simultaneous evaluation of major coagulation parameters including PT, APTT, TT, and FIB.
Using advanced light-matching optics and a low-reagent open-system design, the SK5004 ensures reliable test outcomes for both clinical and research laboratories requiring quantitative plasma coagulation studies.

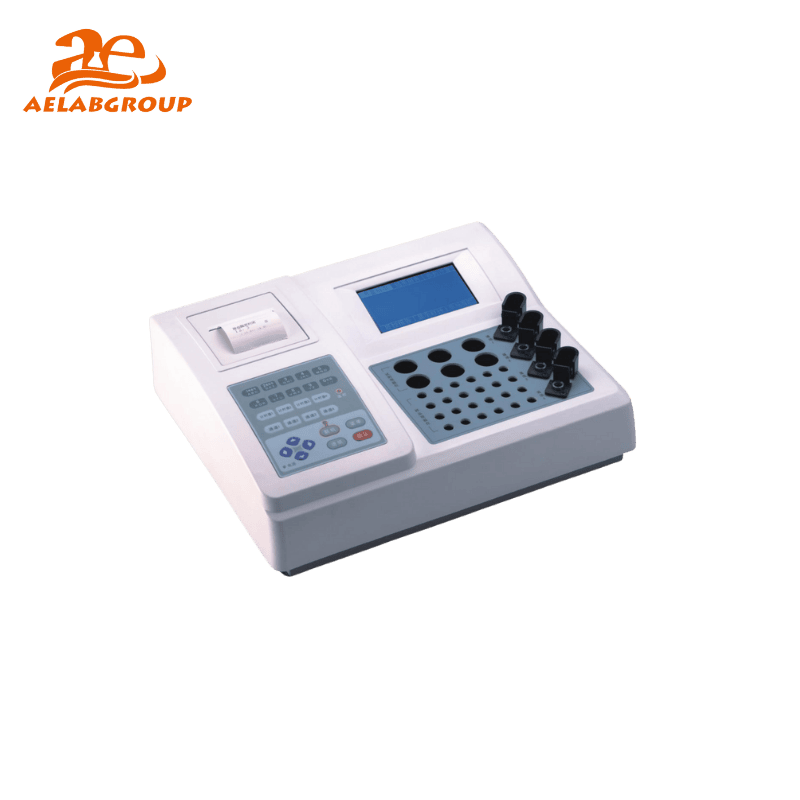

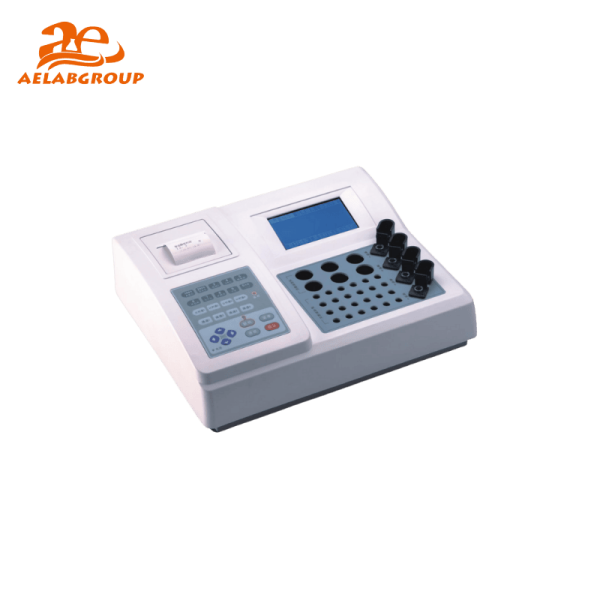

The AELAB SK5004 features a durable laboratory-grade housing with a 240 × 128 LCD display and integrated thermal printer. It includes four test channels, a 24-position incubation block for samples, and six reagent incubation wells. The instrument maintains 37 °C ± 0.3 °C through a high-precision thermostat and uses a 470 nm wavelength photometric system to ensure analytical consistency. Optional electronic pipette linkage and RS-232 PC connectivity enable automation and data transfer.
The SK5004 operates via an optical clot detection principle using transmitted light at 470 nm to monitor plasma coagulation reactions. Each channel measures changes in optical density during fibrin formation. The analyzer supports quantitative and qualitative determination of PT, APTT, TT, and FIB values, automatically calculating INR, PTR, and % activity indices. Built-in timers and temperature stabilization guarantee precise reaction conditions.
The SK5004 supports RS-232 communication for PC connection, enabling data management through external software. An internal thermal-sensitive printer provides direct report output. Optional pipette linkage enhances laboratory throughput and minimizes handling errors, while English interface menus simplify operation for clinical staff.
| Model | Testing Channels | Wavelength | Temperature Precision | Memory | Weight |
|---|---|---|---|---|---|
| SK5004 | 4 Channels | 470 nm | 37 °C ± 0.3 °C | 10,000 Results | 7 kg |
The AELAB SK5004 Coagulation Analyzer is suitable for clinical hematology, hospital diagnostic centers, and pharmaceutical laboratories. It performs PT, APTT, TT, and FIB assays, supporting hemostasis research, coagulation factor studies, and anticoagulant therapy monitoring.
Manufactured under ISO and CE compliance, the SK5004 meets GLP standards for medical diagnostic devices. Each unit undergoes strict factory calibration, ensuring measurement traceability and consistent performance across analytical environments.
Specifications :
| Specification | SK5004 |
|---|---|
| Test Channel Number | 4 channels; 4 different parameters analysis at the same time |
| Sample Incubation Block | 24 positions |
| Reagent Incubation Block | 6 positions |
| Software Timer | 4 |
| Test Wavelength | 470 nm |
| Memory | 10,000 test results |
| Temperature Control Precision | 37 °C ± 0.3 °C |
| Sample Volume | 20 µL–40 µL |
| Reagent Consumption | 20 µL–40 µL |
| Coincidence Indicator | <3 % |
| Notation of Result | S, %, PTR, INR, g/L |
| Operation Language | English |
| Display | 240 × 128 LCD |
| Power Supply | 220 VAC ± 15 % 50–60 Hz |
| Dimensions (W × D × H) | 395 mm × 320 mm × 135 mm |
| Working Environment | 15 °C–30 °C wet≤ 90 % |
| Weight | 7 kg |
| Specification | SK5004 |
|---|---|
| Test Channel Number | 4 channels; 4 different parameters analysis at the same time |
| Sample Incubation Block | 24 positions |
| Reagent Incubation Block | 6 positions |
| Software Timer | 4 |
| Test Wavelength | 470 nm |
| Memory | 10,000 test results |
| Temperature Control Precision | 37 °C ± 0.3 °C |
| Sample Volume | 20 µL–40 µL |
| Reagent Consumption | 20 µL–40 µL |
| Coincidence Indicator | <3 % |
| Notation of Result | S, %, PTR, INR, g/L |
| Operation Language | English |
| Display | 240 × 128 LCD |
| Power Supply | 220 VAC ± 15 % 50–60 Hz |
| Dimensions (W × D × H) | 395 mm × 320 mm × 135 mm |
| Working Environment | 15 °C–30 °C wet≤ 90 % |
| Weight | 7 kg |
