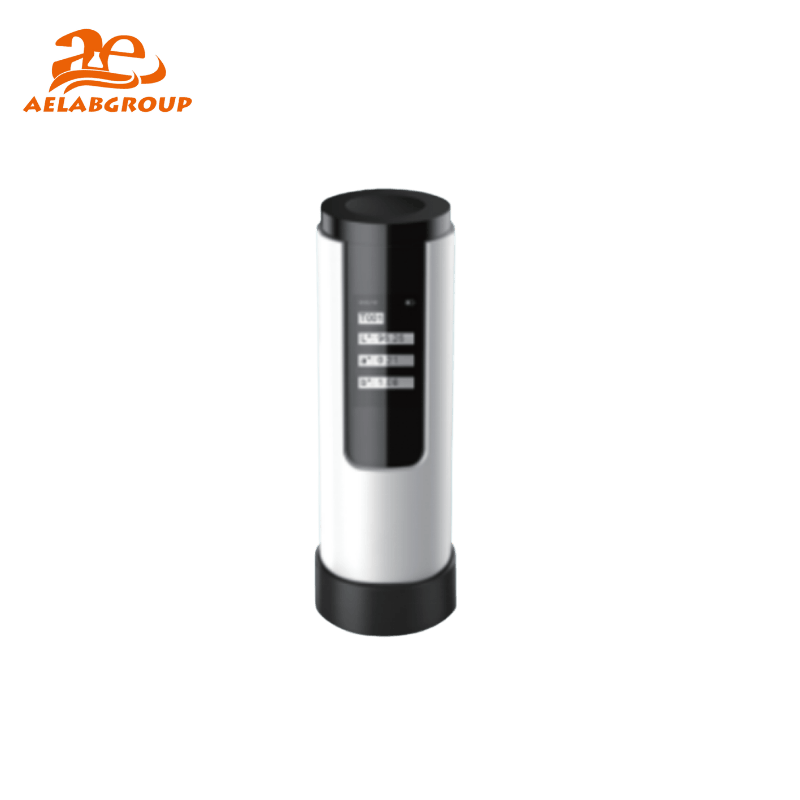

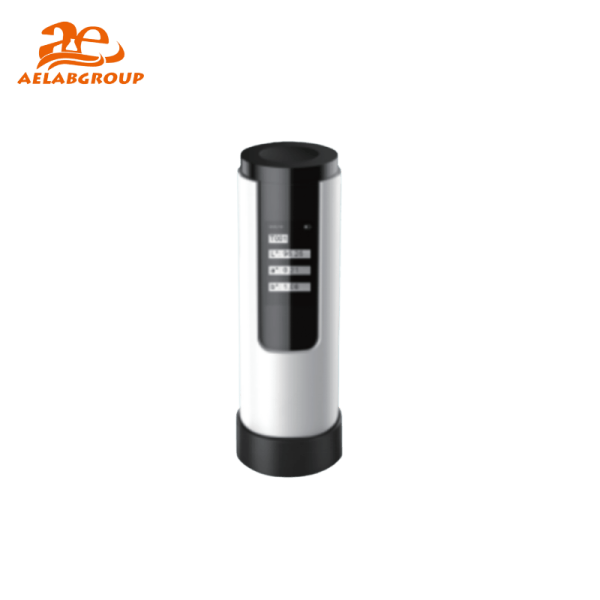

The AELAB DS-01/02/03 Colorimeter Series integrates advanced optical design with automatic calibration and multi-condition LED illumination for precise and reproducible color difference measurement. Each model combines compact portability with digital accuracy, supporting cloud database management and Bluetooth data transmission for modern laboratory and industrial color matching workflows.
The DS Series colorimeters employ a d/8 measurement geometry with specular included (SCI) configuration, ensuring consistency across reflective and diffuse samples. Each unit features a full-band balanced LED light source and an 8 mm aperture. The IPS full color display provides sharp visual feedback, while the lightweight 90 g structure supports single-handed operation.
Based on the CIE-Lab system, the DS-01 quantifies ΔE*ab values for standard color deviation analysis. The DS-02 and DS-03 extend this capability to multiple color spaces including HunterLab, CIE-LCh, and CIE-Luv. They calculate whiteness, blackness, color fastness, and CMYK density following ASTM and ISO protocols, providing precise evaluation for coatings, textiles, plastics, and printed materials.
The AELAB DS-01/02/03 Series supports Android, iOS, HarmonyOS, and Windows platforms via Bluetooth and USB. Data can be viewed, uploaded, and compared through the WeChat mini program and dedicated AELAB software, enabling GLP-compliant data traceability and remote access for laboratory and production environments.
| Model | Core Features |
|---|---|
| DS-01 | CIE-Lab color measurement, D65 light source, ΔE≤0.1, 10,000 measurements per charge |
| DS-02 | Expanded color indices, multiple light sources (A–TL84), ΔE≤0.1, 12,000 measurements per charge |
| DS-03 | High-precision mode, ΔE≤0.05, 12,000 measurements per charge, full spectrum analysis |
The DS Series is ideal for industrial color quality assurance, coating formulation, textile dyeing, plastic color matching, printing ink analysis, and material appearance testing. Its precision and portability make it suitable for both R&D and field inspection environments.
All AELAB DS-01/02/03 Colorimeters comply with ISO and ASTM colorimetric standards, supporting GLP data management and calibration traceability. Each instrument is manufactured under AELAB’s strict quality control and CE certification procedures.
Specifications :
| Model | DS-01 | DS-02 | DS-03 |
|---|---|---|---|
| Measurement Structure | d/8, including specular reflected light (SCI) | ||
| Measurement Index | CIE-Lab, ΔE*ab | CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, chromatic aberration (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBergerStensby), yellow degree (ASTM D1925, ASTM E313-00, ASTM E313-73), blackness (My, dM), color fastness, color change fastness, Tint (ASTM E313-00), color density CMYK (A, T, E, M), isochromatic index Munsell, covering power, force (dye strength, coloring power) | |
| Lighting Source | LED (Full band balanced LED light source) | ||
| Lighting Aperture | 8 mm | ||
| Measurement Stability | ΔE≤0.1 | ΔE≤0.05 | |
| Port | USB (charging only), Bluetooth | USB, Bluetooth | |
| Light Source Condition | D65 | A, B, C, D50, D55, D65, D75, F1–F12, CWF, U30, U35, DLF, NBF, TL83, TL84 | |
| Field Angle | 10° | 2° or 10° | |
| Screen | IPS full color screen (135×240, 1.14 inch) | ||
| Battery Capacity | A single full charge can measure 10,000 times continuously | A single full charge can measure 12,000 times continuously | |
| Calibration | Automatic calibration | ||
| Language | Simplified Chinese and English | ||
| Software Support | Android, iOS, WeChat mini program, HarmonyOS | Android, iOS, WeChat mini program, HarmonyOS, Windows | |
| Weight | About 90 g | ||
| Volume | Diameter: 31 mm, Height: 102 mm | ||
| Measuring Time | 1.5 s | 1 s | |
| Model | DS-01 | DS-02 | DS-03 |
|---|---|---|---|
| Measurement Structure | d/8, including specular reflected light (SCI) | ||
| Measurement Index | CIE-Lab, ΔE*ab | CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, chromatic aberration (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, TaubeBergerStensby), yellow degree (ASTM D1925, ASTM E313-00, ASTM E313-73), blackness (My, dM), color fastness, color change fastness, Tint (ASTM E313-00), color density CMYK (A, T, E, M), isochromatic index Munsell, covering power, force (dye strength, coloring power) | |
| Lighting Source | LED (Full band balanced LED light source) | ||
| Lighting Aperture | 8 mm | ||
| Measurement Stability | ΔE≤0.1 | ΔE≤0.05 | |
| Port | USB (charging only), Bluetooth | USB, Bluetooth | |
| Light Source Condition | D65 | A, B, C, D50, D55, D65, D75, F1–F12, CWF, U30, U35, DLF, NBF, TL83, TL84 | |
| Field Angle | 10° | 2° or 10° | |
| Screen | IPS full color screen (135×240, 1.14 inch) | ||
| Battery Capacity | A single full charge can measure 10,000 times continuously | A single full charge can measure 12,000 times continuously | |
| Calibration | Automatic calibration | ||
| Language | Simplified Chinese and English | ||
| Software Support | Android, iOS, WeChat mini program, HarmonyOS | Android, iOS, WeChat mini program, HarmonyOS, Windows | |
| Weight | About 90 g | ||
| Volume | Diameter: 31 mm, Height: 102 mm | ||
| Measuring Time | 1.5 s | 1 s | |
