The AELAB ColorMeter SE / Pro / MAX series offers advanced portable color measurement with spectral precision and digital connectivity. Designed for both research laboratories and industrial color control, these instruments utilize D/8 geometry and SCI configuration to deliver consistent and highly accurate reflectance data across multiple substrates.

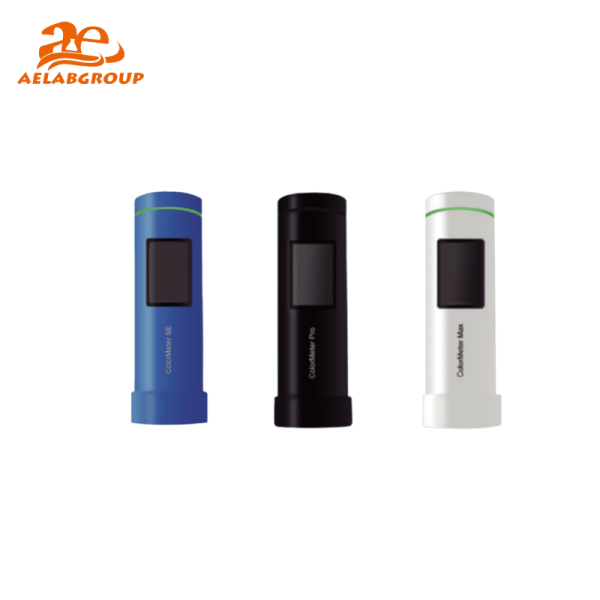

The ColorMeter SE, Pro, and MAX models feature a compact cylindrical design with an IPS full color display (135×240 resolution, 1.14 inches). The instrument body is engineered for handheld stability, while the integrated full-wavelength balanced LED light source ensures repeatable illumination for every test. The 8 mm aperture guarantees uniform optical capture across all surfaces.
Each model applies D/8 diffused illumination with 8° viewing geometry and SCI (specular component included). The built-in spectral sensor quantifies reflectance over the 400–700 nm range with 10 nm intervals (Pro/MAX). Colorimetric parameters such as CIE-Lab, ΔE, Hunter Lab, RGB, CMYK, and multiple whiteness and yellowness indices are automatically computed. Auto-calibration maintains consistency, while results can be displayed directly or uploaded to the cloud database.
The AELAB ColorMeter series connects via USB and Bluetooth to mobile or PC applications, enabling direct measurement display, color comparison, and cloud database synchronization. The integrated software supports Android, iOS, and Windows platforms (Windows not supported for SE model). Data can be stored, compared, and exported in real-time for QA or R&D documentation.
| Model | Specifications |
|---|---|
| ColorMeter SE | Basic D/8 SCI colorimeter, ΔE ≤ 0.1, Android/iOS, 5,000 tests, USB charge only |
| ColorMeter Pro | Spectral sensor, 400–700 nm range, ΔE ≤ 0.05, USB connection, 10,000 tests, Android/iOS/Windows |
| ColorMeter MAX | Enhanced Pro version with wider index support, faster response (1 s), and advanced cloud features |
The AELAB ColorMeter SE / Pro / MAX series is ideal for applications in textile color matching, plastic pigmentation, paint formulation, printing calibration, coating quality control, cosmetic testing, and material surface evaluation. It provides rapid quantitative color data essential for research, production, and quality assurance environments.
All AELAB ColorMeter instruments comply with ISO, CE, and GLP standards for laboratory-grade precision. Each device is factory-calibrated and traceable to international color measurement references, ensuring repeatable and verifiable performance across all industrial and scientific testing workflows.
Specifications :
| Model | ColorMeter SE | ColorMeter Pro | ColorMeter MAX | |
|---|---|---|---|---|
| Geometry | D/8, Specular Component Included (SCI) | |||
| Color Spaces and Indices | CIE-Lab, ΔE*ab, reflectance curve | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Lux, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness index (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), Yellowness Index (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index (My,dM), Staining Fastness, Color Fastness, Tint (ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Mlim, Munsell, Opacity, Color Strength | ||
| Light Source | LED (Full Wavelength Balanced LED Light Source) | |||
| Test Aperture | 8 mm | |||
| Wavelength Interval | / | 10 nm | ||
| Wavelength Range | / | 400–700 nm | ||
| Repeatability | ΔE ≤ 0.1 (when a white tile is measured 30 times at 5-second intervals after calibration) | ΔE ≤ 0.05 (when a white tile is measured 30 times at 5-second intervals after calibration) | ||
| Measurement Time | 1.5 s | 1 s | ||
| Interface | USB (only for charging) | USB | ||
| Illuminants | D65 | A,B,C,D50,D55,D65,D75,F1–F12,CWF,U30,U35,DLF,NBF,TL83,TL84 | ||
| Observer | 10° | 2° and 10° | ||
| Screen | IPS Full Color Screen (Resolution 135×240, 1.14 inches) | |||
| Battery | 4.2 V / 500 mAh, Rechargeable, 5,000 continuous tests | 4.2 V / 760 mAh, Rechargeable, 10,000 continuous tests | ||
| Calibration | Auto | |||
| Language | English and Chinese | |||
| Software Support | Android, iOS | Android, iOS, Windows | ||
| Weight | About 90 g | |||
| Instrument Size | Diameter 31 mm × Height 102 mm | |||
| Model | ColorMeter SE | ColorMeter Pro | ColorMeter MAX | |
|---|---|---|---|---|
| Geometry | D/8, Specular Component Included (SCI) | |||
| Color Spaces and Indices | CIE-Lab, ΔE*ab, reflectance curve | Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Lux, XYZ, Yxy, RGB, Color Difference (ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00), Whiteness index (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), Yellowness Index (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index (My,dM), Staining Fastness, Color Fastness, Tint (ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Mlim, Munsell, Opacity, Color Strength | ||
| Light Source | LED (Full Wavelength Balanced LED Light Source) | |||
| Test Aperture | 8 mm | |||
| Wavelength Interval | / | 10 nm | ||
| Wavelength Range | / | 400–700 nm | ||
| Repeatability | ΔE ≤ 0.1 (when a white tile is measured 30 times at 5-second intervals after calibration) | ΔE ≤ 0.05 (when a white tile is measured 30 times at 5-second intervals after calibration) | ||
| Measurement Time | 1.5 s | 1 s | ||
| Interface | USB (only for charging) | USB | ||
| Illuminants | D65 | A,B,C,D50,D55,D65,D75,F1–F12,CWF,U30,U35,DLF,NBF,TL83,TL84 | ||
| Observer | 10° | 2° and 10° | ||
| Screen | IPS Full Color Screen (Resolution 135×240, 1.14 inches) | |||
| Battery | 4.2 V / 500 mAh, Rechargeable, 5,000 continuous tests | 4.2 V / 760 mAh, Rechargeable, 10,000 continuous tests | ||
| Calibration | Auto | |||
| Language | English and Chinese | |||
| Software Support | Android, iOS | Android, iOS, Windows | ||
| Weight | About 90 g | |||
| Instrument Size | Diameter 31 mm × Height 102 mm | |||
