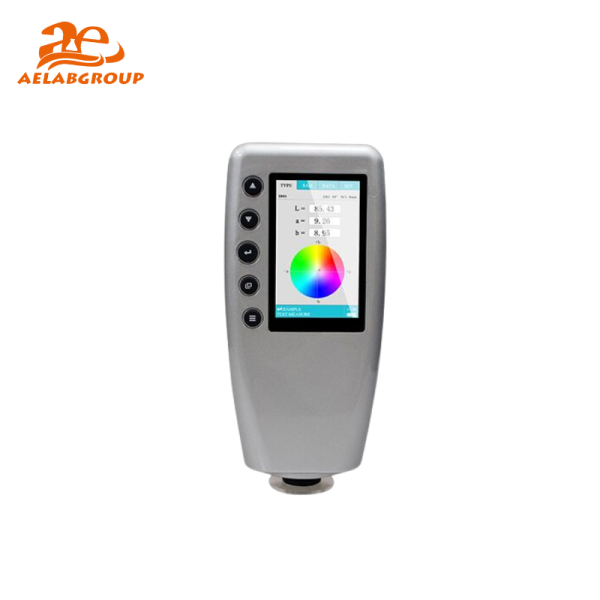

The AELAB Colorimeter WR10 is a high-precision handheld color measurement instrument engineered for reliable and repeatable evaluation of color differences across industrial and laboratory environments. Using imported optical components and following International Commission on Illumination (CIE) standards, the WR10 offers outstanding stability, speed, and user convenience. It supports color quality control, sampling analysis, and on-site testing across industries such as textiles, coatings, leather, plastics, chemicals, printing, and photography.
With its 8 mm measurement aperture and true color TFT screen, the WR10 enables accurate detection of color variations on flat surfaces. It is cost-efficient, simple to operate, and ideal for color matching in injection, inking, and spraying processes. The rechargeable lithium-ion battery ensures long service life, while the intuitive interface allows rapid testing and calibration-free operation.
The WR10 features a durable ergonomic housing with an integrated 2.8-inch TFT color display. The optical system uses a photodiode array sensor and a D65 standard light source to ensure uniform illumination and stable readings. Designed with CIE 8/d geometry and a CIE 10° standard observer configuration, it provides consistent CIELAB measurements across a wide luminance range (L: 0 – 100).
The WR10 operates on the CIELAB color space and ΔE*ab color difference formula. The sample is illuminated by a D65 light source, and the reflected light intensity is captured by the photodiode array. The system computes color difference (ΔE) with high repeatability (ΔE<0.08) and displays the data on the TFT screen. Measurement intervals of 0.5 seconds allow fast and continuous sampling for production lines or quality assurance laboratories.
The WR10 Colorimeter can connect via AC adapter for direct power or charging. Data may be exported to external devices using an optional micro printer. The unit’s memory architecture allows independent data group storage, enabling efficient offline analysis and batch comparison in laboratory or production settings.
| Model | Measurement Range | Light Source | Accuracy | Battery | Display |
|---|---|---|---|---|---|
| WR10 | L: 0 – 100 (CIELAB) | D65 Standard Illuminant | ΔE<0.08 | Li-ion 3000 mAh | TFT 2.8″ Color Display |
The AELAB WR10 is ideal for use in coatings, paints, plastics, textiles, leathers, paper, printing, and ink production. It supports laboratory research, industrial QC inspection, and on-site color uniformity analysis. Suitable for color matching, pigment evaluation, and process verification where high-accuracy ΔE assessment is essential.
The WR10 complies with CE and RoHS certifications and follows CIE recommendations for optical measurement geometry. All AELAB instruments are manufactured under ISO-certified quality management systems and calibrated against traceable standards to ensure measurement reliability and GLP compatibility.
Specifications :
| Model | WR-10 |
|---|---|
| Color Space | CIELAB |
| Color Difference Formula | ΔE*ab |
| Measurement Caliber | Φ8 mm |
| Illumination Condition | CIE Recommendation: 8/d |
| Light Source | D65 |
| Sensor | Photodiode array |
| Observer | CIE 10° Standard observer |
| Measurement Range | L: 0 to 100 |
| Repeated Accuracy | ΔE<0.08 |
| Table Difference | ΔE<0.2 |
| Measurement Interval | 0.5 sec |
| Storage Capacity | Type sample data: 100 groups / Testing sample data: 100 groups |
| Lifetime of Bulb | 5 years / more than 1.6 million measurements |
| Display Screen | TFT true color 2.8 inch (16:9) |
| Language | English / Simplified Chinese |
| Working Temperature Range | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature Range | −20 °C – 50 °C (−4 °F – 122 °F) |
| Humidity Range | Relative humidity < 85% without condensation |
| Weight | 700 g |
| Size | 199 × 68 × 90 mm |
| Package Size | 400 × 240 × 340 mm |
| Battery | Li-ion battery, 5000 times measurement capacity |
| Battery Charging Time | 8 hours |
| Standard Accessories | AC adapter / 3000 mAh Li-ion battery |
| Optional Accessories | Flour measuring device / Micro printer |
| Model | WR-10 |
|---|---|
| Color Space | CIELAB |
| Color Difference Formula | ΔE*ab |
| Measurement Caliber | Φ8 mm |
| Illumination Condition | CIE Recommendation: 8/d |
| Light Source | D65 |
| Sensor | Photodiode array |
| Observer | CIE 10° Standard observer |
| Measurement Range | L: 0 to 100 |
| Repeated Accuracy | ΔE<0.08 |
| Table Difference | ΔE<0.2 |
| Measurement Interval | 0.5 sec |
| Storage Capacity | Type sample data: 100 groups / Testing sample data: 100 groups |
| Lifetime of Bulb | 5 years / more than 1.6 million measurements |
| Display Screen | TFT true color 2.8 inch (16:9) |
| Language | English / Simplified Chinese |
| Working Temperature Range | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature Range | −20 °C – 50 °C (−4 °F – 122 °F) |
| Humidity Range | Relative humidity < 85% without condensation |
| Weight | 700 g |
| Size | 199 × 68 × 90 mm |
| Package Size | 400 × 240 × 340 mm |
| Battery | Li-ion battery, 5000 times measurement capacity |
| Battery Charging Time | 8 hours |
| Standard Accessories | AC adapter / 3000 mAh Li-ion battery |
| Optional Accessories | Flour measuring device / Micro printer |
