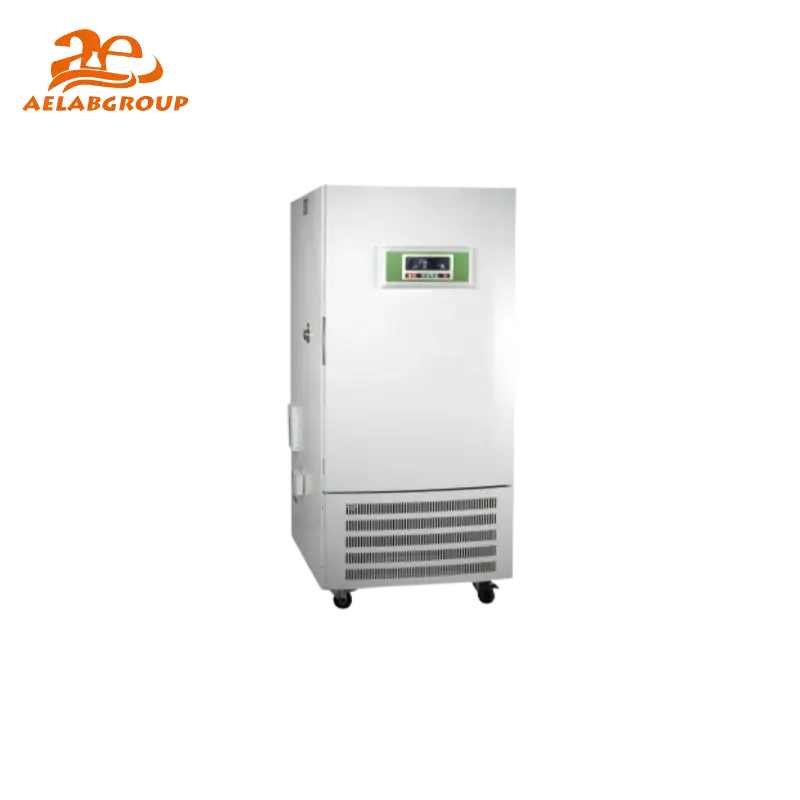

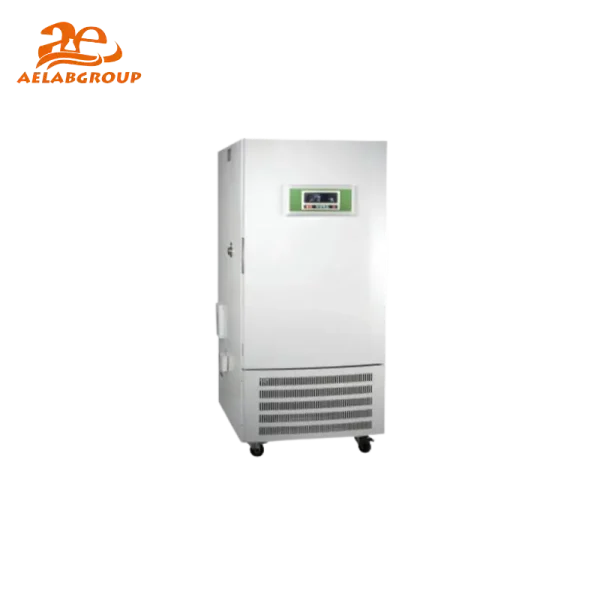

AELAB AE-LS175 Constant Temperature & Humidity Chamber

The AELAB AE-LS175 Constant Temperature & Humidity Chamber is designed to provide stable environmental conditions for precision testing. It uses an imported fluorine-free compressor and high-accuracy humidity sensor to deliver reliable temperature and humidity control across a broad range of laboratory and industrial applications.

This model features double door construction with a tempered glass inner door for clear observation. Parameters can be automatically restored after power recovery, and the Stainless Steel chamber includes adjustable shelves for flexible loading.

⚙️ Design & Construction

The AELAB AE-LS175 chamber incorporates a fluorine-free compressor system, high-accuracy humidity sensing, and a Stainless Steel interior chamber to ensure durability and long-term performance. The double temperature control system enhances reliability, while the tempered glass inner door supports visual inspection without disturbing internal conditions. A large LCD interface enables intuitive programming and monitoring, and the unit includes USB data export, UV sterilization, and a built-in printer for traceable documentation.

🔬 Working Principle / Testing Method

The AE-LS175 regulates temperature from 0–65°C and maintains humidity within 30–95%RH using precision sensor feedback and PID-based control algorithms. The chamber stabilizes environmental parameters through automated heating, cooling, humidification, and dehumidification cycles. Uniform airflow distribution supports ±1°C temperature uniformity, while the humidity subsystem maintains ±3%RH stability, enabling reproducible environmental conditioning for long-duration testing.

💡 Key Advantages

• High-accuracy environmental stabilization for accelerated aging, stress screening, and materials evaluation
• Fluorine-free compressor for reduced environmental impact and efficient cooling performance
• Automatic resume function preserves test integrity after power interruptions
• Adjustable Stainless Steel shelves allow optimized chamber configuration
• Integrated UV sterilizer helps maintain a clean test environment
• USB data download and built-in printer enhance GLP documentation and traceability
• Self-diagnosis and alarm system supports safe, continuous operation

🔗 Connectivity & Integration

The AE-LS175 includes a USB port for data transfer, enabling seamless integration with laboratory information systems. The built-in printer supports on-site report generation, while multi-segment program control allows precise environmental profiling for advanced testing workflows.

🧠 Model Insight

🧪 Testing Applications

The chamber is suitable for environmental simulation, stability testing, reliability evaluation, materials aging, electronic component conditioning, pharmaceutical quality studies, and humidity-controlled research. Its precise control capabilities support long-term endurance tests and cyclic temperature-humidity profiling.

Compliance & Quality Assurance

The AELAB AE-LS175 is manufactured under strict ISO and CE quality frameworks. All parameters are tested under non-load conditions at 20°C and 50%RH to ensure measurement traceability and compliance with laboratory performance standards.
