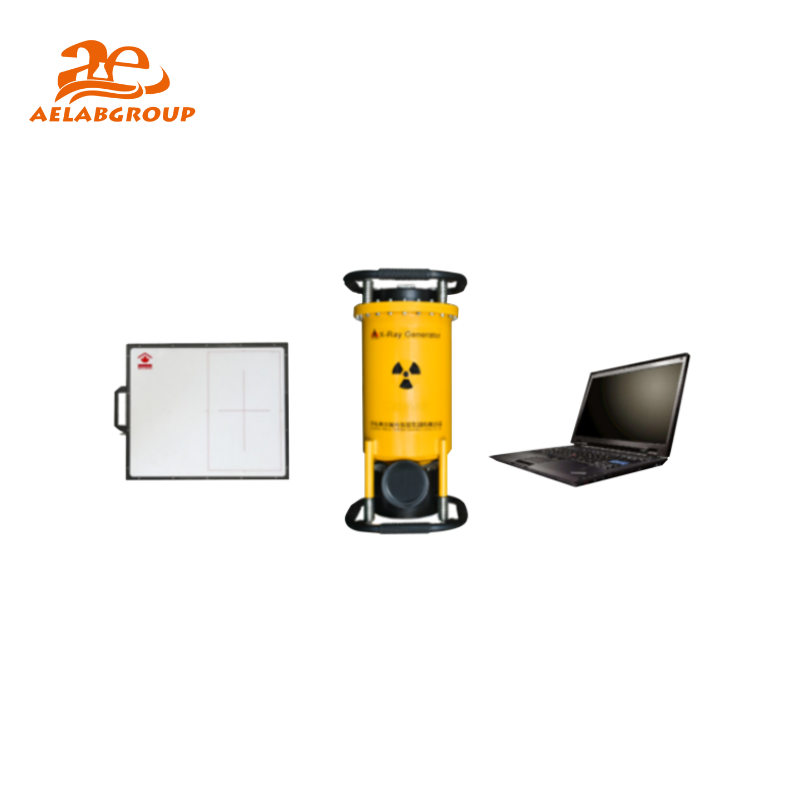

The Conversion Frequency Portable X-ray Unit combines efficiency, portability, and safety. Featuring a wind-cooled X-ray generator with anode grounding, it ensures reliable performance. Its lightweight design allows for easy transport and operation, with a working rate of 1:1 for consistent results.
The ergonomic design enhances usability, while a delayed exposure feature prioritizes operator safety. This unit is a practical and dependable choice for professionals needing portable diagnostic imaging.
The Conversion Frequency Portable X-ray Unit is designed to offer exceptional functionality and reliability in a compact and lightweight form. It features a small X-ray generator with wind cooling, employing anode grounding for enhanced performance and durability. This advanced design ensures efficient operation while maintaining user-friendly handling.
Weighing significantly less than traditional units, this device is easy to transport and operate, making it ideal for various professional and field applications. The unit’s working rate of 1:1 reflects its robust and consistent performance under demanding conditions. Its ergonomic design not only enhances usability but also guarantees superior performance, addressing the needs of modern medical and industrial diagnostics.
Safety remains a top priority with the inclusion of a delayed exposure feature, which minimizes operator exposure to radiation during use. This thoughtful addition underlines the unit’s focus on user protection without compromising functionality.
In summary, the Conversion Frequency Portable X-ray Unit is a well-engineered device that combines portability, reliability, and safety, making it an excellent choice for professionals requiring precise and convenient diagnostic imaging solutions.
Porduct advantages
Specifications :
| Detector mode | A-si |
| Scintillator | GOS |
| Image size | 350mm×210mm |
| Pixel matrix | 2560×1536 |
| Pixel pitch | 139μm |
| A/D conversion | 16bit |
| Space solution | 3.6LP/mm |
| Captured image time | 1s(wired)/2.5s(wireless) |
| Energy of X-rays | 40 - 450kV |
| Weight | 2.9kg |
| Working environment | 5 - 35℃, 10 - 75%RH |
| Input voltage | 100 - 300kV |
| Tube current | 5mA |
| Focus size | 2.5×2.5mm |
| Radiation angle | 40° |
| Sensitivity | ≤1.5% |
| Film density | D>1.5 |
| Max.penetration by film | 50mm(Fe) |
| Detector mode | A-si |
| Scintillator | GOS |
| Image size | 350mm×210mm |
| Pixel matrix | 2560×1536 |
| Pixel pitch | 139μm |
| A/D conversion | 16bit |
| Space solution | 3.6LP/mm |
| Captured image time | 1s(wired)/2.5s(wireless) |
| Energy of X-rays | 40 - 450kV |
| Weight | 2.9kg |
| Working environment | 5 - 35℃, 10 - 75%RH |
| Input voltage | 100 - 300kV |
| Tube current | 5mA |
| Focus size | 2.5×2.5mm |
| Radiation angle | 40° |
| Sensitivity | ≤1.5% |
| Film density | D>1.5 |
| Max.penetration by film | 50mm(Fe) |
