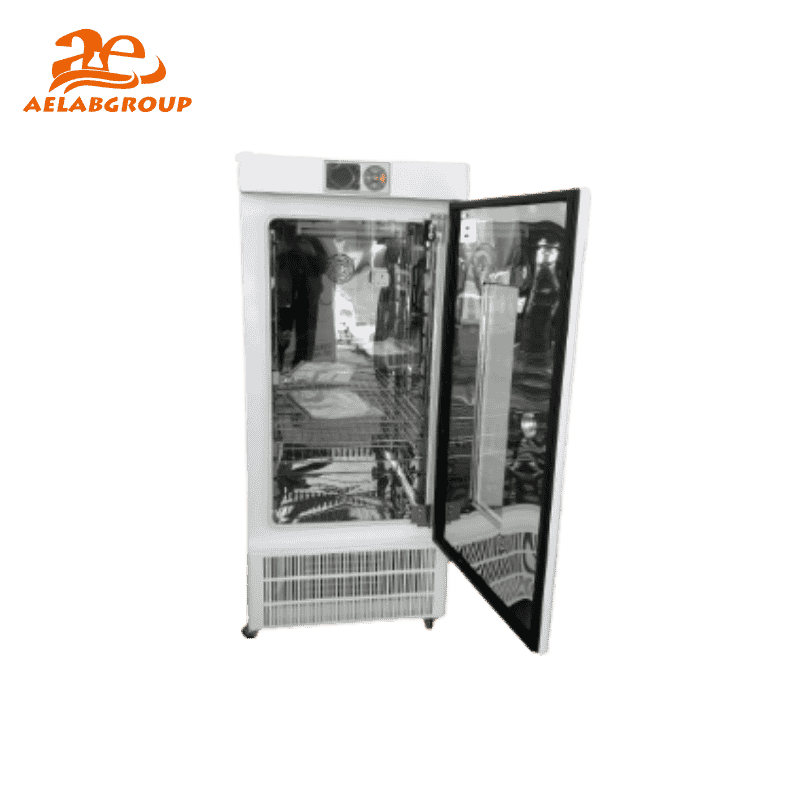

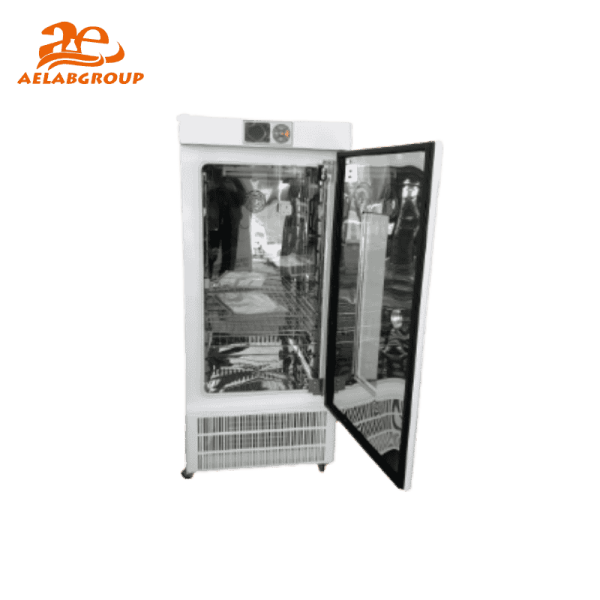

The AELAB Cooling Incubator LBI Series ensures safe, reproducible incubation even at high ambient temperatures. Designed for stable and precise thermal control, it provides optimal conditions for microbial, biochemical, and material testing processes. The unit features a high-quality compressor, automatic hot/cold control, and advanced microprocessor temperature management with large LCD display.
Its stainless-steel inner chamber and adjustable shelves allow flexible sample placement, while forced-air convection guarantees uniform temperature distribution throughout the chamber. The double-door system with tempered-glass inner door provides excellent visibility and insulation for consistent operation.
The LBI Series chamber is fabricated from polished Stainless Steel with a powder-coated exterior housing for durability and easy maintenance. It incorporates a tempered-glass observation door, magnetic sealing, and adjustable moveable shelves. The lighting bar inside the chamber improves observation during incubation. The integrated fan-forced convection maintains uniform temperature, while leakage protection and spare mechanical thermostat ensure safe and continuous operation.
The AELAB LBI Series employs a microprocessor-based temperature controller that regulates heating and cooling via an imported compressor system. The system maintains a precise temperature range of 0 °C to 60 °C, with stability of ±0.5 °C during heating and ±1 °C during cooling. Real-time temperature and timing data are displayed on an LCD screen, while an RS485 interface supports computer connection for monitoring and data recording.
The LBI Series supports RS485 communication for direct PC connectivity and data output. Temperature and time data can be transmitted to computer systems or optional printers for documentation. GLP-compatible export formats support laboratory compliance and traceability.
| Model | Specifications |
|---|---|
| LBI-80 | 80 L capacity, 0–60 °C range, 180 W, 2 / 8 grids |
| LBI-150 | 150 L capacity, 250 W, 3 / 13 grids, 45×42×85 cm chamber |
| LBI-200 | 200 L capacity, 300 W, 3 / 15 grids, 48×45×100 cm chamber |
| LBI-250 | 250 L capacity, 350 W, 3 / 16 grids, 48×49×107 cm chamber |
| LBI-300 | 300 L capacity, 400 W, 3 / 18 grids, 52×50×117 cm chamber |
| LBI-400 | 400 L capacity, 550 W, 3 / 20 grids, 58×54×127 cm chamber |
The AELAB Cooling Incubator LBI Series is ideal for biological cultivation, BOD testing, microbial incubation, plant tissue culture, material stability studies, and pharmaceutical quality control. It is also suitable for environmental research requiring precise low and medium temperature incubation.
All AELAB LBI Series incubators comply with ISO and CE safety requirements and are manufactured under GLP-aligned quality management systems. Each unit is factory calibrated and tested for temperature stability, uniformity, and electrical safety before shipment.
Specifications :
| Model | LBI-80 | LBI-150 | LBI-200 | LBI-250 | LBI-300 | LBI-400 |
|---|---|---|---|---|---|---|
| Chamber Volume | 80 L | 150 L | 200 L | 250 L | 300 L | 400 L |
| Temperature Range | 0 °C ~ 60 °C | |||||
| Display Resolution | 0.1 °C | |||||
| Temperature Stability | Heating: ±0.5 °C; Cooling: ±1 °C | |||||
| Temperature Uniformity | ±1 °C | |||||
| Timing Range | 1 ~ 9999 min | |||||
| Power Rating (W) | 180 | 250 | 300 | 350 | 400 | 550 |
| Refrigerant | R134a | |||||
| Power Supply | 220 V ± 10%, 50 Hz | |||||
| Chamber Size (W×D×H) cm | 40×37×55 | 45×42×85 | 48×45×100 | 48×49×107 | 52×50×117 | 58×54×127 |
| Exterior Size (W×D×H) cm | 54×59×107 | 59×64×137 | 59×66×152 | 62×70×159 | 66×71×169 | 72×75×179 |
| Package Size (W×D×H) cm | 70×73×126 | 75×78×156 | 75×80×171 | 78×84×178 | 82×85×188 | 88×90×198 |
| Grids (std./max.) | 2 / 8 | 3 / 13 | 3 / 15 | 3 / 16 | 3 / 18 | 3 / 20 |
| Model | LBI-80 | LBI-150 | LBI-200 | LBI-250 | LBI-300 | LBI-400 |
|---|---|---|---|---|---|---|
| Chamber Volume | 80 L | 150 L | 200 L | 250 L | 300 L | 400 L |
| Temperature Range | 0 °C ~ 60 °C | |||||
| Display Resolution | 0.1 °C | |||||
| Temperature Stability | Heating: ±0.5 °C; Cooling: ±1 °C | |||||
| Temperature Uniformity | ±1 °C | |||||
| Timing Range | 1 ~ 9999 min | |||||
| Power Rating (W) | 180 | 250 | 300 | 350 | 400 | 550 |
| Refrigerant | R134a | |||||
| Power Supply | 220 V ± 10%, 50 Hz | |||||
| Chamber Size (W×D×H) cm | 40×37×55 | 45×42×85 | 48×45×100 | 48×49×107 | 52×50×117 | 58×54×127 |
| Exterior Size (W×D×H) cm | 54×59×107 | 59×64×137 | 59×66×152 | 62×70×159 | 66×71×169 | 72×75×179 |
| Package Size (W×D×H) cm | 70×73×126 | 75×78×156 | 75×80×171 | 78×84×178 | 82×85×188 | 88×90×198 |
| Grids (std./max.) | 2 / 8 | 3 / 13 | 3 / 15 | 3 / 16 | 3 / 18 | 3 / 20 |
