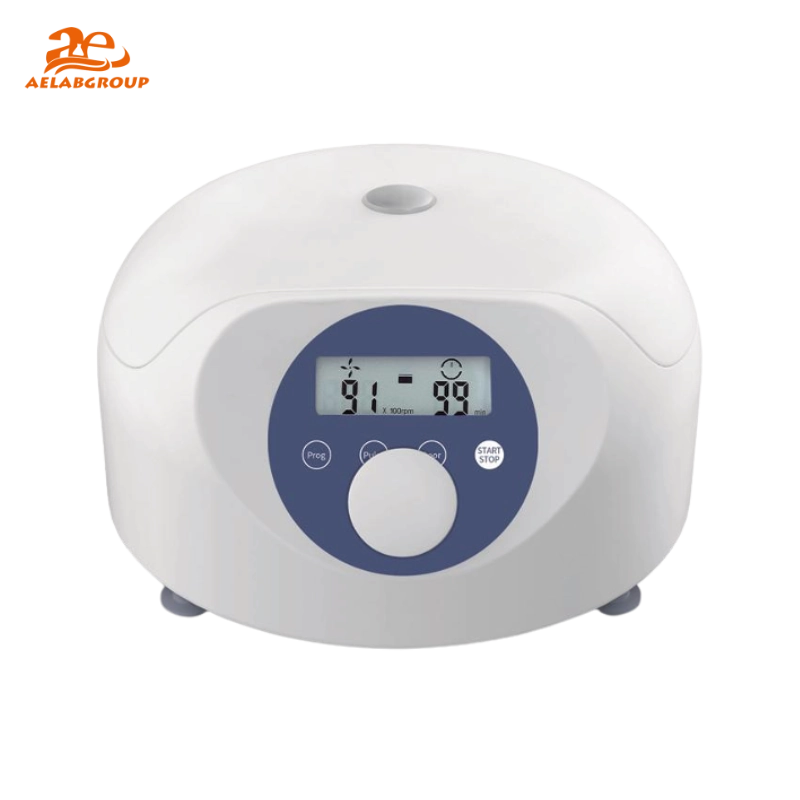

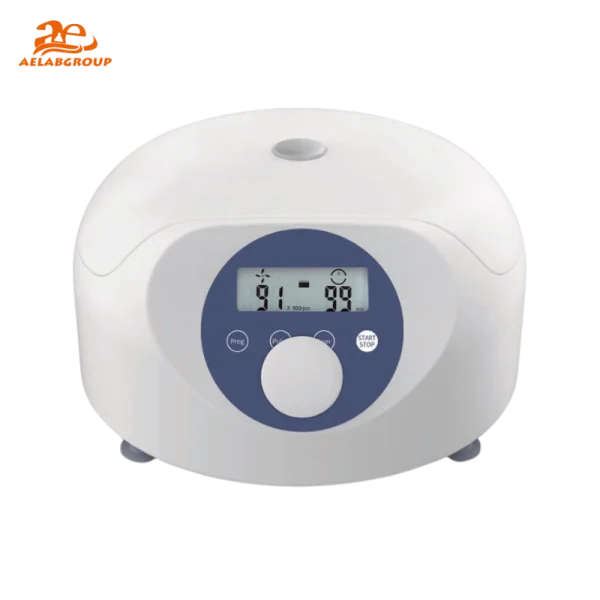

The AELAB D2012S High Speed Mini Centrifuge is engineered for rapid micro-sample processing across molecular biology, clinical diagnostics, and biochemical laboratories. Its compact frame, high-precision speed control, and quiet brushless motor ensure reliable and repeatable separation performance. Designed for DNA/RNA extraction, plasmid purification, and microsample analysis, the D2012S provides stable operation even under demanding laboratory conditions.
The instrument incorporates wide-voltage technology, maintaining stable speed accuracy despite fluctuations in electrical supply, and includes multiple protection features for safe routine use.
The AELAB D2012S features a durable housing with an integrated LCD interface for real-time speed, time, and RCF monitoring. Its Brushless DC Motor delivers fast acceleration, smooth deceleration, and long service life. The rotor chamber accommodates 0.2/0.5/1.5/2 mL microtubes (×12), optimized for high-efficiency sedimentation and molecular separation workflows.
The D2012S uses centrifugal force generated at speeds up to 15000 rpm (15100×g) to separate particles based on density. Microtubes are positioned symmetrically in the rotor, allowing heavier components to migrate outward while lighter materials remain near the axis. This enables efficient nucleic acid extraction, plasmid isolation, microorganism sedimentation, and biochemical fractionation.
The D2012S integrates easily into GLP-compliant laboratory workflows. Its LCD interface supports parameter tracking, and audible alerts enhance operational monitoring. The system is compatible with standard microtubes and fits into routine molecular and clinical processing pipelines.
| Model | Specifications |
|---|---|
| D2012S | 15000rpm max speed, 15100×g max RCF, Brushless DC motor, 0.2/0.5/1.5/2mL × 12 rotor, 6.2Kg |
The AELAB D2012S is manufactured under strict ISO and CE-aligned quality systems. Each centrifuge undergoes calibration verification, safety inspection, and functional testing to ensure consistent performance across all laboratory environments.
Specifications :
| Specifications | D2012S |
|---|---|
| Max.Speed | 15000rpm (300–15000rpm), increment:100rpm |
| Max.RCF | 15100×g |
| Speed Accuracy | ±20rpm |
| Rotor Capacity | 0.2/0.5/1.5/2mL × 12 |
| Run Time | 30s–99min |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door interlock, over-speed detection, over-temperature detection, automatic internal diagnosis |
| Display | LCD |
| Power | 100–240 V, 50/60 Hz; 70W |
| Noise Level | ≤65dB |
| Dimension (D × W × H) | 272mm × 260mm × 154mm |
| Weight | 6.2Kg |
| Other functions | Speed/RCF switch, short-time run function, sound-alert function |
| Specifications | D2012S |
|---|---|
| Max.Speed | 15000rpm (300–15000rpm), increment:100rpm |
| Max.RCF | 15100×g |
| Speed Accuracy | ±20rpm |
| Rotor Capacity | 0.2/0.5/1.5/2mL × 12 |
| Run Time | 30s–99min |
| Driving Motor | Brushless DC motor |
| Safety Devices | Door interlock, over-speed detection, over-temperature detection, automatic internal diagnosis |
| Display | LCD |
| Power | 100–240 V, 50/60 Hz; 70W |
| Noise Level | ≤65dB |
| Dimension (D × W × H) | 272mm × 260mm × 154mm |
| Weight | 6.2Kg |
| Other functions | Speed/RCF switch, short-time run function, sound-alert function |
