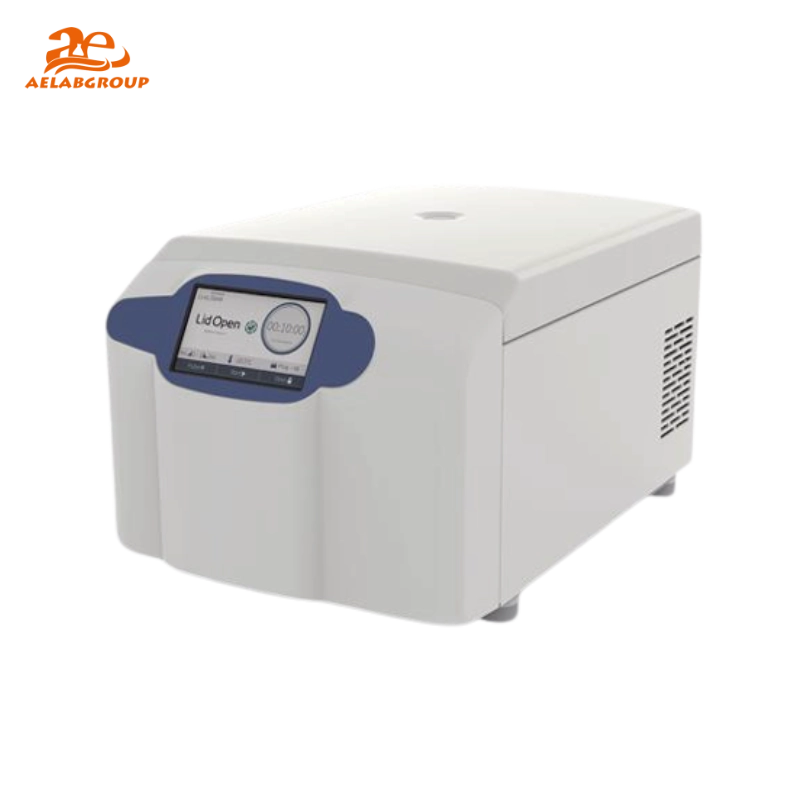

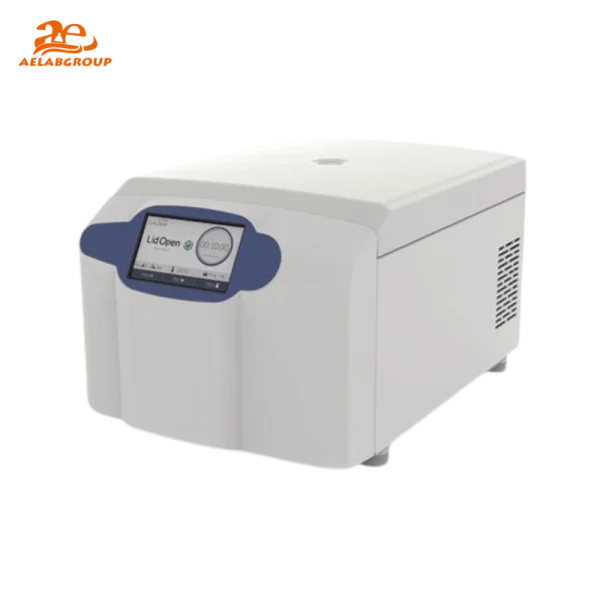

AELAB DG1616 / DG1616R High Speed Centrifuge | Advanced Sample Preparation System

The AELAB DG1616 High Speed Centrifuge and AELAB DG1616R High Speed Refrigerated Centrifuge provide advanced sample separation with high rotational speed, stable performance, and intuitive control functions. Equipped with a modern touch-screen interface and brushless DC motor, the series enables reliable separation workflows across clinical, pharmaceutical, and research laboratories.

The DG1616R integrates a precision refrigeration system that maintains temperatures from -10°C to 40°C, protecting sensitive biological and temperature-dependent samples during high-speed operation. These centrifuges offer wide rotor compatibility, intelligent imbalance detection, and adjustable acceleration profiles for reproducible and safe sample handling.

⚙️ Design & Construction

The DG1616 Series features a durable chassis engineered for high mechanical stability during 16,000 rpm operation. Both models utilize a high-torque brushless DC motor that ensures consistent acceleration, low noise, and long service life. The DG1616R incorporates an integrated refrigeration module delivering programmable temperature control between -10°C and 40°C. A full-color touch-screen provides visual workflow navigation, while the rotor chamber supports multiple adapters for tubes up to 400mL.

🔬 Working Principle / Testing Method

The centrifuges generate centrifugal force up to 28,621 × g, enabling efficient separation of cellular components, biomolecules, suspensions, and chemical mixtures. Speed is adjustable in 1 rpm increments, and RCF steps are set at 1 × g for precise control. The system offers 9 acceleration and 9 deceleration stages, HOLD mode for continuous runs, and up to 100 stored programs for rapid method recall.

💡 Key Advantages

• High-speed operation up to 16,000 rpm for advanced separation studies
• Refrigerated model (DG1616R) protects thermally sensitive biological samples
• Low-noise brushless DC drive ensures <70 dB operation for quiet labs

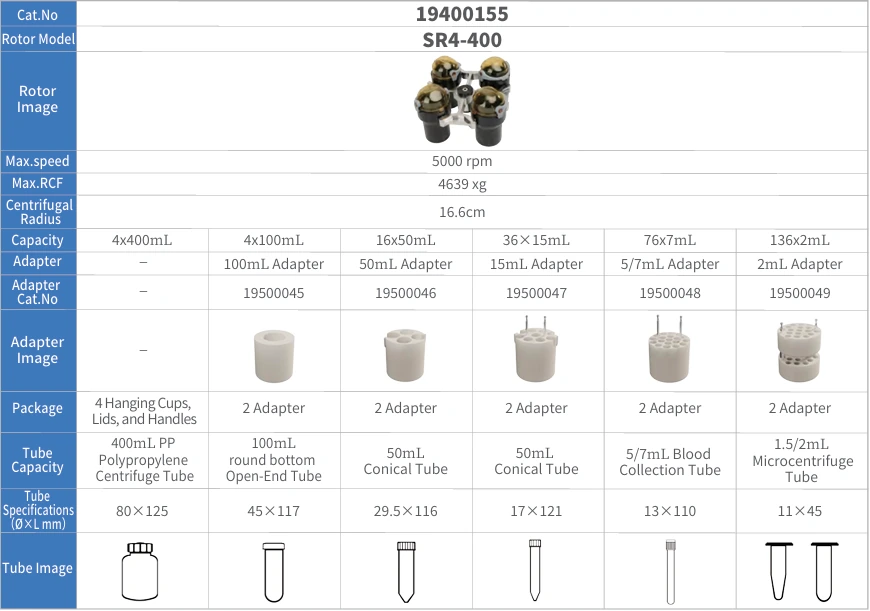

• Large 4 × 400mL capacity supporting multiple rotor configurations
• Precise RCF control for analytical reproducibility
• 100 programmable methods supporting standardized laboratory workflows

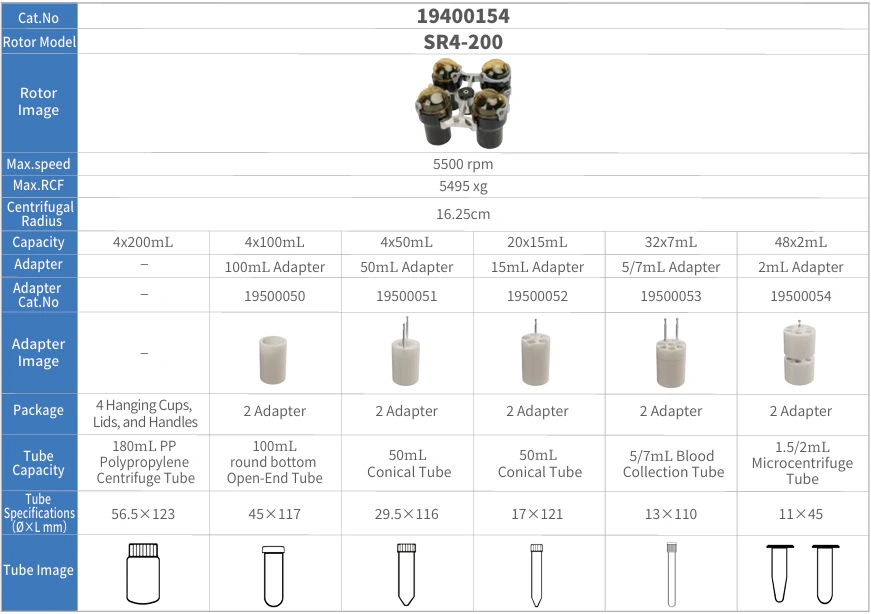

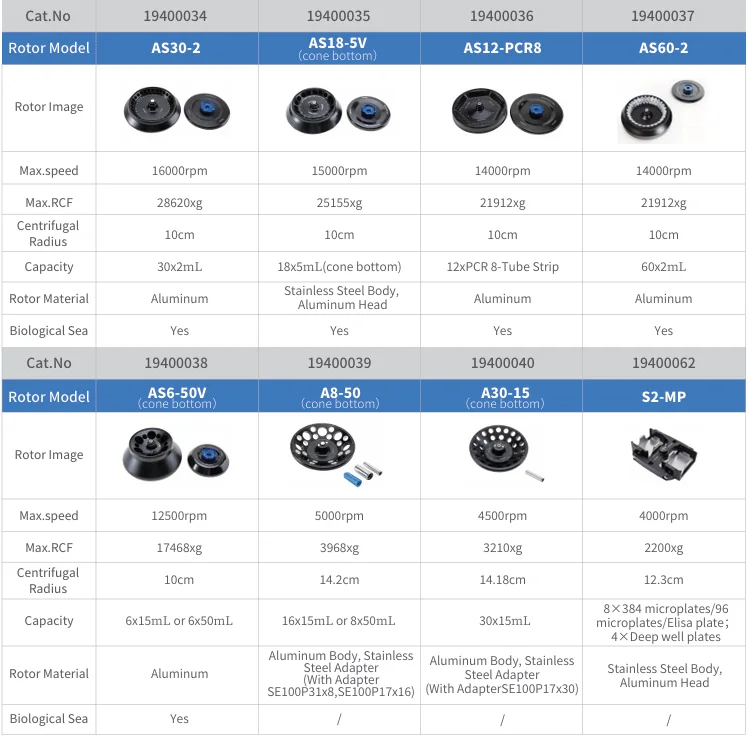

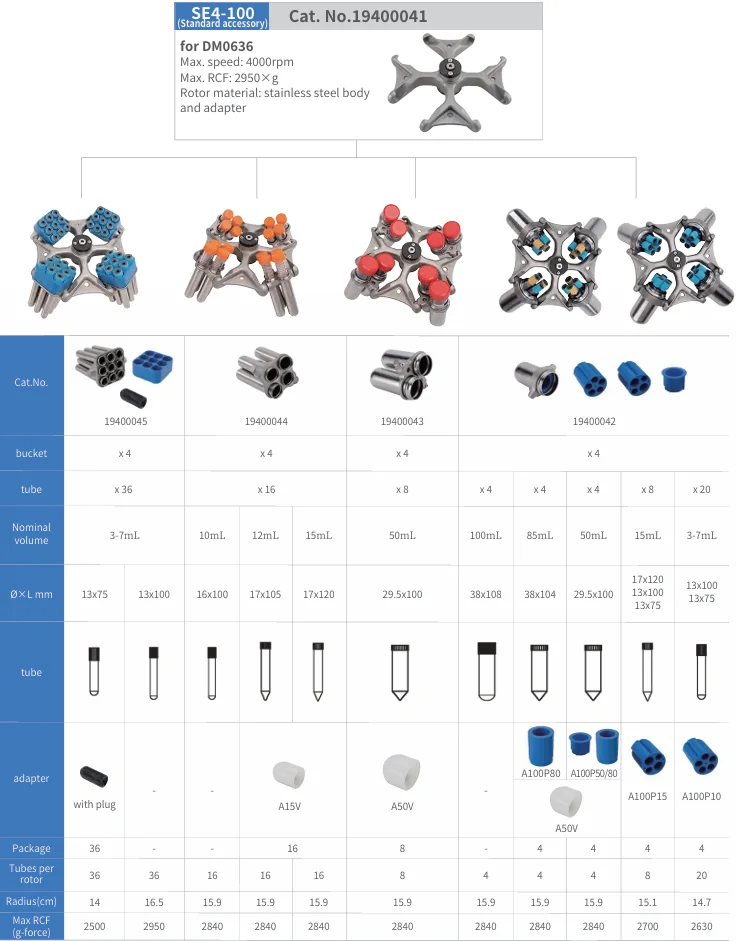

• Wide rotor compatibility for tubes, PCR plates, and microplates

🔗 Connectivity & Integration

The DG1616 Series supports digital programmability, onboard method storage, and interface-based configuration. Data settings can be adjusted and stored through the integrated touch panel, providing GLP-oriented traceability for repeat studies.

🧠 Model Insight

🧪 Testing Applications

The DG1616 Series supports separation workflows in biological and life sciences, pharmaceutical development, chemical analysis, environmental testing, food and agricultural research, soil and mineral studies, and microbiology. Its high-speed capability and wide rotor compatibility make it suitable for sample clarification, component isolation, nucleic acid preparation, protein precipitation, and biochemical assays.

Compliance & Quality Assurance

The DG1616 Series is manufactured under strict AELAB quality control procedures and conforms to CE and GLP-compliant operational standards. Brushless DC motor drive, imbalance detection, and safety interlocks ensure long-term reliability and operational safety.
