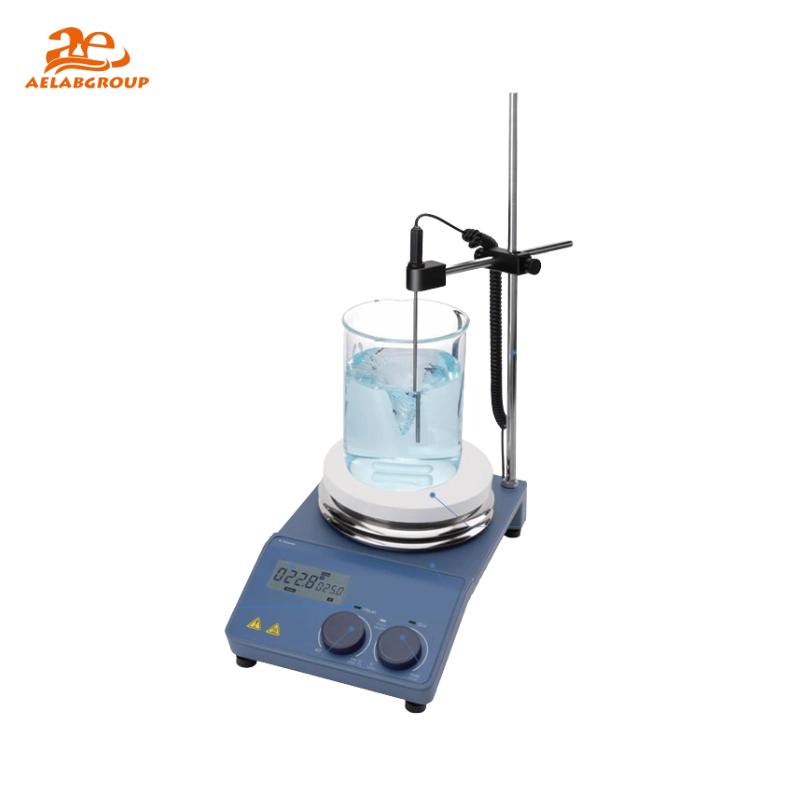

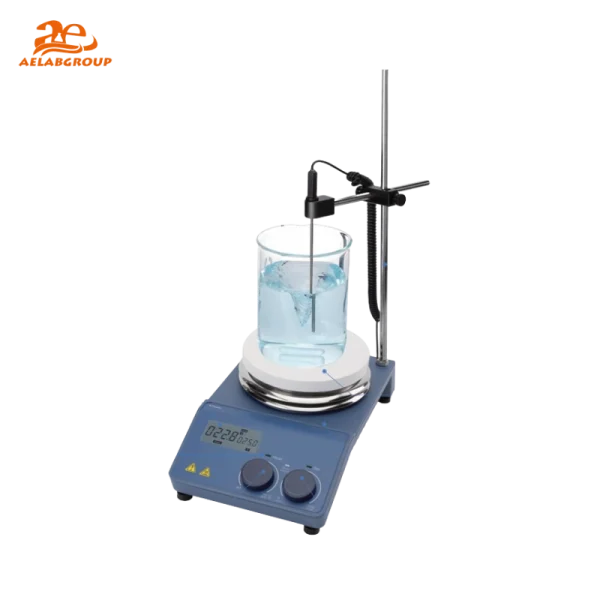

The AELAB MS-H-ProM LCD Digital Enhanced Magnetic Hotplate Stirrer with Timer is a high-performance stirring and heating system designed for precise temperature control, smooth mixing, and long-duration operation. With its LCD interface, ceramic-coated work plate, and advanced safety design, it supports reliable and efficient daily laboratory workflows.
The MS-H-ProM Magnetic Hotplate Stirrer uses a high-strength magnetic field and enhanced magnets to ensure stable rotation of the magnetic stir bar. The ceramic-coated plate heats samples uniformly, while the controller regulates speed, temperature, and timing with high accuracy. The integrated PT1000 sensor continuously monitors sample temperature for reliable and reproducible heating.
The AELAB MS-H-ProM features a durable Aluminum work plate with a high-resistance Ceramic coating that offers rapid heating, uniform thermal distribution, and excellent chemical durability. A Brushless DC motor delivers long-life operation, low noise, and stable torque for both gentle mixing and high-intensity stirring. Flame-retardant metal housing ensures compliance with modern laboratory safety standards.
The instrument uses a magnetic coupling system where strong enhanced magnets drive an internal stir bar inside the vessel. Temperature control operates via a precision measuring loop that includes an embedded plate sensor and an external PT1000 probe for direct liquid measurement. The LCD interface displays real-time speed, plate temperature, and timer status, enabling accurate adjustments for reproducible stirring and heating conditions.
The MS-H-ProM includes an RS232 interface for GLP-compliant data transfer and PC connectivity. The system supports remote monitoring, parameter logging, and integration into automated laboratory workflows.
| Model | Specifications |
|---|---|
| MS-H-ProM | Ø135mm plate, 100–1500rpm, 340°C max temperature, PT1000 probe, 20L stirring capacity, 2.8kg |
The AELAB MS-H-ProM supports a broad range of laboratory and industrial applications, including:
The instrument conforms to ISO, CE, and GLP laboratory quality standards. Each AELAB MS-H-ProM undergoes calibrated performance testing, electrical safety compliance checks, and long-duration operational validation to ensure consistent accuracy and durability.
Specifications :
| Specifications | MS-H-ProM |
|---|---|
| Work plate dimension | Ø135mm (5 inch) |
| Work plate material | Aluminum with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity (H₂O) | 20L |
| Max. magnetic bar (length) | 80mm |
| Motor rating output | 15W |
| Speed range | 100–1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temperature – 340°C, increment 1°C |
| Temperature control accuracy | ±1°C(<100°C), ±1%(>100°C) |
| Overheating protection | 420°C |
| Temperature display resolution | 0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| “Hot” warning | 50°C |
| Data connection | RS232 |
| IP protection class | IP21 |
| Timer range | 1min–99h59min |
| Motor rating output | 10W |
| Total power | 720W |
| Heating power | 600W |
| Voltage, Frequency | 100–120V/200–240V, 50/60Hz |
| Dimensions (W×D×H) | 160×280×100mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5–40°C, 80% RH |
| Specifications | MS-H-ProM |
|---|---|
| Work plate dimension | Ø135mm (5 inch) |
| Work plate material | Aluminum with ceramic coating |
| Motor type | Brushless DC motor |
| Stirring positions | 1 |
| Max. stirring quantity (H₂O) | 20L |
| Max. magnetic bar (length) | 80mm |
| Motor rating output | 15W |
| Speed range | 100–1500rpm |
| Speed display | LCD |
| Temperature display | LCD |
| Heating temperature range | Room temperature – 340°C, increment 1°C |
| Temperature control accuracy | ±1°C(<100°C), ±1%(>100°C) |
| Overheating protection | 420°C |
| Temperature display resolution | 0.1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) |
| “Hot” warning | 50°C |
| Data connection | RS232 |
| IP protection class | IP21 |
| Timer range | 1min–99h59min |
| Motor rating output | 10W |
| Total power | 720W |
| Heating power | 600W |
| Voltage, Frequency | 100–120V/200–240V, 50/60Hz |
| Dimensions (W×D×H) | 160×280×100mm |
| Weight | 2.8kg |
| Permissible ambient temperature and humidity | 5–40°C, 80% RH |
