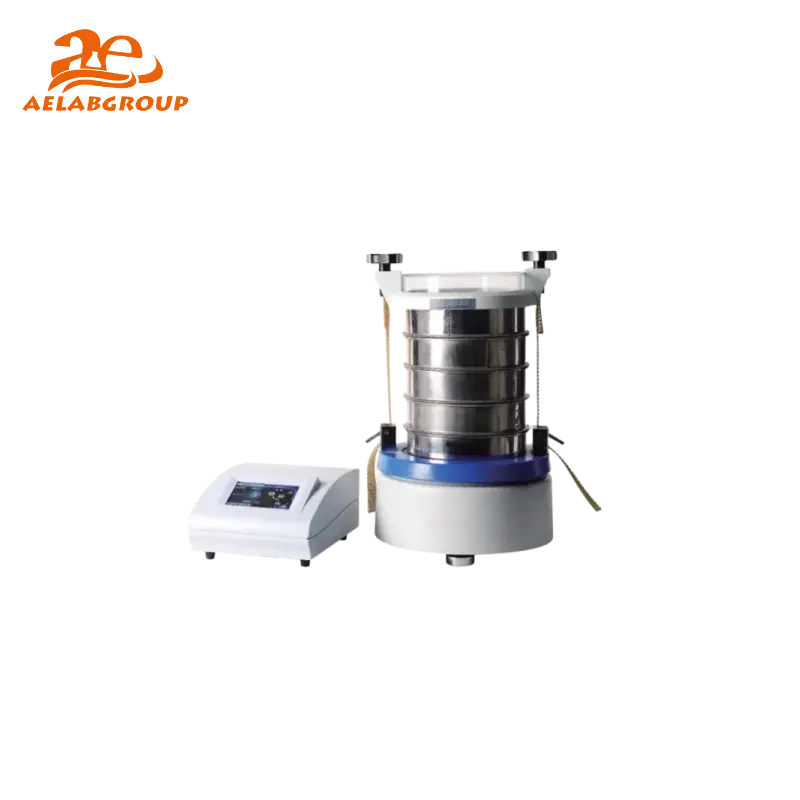

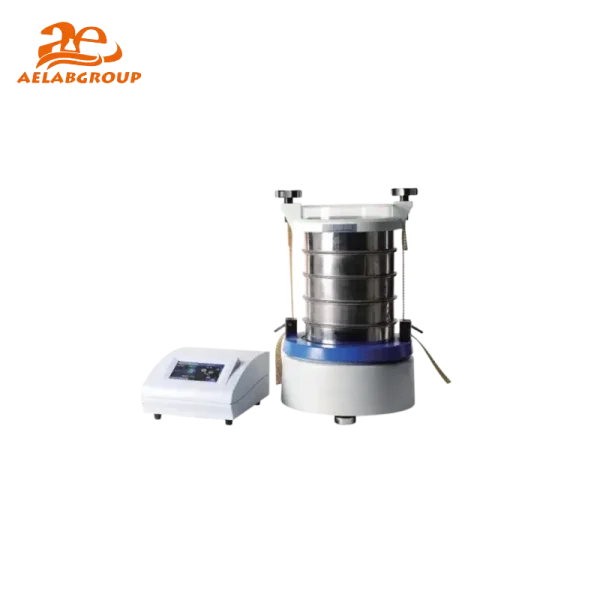

The AELAB Digital Shaker WQS-S is a high-performance laboratory shaker designed for precise particle analysis and sample mixing. Featuring digital control of amplitude and frequency, it ensures consistent, reproducible results across various applications in pharmaceuticals, food, cosmetics, and research laboratories. Its efficient design reduces manual workload and enhances laboratory productivity.
A digital shaker is a laboratory instrument designed to mix or agitate samples with controlled, consistent shaking motions. Equipped with a digital interface, it allows users to precisely set and monitor speed, time, and sometimes temperature. This precision ensures reproducibility and uniform mixing. Digital shakers are widely used in scientific research, pharmaceuticals, and biological studies for tasks such as mixing chemical solutions, suspending cell cultures, and homogenizing samples. The device can accommodate various types of containers, such as flasks, tubes, and beakers, making it versatile for different laboratory applications.
Features:
WQS-S Digital Shaker is a new generation of laboratory automatic shaker, designed and developed by our factory. It can be widely used in pharmaceutical, metallurgy, food, cosmetics and other industries to perform particle analysis. It has following features, such as, simple operation, no moving parts, and electronic control of amplitude and frequency. The level of performance is equivalent to the shaker manufactured by German FRITSCH. Compared with the traditional manual shaker, it can greatly reduce the work intensity and improve efficiency. It is a must-have laboratory shaker in the particle analysis industry.
The AELAB WQS-S Digital Shaker operates through electronically controlled vibrations that deliver precise and uniform shaking. Users can set vibration frequency and amplitude via the digital interface, enabling fine adjustments for subtle, intermittent, or continuous shaking. With programmable modes and memory retention, it provides reproducible results for particle size analysis, sample homogenization, and suspension preparation.
German-Equivalent Performance: Matches the reliability of FRITSCH shakers.
Digital Precision: Electronic control ensures accuracy in amplitude and frequency settings.
User-Friendly: Easy operation with minimal manual intervention.
Efficiency Boost: Reduces workload compared to traditional manual shakers.
Programmable Modes: Three shaking modes with memory retention for repeatable experiments.
Durability: Built with robust materials for long-term use.
Educational & Training Labs: WQS-S offers easy operation for teaching basic mixing and particle analysis.
Research Institutes: Ideal for precise suspension preparation, chemical analysis, and small-scale R&D projects.
Quality Control Labs: Ensures consistent results in pharmaceutical, metallurgy, and cosmetic testing.
Industrial Applications: Suitable for routine sample processing in food and materials industries.
Pharmaceutical research and quality control
Food and beverage testing laboratories
Cosmetics formulation and stability studies
Metallurgy and particle size distribution analysis
University and teaching laboratories

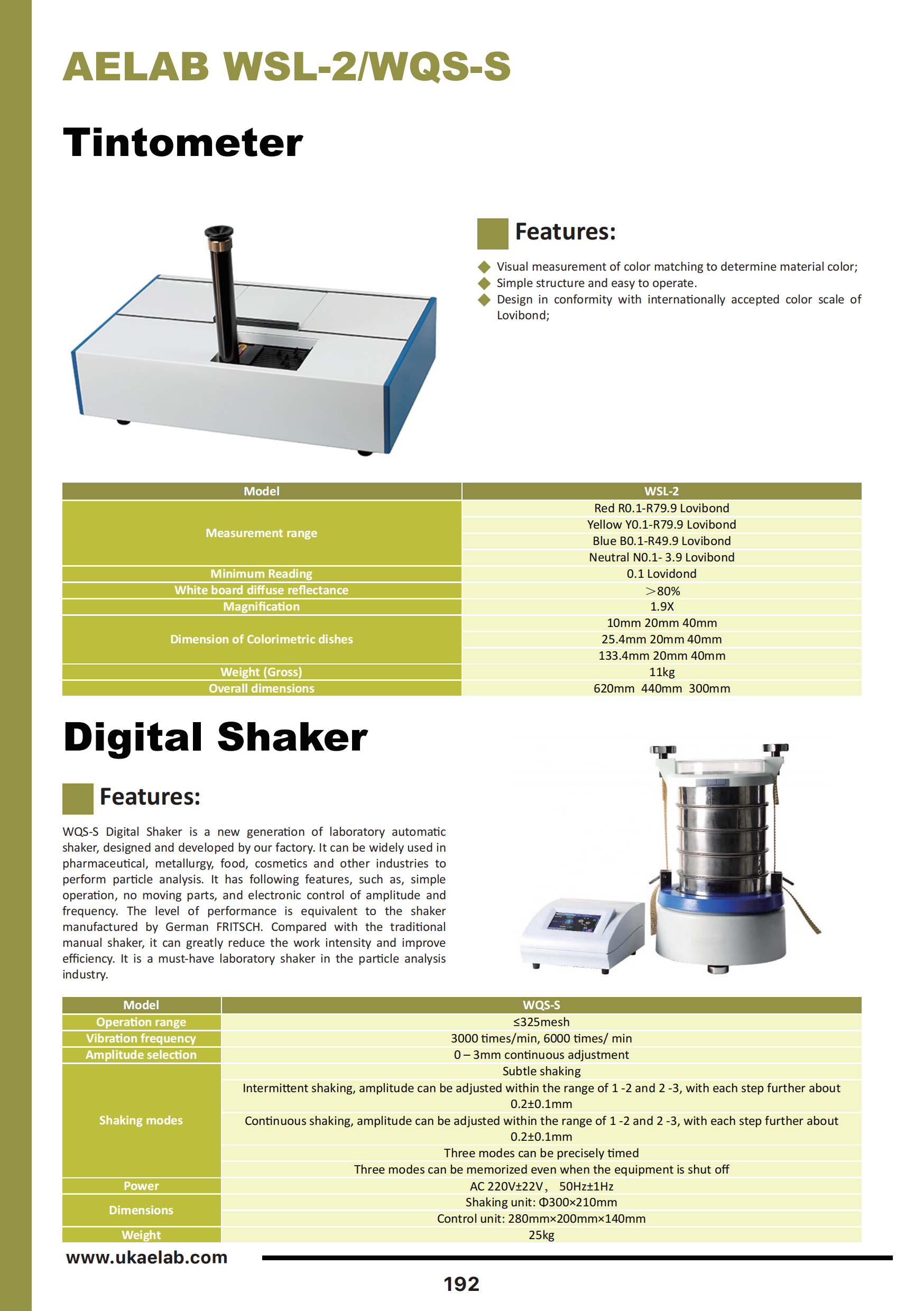

Specifications :
| Model | WQS-S |
| Operation range | ≤325mesh |
| Vibration frequency | 3000 times/min, 6000 times/ min |
| Amplitude selection | 0 – 3mm continuous adjustment |
| Shaking modes | Subtle shaking |
| Intermittent shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about 0.2±0.1mm | |
| Continuous shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about 0.2±0.1mm | |
| Three modes can be precisely timed | |
| Three modes can be memorized even when the equipment is shut off | |
| Power | AC 220V±22V, 50Hz±1Hz |
| Dimensions | Shaking unit: Φ300×210mm |
| Control unit: 280mm×200mm×140mm | |
| Weight | 25kg |
| Model | WQS-S |
| Operation range | ≤325mesh |
| Vibration frequency | 3000 times/min, 6000 times/ min |
| Amplitude selection | 0 – 3mm continuous adjustment |
| Shaking modes | Subtle shaking |
| Intermittent shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about 0.2±0.1mm | |
| Continuous shaking, amplitude can be adjusted within the range of 1 -2 and 2 -3, with each step further about 0.2±0.1mm | |
| Three modes can be precisely timed | |
| Three modes can be memorized even when the equipment is shut off | |
| Power | AC 220V±22V, 50Hz±1Hz |
| Dimensions | Shaking unit: Φ300×210mm |
| Control unit: 280mm×200mm×140mm | |
| Weight | 25kg |
