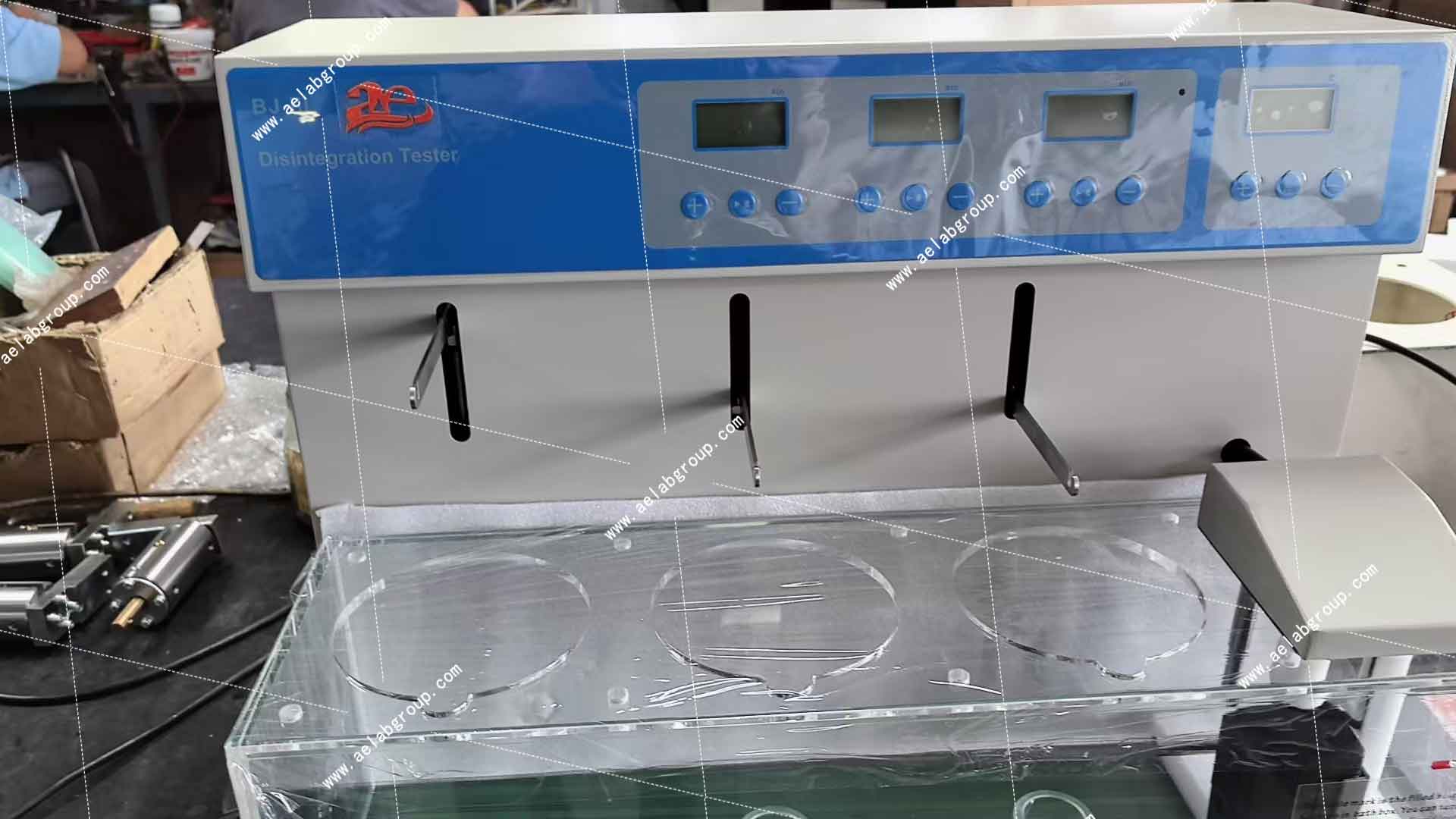

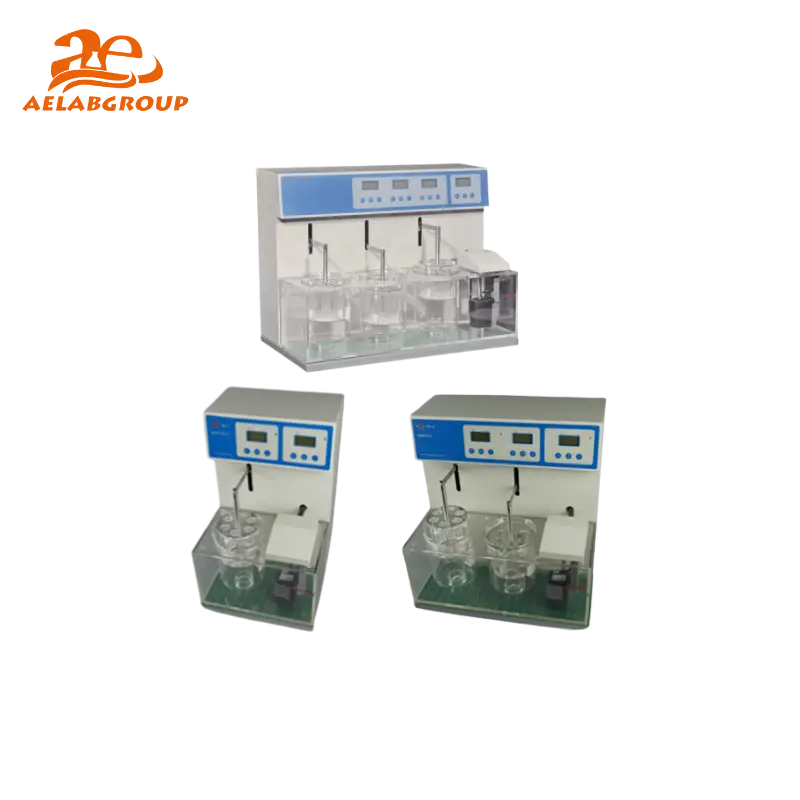

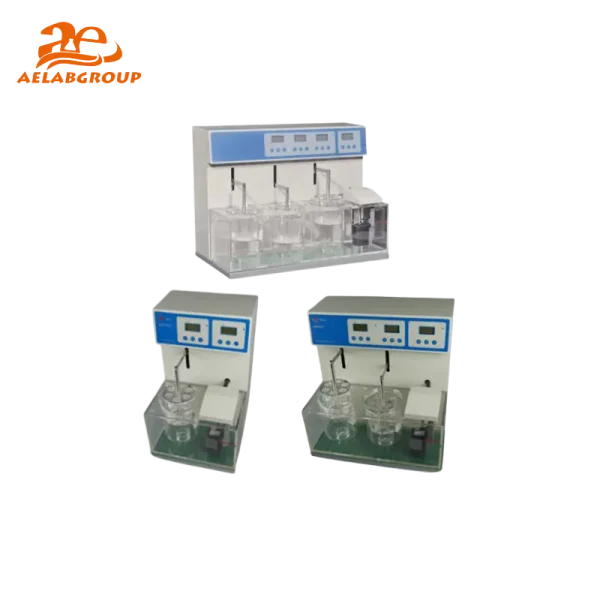

The AELAB BJ Series Disintegration Tester is designed for accurate disintegration analysis of solid dosage forms in pharmaceutical laboratories. It incorporates microprocessor control, LCD display, and stable temperature monitoring to ensure reliable testing performance.
Each beaker in the BJ Series can operate independently, enabling flexible workflows and simultaneous testing of multiple samples. The system uses a water-circulating bath to stabilize temperature with the assistance of a magnetic pump.

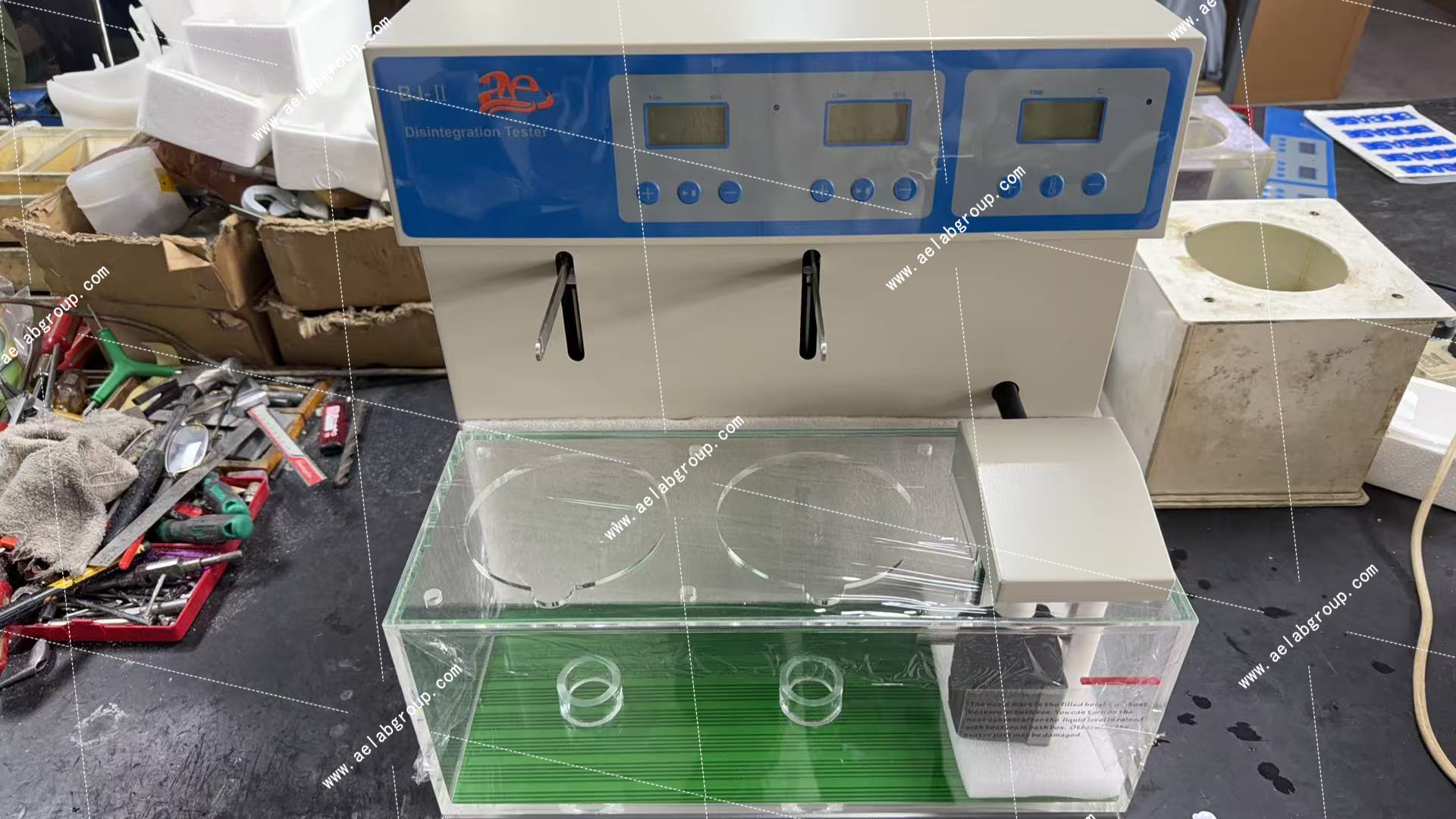

The AELAB BJ Series employs a robust structure with precision-made Stainless Steel baskets and paddles, ensuring chemical resistance and long service life. The system integrates a clear LCD interface for real-time monitoring of test parameters. The water bath ensures uniform temperature distribution, while the mechanical lifting system maintains a consistent basket lifting height of 55±1 mm.
The disintegration tester operates by immersing tablets in controlled-temperature water while oscillating baskets at 30~31 rpm. The BJ Series quantifies disintegration time by continuously lifting baskets through the water medium at the specified height and spacing. Temperature stability is maintained within ±0.3°C, supporting a compliant USP/EP disintegration testing environment.
The BJ Series includes microprocessor-based internal control for accurate parameter regulation. Temperature, timing, and operational states are displayed clearly on the LCD panel. Data can be recorded manually for GLP documentation and compliance workflows.
| Model | Specifications |
|---|---|
| BJ-I | 1 basket; 260*300*440 mm; 30~31 rpm; 55±1 mm lifting |
| BJ-II | 2 baskets; 400*320*440 mm; same operating parameters |
| BJ-III | 3 baskets; 540*320*440 mm; same operating parameters |
| BJ-IV | 4 baskets; 400*320*440 mm; same operating parameters |
The AELAB BJ Series is used in pharmaceutical production and R&D laboratories for USP/EP tablet disintegration testing, quality control verification, formulation development, and compliance documentation for solid oral dosage forms.
The BJ Series follows ISO and GLP-aligned manufacturing protocols, ensuring traceable calibration and stable operation for regulated laboratory environments. Temperature, timing, and mechanical accuracy meet analytical testing requirements for pharmaceutical compliance.
Specifications :
| Model | BJ-I | BJ-II | BJ-III | BJ-IV |
|---|---|---|---|---|
| Basket | 1 pc | 2 pcs | 3 pcs | 4 pcs |
| Speed Range | 30~31 rpm | |||
| Basket Lifting Height | 55±1 mm | |||
| Minimum Spacing | 25±2 mm | |||
| Mesh Size | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) |
| Temp. Range | RT~50°C | |||
| Temp. Precision | ±0.3°C | |||
| Timing Range | 1~900 min | |||
| Time Precision | ±0.5 min | |||
| Power Consumption | 600 W | |||
| Power Supply | AC220V/110V±10%, 50/60 Hz | |||
| External Size (W*D*H) | 260*300*440 mm | 400*320*440 mm | 540*320*440 mm | 400*320*440 mm |
| Model | BJ-I | BJ-II | BJ-III | BJ-IV |
|---|---|---|---|---|
| Basket | 1 pc | 2 pcs | 3 pcs | 4 pcs |
| Speed Range | 30~31 rpm | |||
| Basket Lifting Height | 55±1 mm | |||
| Minimum Spacing | 25±2 mm | |||
| Mesh Size | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) | Standard 2 mm (0.425 mm, 1 mm, 710 UM apertures available) |
| Temp. Range | RT~50°C | |||
| Temp. Precision | ±0.3°C | |||
| Timing Range | 1~900 min | |||
| Time Precision | ±0.5 min | |||
| Power Consumption | 600 W | |||
| Power Supply | AC220V/110V±10%, 50/60 Hz | |||
| External Size (W*D*H) | 260*300*440 mm | 400*320*440 mm | 540*320*440 mm | 400*320*440 mm |
