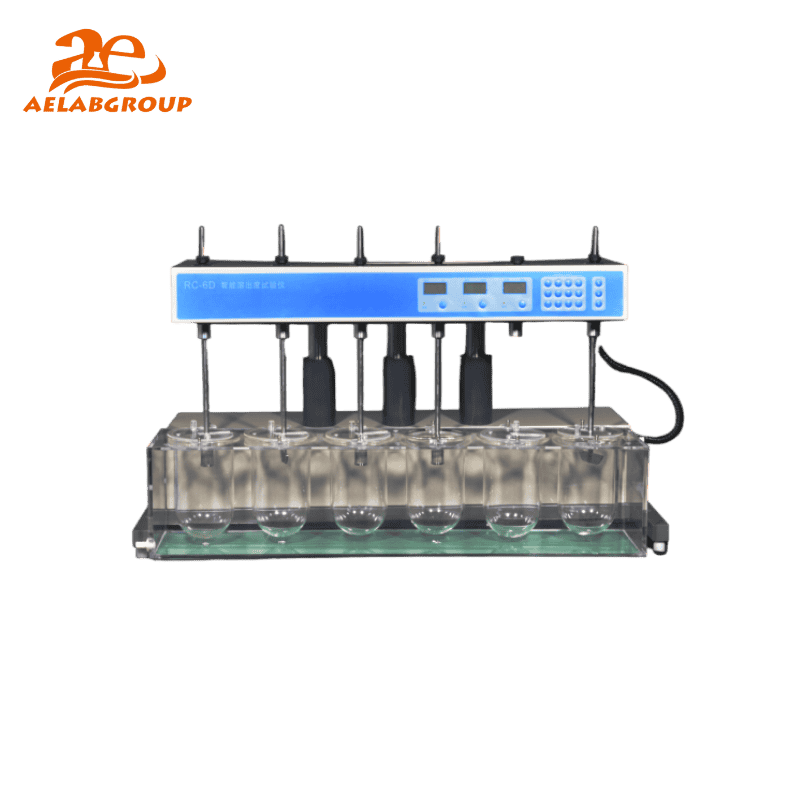

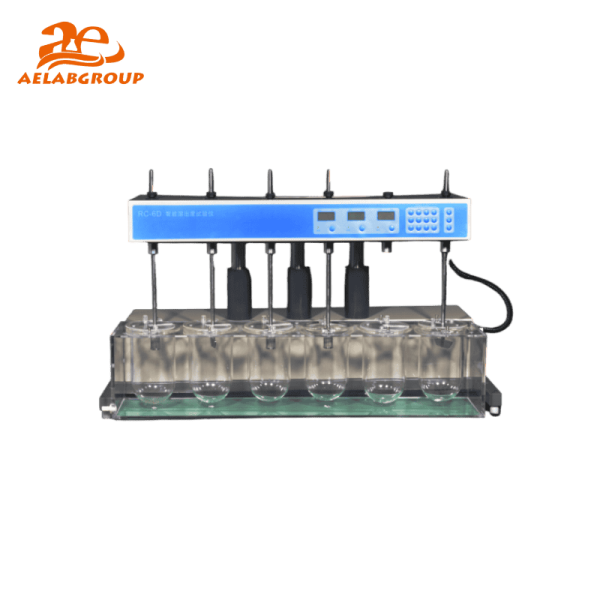

The AELAB RC-6D Dissolution Tester is designed for detecting the velocity and extent of pharmic dissolution from tablets, capsules, and related solid dosage forms in a specified medium. It conforms to the Chinese codex and industry standard Dissolution Tester JJG/T 20105-2007.
The instrument features six vessels and six poles arranged in a single line with an electric lift. The paddle units and basket assemblies are manufactured from imported Stainless Steel SUS316L. An internal magnetism-pumped circulating water system ensures uniform heating, enabling the bath liquid to maintain an equal and stable temperature.
The AELAB RC-6D utilizes a rigid, corrosion-resistant frame engineered to support stable, repeatable dissolution testing. Each vessel is positioned in alignment for uniform hydrodynamics. The paddle and basket components are fabricated from Stainless Steel SUS316L for long-term chemical resistance. A magnetism-pumped water circulation system distributes heat consistently throughout the bath, maintaining temperature stability within ±0.3 °C. The electric lift system provides smooth, controlled movement of the head assembly.
The RC-6D operates based on standardized paddle and basket dissolution methods. The MPU-based control module regulates rotational speed, temperature, preset timing points, and automated sequences. Dissolution media temperature is elevated and stabilized up to +45.0 °C, ensuring accurate simulation of physiological conditions. Speed is controlled between 20–200 rpm with ±1 rpm accuracy, with real-time digital display of preset and measured values. The system supports auto-test, auto-diagnosis, and auto-alarm functionalities for GLP-compliant operation.
The AELAB RC-6D features digital control with LCD display and internal storage for dissolution parameters. Data can be displayed alternately in real time. The system is compatible with external printing and data logging solutions when integrated with laboratory information systems.
| Model | Specifications |
|---|---|
| RC-6D | 20–200 rpm speed range; ±1 rpm accuracy; +45.0 °C max temperature; ±0.3 °C stability; (1–999) min timing; 220V/50Hz/1200W or 110V/60Hz/1200W; (960×320×480) mm³ |
The AELAB RC-6D Dissolution Tester is suitable for pharmaceutical development, QC release testing, formulation research, and regulatory dissolution profiling. Typical applications include dissolution performance studies of tablets, capsules, coated formulations, sustained-release products, and solid dosage forms requiring standardized paddle or basket testing.
The RC-6D complies with national and industry standards, including Chinese Codex / 2015 and Dissolution Tester JJG/T 20105-2007. All components follow AELAB quality protocols for calibration accuracy, GLP traceability, stability testing, and long-term equipment reliability.
Specifications :
| Speed range | (20~200)rpm |
| Speed accuracy | ±1rpm |
| Temperature range ambient to | +45.0℃ |
| Temperature Stability | ±0.3℃ |
| Preset timing nine points | (1~999)min |
| Time accuracy | ±0.5mm |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ±1.0mm |
| Power | 220V/50Hz/1200W or 110V/60Hz/1200W |
| Dimension | (960*320*480)mm3 |
| Speed range | (20~200)rpm |
| Speed accuracy | ±1rpm |
| Temperature range ambient to | +45.0℃ |
| Temperature Stability | ±0.3℃ |
| Preset timing nine points | (1~999)min |
| Time accuracy | ±0.5mm |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ±1.0mm |
| Power | 220V/50Hz/1200W or 110V/60Hz/1200W |
| Dimension | (960*320*480)mm3 |
